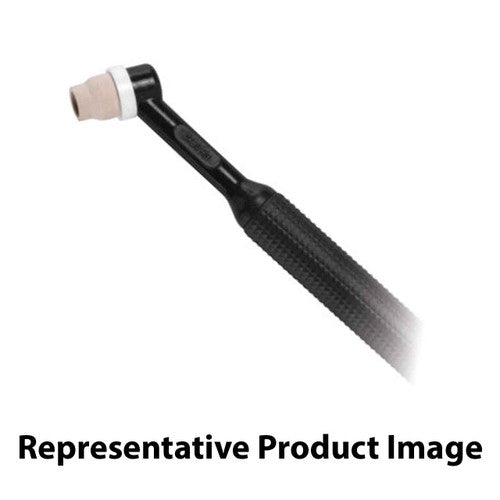

CK Worldwide CK825HSF 80 Amp Gas-Cooled TIG Torch - Rigid Head, 25' Super-Flex Cable

The CK825HSF delivers reliable 80-amp performance with rigid head precision for demanding TIG applications. This gas-cooled torch operates at 100% duty cycle, making it ideal for continuous production welding in fabrication shops and manufacturing environments.

Built with CK Worldwide's proven 8 Series design, this torch features a rigid head configuration that provides superior arc stability and precise tungsten positioning. The 25-foot Super-Flex cable offers exceptional flexibility while maintaining durability in demanding shop conditions. Gas cooling ensures efficient heat dissipation during extended welding sessions.

• Amperage Rating: 80 amps at 100% duty cycle
• Cooling Type: Gas-cooled for maximum heat dissipation
• Head Style: Rigid for stable, precise welding
• Cable Length: 25 feet Super-Flex for enhanced maneuverability
• Cable Configuration: Single-piece construction
• Torch Length: 8-1/4 inches (20.9cm)
• Weight: 2-1/4 oz (64gm) head assembly
• Valve: No valve included for streamlined operation

Compatible Consumables

• 8C40 — .040" (1.0mm) Collet
• 8C116 — 1/16" (1.6mm) Collet
• 8C332 — 3/32" (2.4mm) Collet
• 8CB40 — .040" (1.0mm) Collet Body
• 8CB116 — 1/16" (1.6mm) Collet Body
• 8CB332 — 3/32" (2.4mm) Collet Body
• 8A4 — #4 (1/4" 6.4mm) Alumina Cup
• 8A5 — #5 (5/16" 8.0mm) Alumina Cup
• 8A6 — #6 (3/8" 9.6mm) Alumina Cup
• 8GL116 — 1/16" Gas Lens

Compatible with CK Worldwide's complete line of 8 Series consumables and accessories. This torch integrates seamlessly with standard TIG welding power sources equipped with appropriate amperage capacity and gas flow controls.
