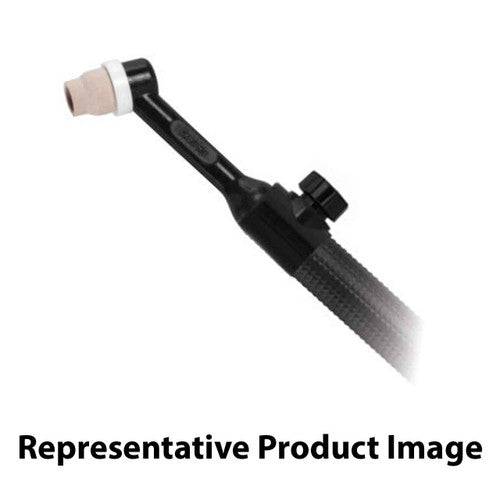

CK Worldwide CK825VH 80 Amp Gas-Cooled TIG Torch with Valve, 25' Cable

The CK 825VH delivers precision TIG welding control with its rigid head design and integrated valve for gas flow management. Built for demanding fabrication work, this 80-amp gas-cooled torch operates at 100% duty cycle with 25-foot standard cables.

This professional-grade torch features CK's proven rigid head configuration that eliminates flexing during critical welds, ensuring consistent arc placement and penetration. The handle-mounted valve provides fingertip gas flow control without requiring foot pedal operation, ideal for positional welding and precise bead starts.

• Amperage Rating: 80 amp @ 100% duty cycle
• Cooling System: Gas-cooled for maximum heat dissipation
• Head Style: Rigid with integrated valve
• Cable Length: 25 feet standard configuration
• Arc Type: AC/DC compatible
• Weight: 2-1/4 oz torch head
• Overall Length: 8-1/4 inches
• Duty Cycle: 100% at rated amperage

Compatible Consumables

• 8C40 — .040" (1.0mm) Collet
• 8C116 — 1/16" (1.6mm) Collet
• 8CB40 — .040" (1.0mm) Collet Body
• 8CB116 — 1/16" (1.6mm) Collet Body
• 8A4 — #4 (1/4" 6.4mm) Alumina Cup
• 8A5 — #5 (5/16" 8.0mm) Alumina Cup
• 8A6 — #6 (3/8" 9.6mm) Alumina Cup
• 8GL40 — .040" (1.0mm) Gas Lens
• 8GL116 — 1/16" (1.6mm) Gas Lens
• 80THS — Heatshield

Compatible with all standard 8 Series accessories and consumables, this torch excels in production welding environments requiring consistent performance and operator control. The rigid head configuration makes it particularly suited for aluminum welding applications where arc stability is critical.
