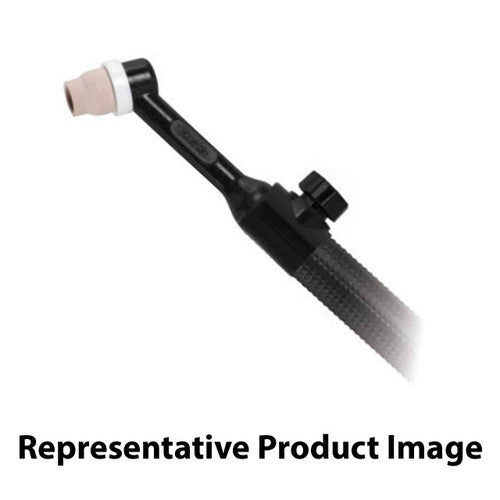

CK Worldwide CK825VHSF 80 Amp TIG Torch - Rigid Head with Valve, Gas-Cooled, 25' Super-Flex Cable

This 80-amp rigid head TIG torch delivers 100% duty cycle performance with integrated valve control for precise gas flow management. The CK825VHSF features a rigid head design that provides exceptional arc stability and control, making it ideal for precision welding applications where consistent torch positioning is critical.

Built with CK's Super-Flex cable technology, this gas-cooled torch offers superior flexibility and durability in demanding shop environments. The 25-foot cable length provides excellent reach for large fabrication projects while maintaining optimal electrical conductivity throughout the welding process.

• 80 amp rating at 100% duty cycle ACHF or DCSP
• Rigid head design with integrated valve control
• Gas-cooled for reliable heat dissipation
• 25-foot Super-Flex cables for maximum flexibility
• One-piece cable construction reduces potential failure points
• 3/8" x 32 thread pattern for standard consumable compatibility
• Weight: 2-1/4 oz (64gm) torch head
• Length: 8-1/4" (20.9cm) torch head

Compatible Consumables

• 8C40 — .040" (1.0mm) Collet
• 8C116 — 1/16" (1.6mm) Collet
• 8CB40 — .040" (1.0mm) Collet Body
• 8CB116 — 1/16" (1.6mm) Collet Body
• 8A4 — #4 (1/4" 6.4mm) Alumina Cup
• 8A5 — #5 (5/16" 8.0mm) Alumina Cup
• 8A6 — #6 (3/8" 9.6mm) Alumina Cup
• 8GL40 — .040" (1.0mm) Gas Lens
• 8GL116 — 1/16" (1.6mm) Gas Lens
• 80THS — Standard Heat Shield

This torch is compatible with standard CK Series 8 consumables and accessories, making it an excellent choice for shops already using CK TIG welding systems. The valve-controlled gas flow allows welders to make precise adjustments during welding without returning to the power source controls.
