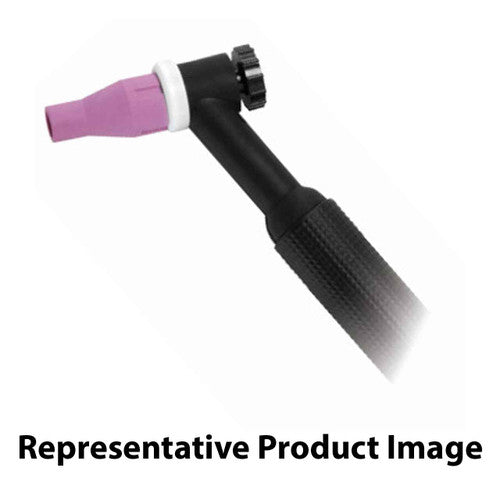

CK Worldwide CKA162N RG - 200 Amp Gas-Cooled TIG Torch, Rigid Head, 12.5 ft

The CKA162N RG delivers reliable 200-amp gas-cooled TIG welding performance with a rigid head design that ensures precise arc control and consistent weld quality. This 2-piece cable configuration provides enhanced flexibility for shop positioning while maintaining the durability demanded by professional welding applications.

Engineered with CK Worldwide's A3 Series head accessories, this torch operates at 100% duty cycle for continuous welding without interruption. The gas-cooled design eliminates the need for water cooling systems, making it ideal for field work and smaller shop operations where simplicity and portability are priorities.

• 200 amp capacity at 100% duty cycle
• Gas-cooled operation — no water cooling required
• Rigid head design for stable arc control
• 2-piece cable construction (CKA162N RG model)
• 12.5 ft. (3.8m) cable length
• 9-3/8" (23.8cm) overall length
• 7-1/2 oz (212gm) weight
• Compatible with A3 Series head accessories
• Streamlined design without valve

Compatible Consumables

• 3C40 — .040" (1.0mm) Collet
• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3CB40 — .040" (1.0mm) Collet Body
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3A4 — #4 (1/4" 6.4mm) Alumina Cup
• 3A5 — #5 (5/16" 8.0mm) Alumina Cup
• 3A6 — #6 (3/8" 9.6mm) Alumina Cup
• 300S — Short Backcap

This torch accepts standard AIRCO-style connections and works with DINSE adapters for maximum welding machine compatibility. The rigid head configuration makes it particularly well-suited for precision work on aluminum, stainless steel, and exotic alloys where arc stability is critical.
