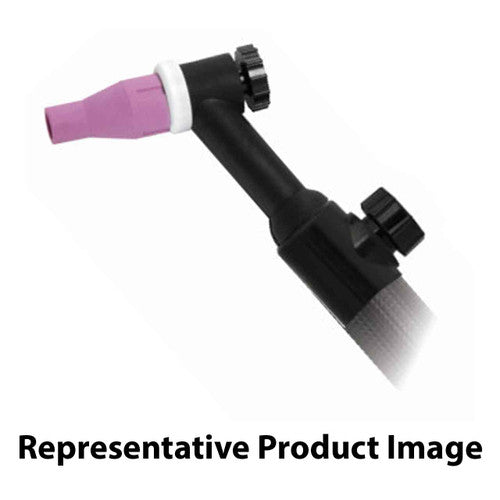

CK Worldwide CKA162VN RG - 200 Amp Rigid Head TIG Torch with Valve, Gas-Cooled, 12.5 ft

The CK Worldwide CKA162VN RG delivers 200 amp gas-cooled performance with integrated valve control for precision TIG applications. This rigid head torch features a 100% duty cycle rating and 12.5-foot one-piece cable configuration, making it ideal for production welding environments where consistent arc control and operator convenience are essential.

• Amperage Rating: 200 amp AC/DC
• Duty Cycle: 100% at rated amperage
• Cooling Type: Gas-cooled for maximum portability
• Head Style: Rigid with integrated gas valve
• Cable Length: 12.5 ft. (3.8m) one-piece construction
• Overall Length: 9-3/8" (23.8cm)
• Weight: 7-1/2 oz (212gm)
• Series: A3 Series head accessories
• Compatibility: Airco-style connections

Compatible Consumables

• 3A4 — #4 (1/4" 6.4mm) Alumina Cup
• 3A5 — #5 (5/16" 8.0mm) Alumina Cup
• 3A6 — #6 (3/8" 9.6mm) Alumina Cup
• 3A8 — #8 (1/2" 12.8mm) Alumina Cup
• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3C418 — 1/8" (3.2mm) Collet
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 300S — Short Backcap

This torch utilizes A3 Series consumables and accepts standard tungsten electrodes from 1/16" to 1/8" diameter. The integrated valve provides immediate gas flow control without requiring foot pedal operation, making it particularly effective for spot welding and applications requiring frequent arc starts and stops.
