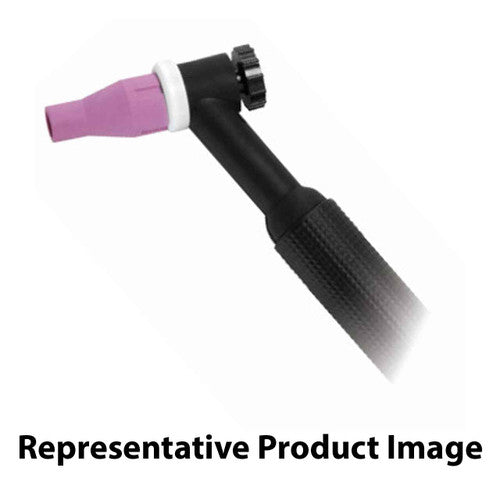

CK Worldwide CKA165 RG 200 Amp Rigid TIG Torch, Gas-Cooled, 25 ft Cable

The CKA165 RG delivers reliable 200-amp TIG welding performance with a rigid head design for maximum arc stability and precision control. This gas-cooled torch operates at 100% duty cycle, making it ideal for production environments and extended welding sessions where consistent heat dissipation is critical.

Built with CK Worldwide's proven A3 Series head accessories, this torch features a streamlined design without a valve for direct machine control applications. The 25-foot standard cable provides excellent reach for shop and field applications, while the rigid head construction ensures steady arc positioning for critical welds on steel, stainless, and aluminum.

• Amperage Rating: 200 amps at 100% duty cycle
• Cooling Type: Gas-cooled for efficient heat dissipation
• Head Style: Rigid for maximum stability
• Cable Length: 25 feet standard length
• Weight: 7-1/2 oz (212gm)
• Overall Length: 9-3/8" (23.8cm)
• Series: A3 Series Head Accessories
• Configuration: 1-piece cable design

Compatible Consumables

• 3C40 — .040" (1.0mm) Collet
• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3CB40 — .040" (1.0mm) Collet Body
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3A4 — #4 (1/4" 6.4mm) Alumina Cup
• 3A5 — #5 (5/16" 8.0mm) Alumina Cup
• 3A6 — #6 (3/8" 9.6mm) Alumina Cup
• 300S — Short Back Cap

This torch is compatible with AIRCO-style connections and works with standard TIG welding power sources. The CKA165 RG is well-suited for fabrication shops, maintenance departments, and production welding where dependable performance and precise arc control are essential.
