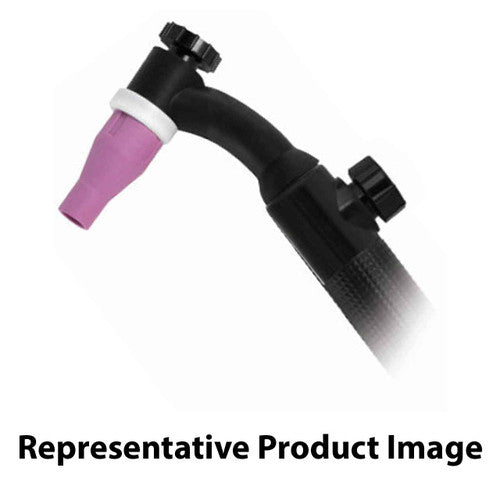

CK Worldwide CKA165V FX - 200 Amp Flex Head TIG Torch with Valve, Gas-Cooled, 25ft Cable

The CK CKA165V FX delivers precision TIG welding with 200 amp capacity at 100% duty cycle and CK Worldwide's signature flex head technology. This gas-cooled torch features integrated valve control and 40-degree flex head articulation for superior access in confined spaces and complex joint geometries.

Built on the proven A3 Series platform, this torch combines durability with ergonomic design for demanding fabrication environments. The gas-cooled design maximizes heat dissipation while maintaining portability, making it ideal for both shop and field applications.

• 200 amp rating at 100% duty cycle ACHF or DCSP
• Flex head design — 40-degree articulation in any direction
• Integrated gas valve for precise shielding gas control
• Gas-cooled construction for optimal heat management
• 25-foot cable length for extended reach
• A3 Series consumables — wide range of compatible parts
• One-piece cable design for simplified setup
• Weight: 7-1/2 oz (212gm)
• Overall length: 9-3/8" (23.8cm)

Compatible Consumables

• 3C40 — .040" (1.0mm) Collet
• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3CB40 — .040" (1.0mm) Collet Body
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3A4 — #4 (1/4" 6.4mm) Alumina Cup
• 3A5 — #5 (5/16" 8.0mm) Alumina Cup
• 3A6 — #3/8" 9.6mm) Alumina Cup
• 300S — Short Backcap

Compatible with standard Dinse connectors and AIRCO-style power sources. The CKA165V FX excels in aluminum welding, stainless steel fabrication, and precision work where torch maneuverability is critical.
