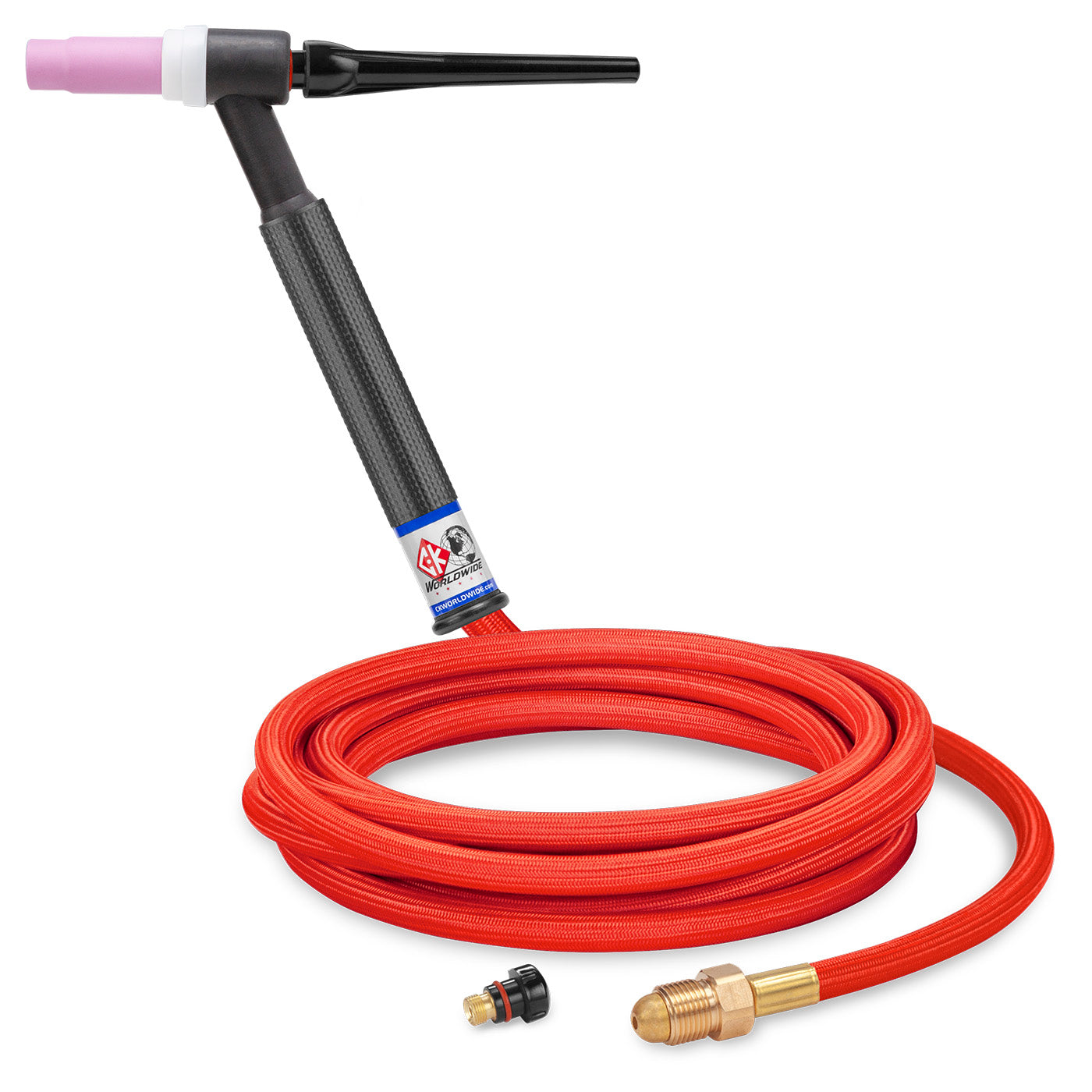

CK Worldwide CKC1512HSF 150 Amp Gas-Cooled TIG Torch with 12.5' Superflex Cable

The CK Worldwide CKC1512HSF delivers 150 amp ACHF or DCSP @ 100% duty cycle performance in a gas-cooled TIG torch designed for professional fabrication and repair work. This rigid head torch features CK's SuperFlex cable technology for enhanced flexibility and maneuverability in tight spaces.

Built with a stainless steel head construction, this torch provides the stability and durability required for precision welding applications. The streamlined design without a built-in valve keeps the torch lightweight while maintaining full amperage capacity.

• Amperage Rating: 150 amp ACHF or DCSP @ 100% duty cycle
• Cooling Type: Gas cooled for maximum heat dissipation
• Head Style: Rigid stainless steel construction
• Cable Length: 12.5 feet (3.8m) SuperFlex cables
• Cable Configuration: 1-piece design
• Weight: 4.5 oz (127gm)
• Overall Length: 7-3/4" (19.6cm)
• Series: 3 Series head accessories compatible

Compatible Consumables

• 3A4 — #4 (1/4" 6.4mm) Alumina Cup
• 3A5 — #5 (5/16" 8.0mm) Alumina Cup
• 3A6 — #6 (3/8" 9.6mm) Alumina Cup
• 3C40 — .040" (1.0mm) Collet
• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3CB40 — .040" (1.0mm) Collet Body
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 300S — Short Backcap

Compatible with CK's 3 Series accessory kits (AK-2, AK-3, AK-3GS) and standard Dinse connectors. Ideal for general fabrication, pipe welding, and maintenance applications where reliable arc performance and operator comfort are essential.
