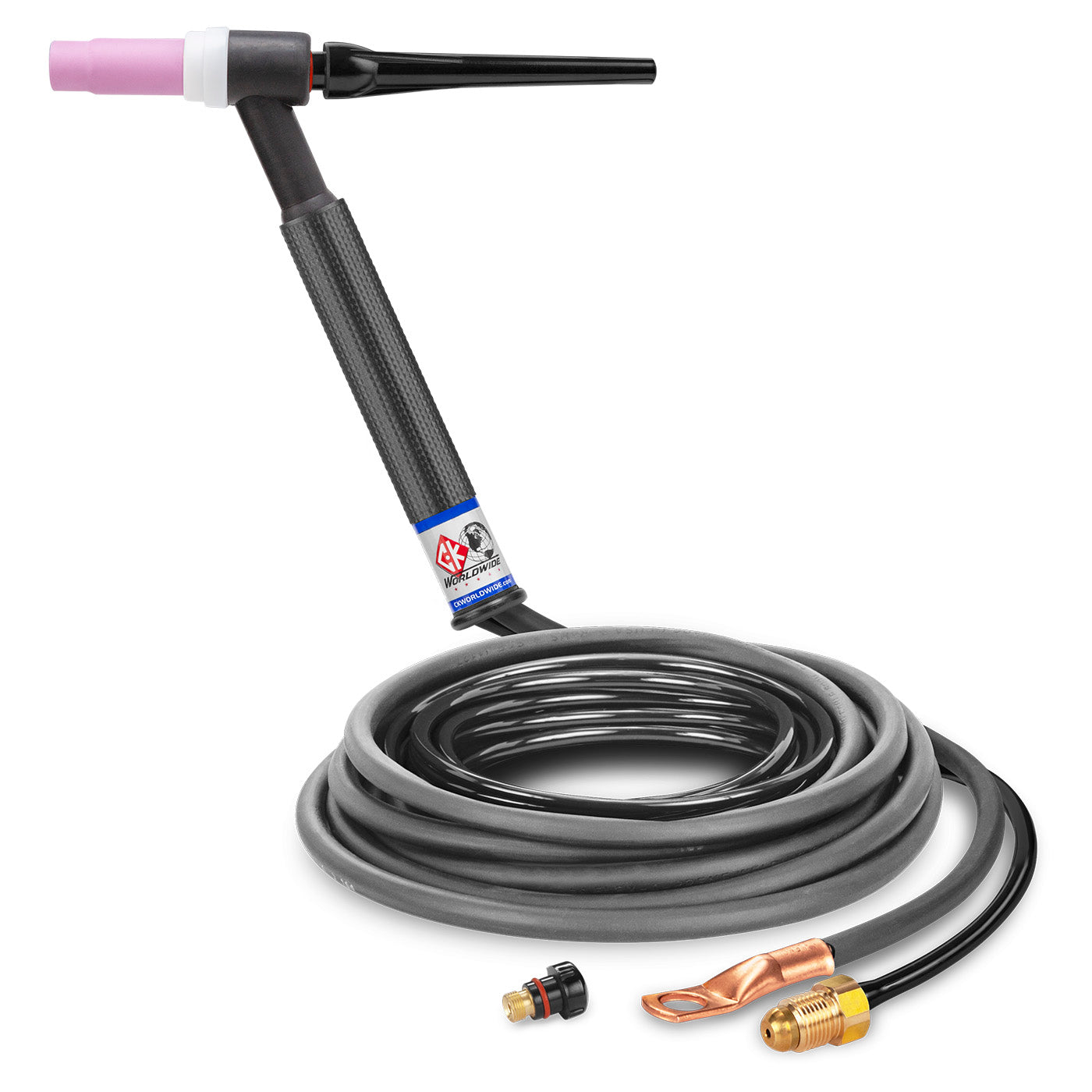

CK Worldwide CKC1512N - 150 Amp Gas-Cooled TIG Torch, Rigid Head, 12.5' Cable

The CKC1512N delivers reliable 150-amp TIG performance with a rigid head design that ensures precise arc control and consistent weld quality. This gas-cooled torch features a stainless steel head construction and operates at 100% duty cycle on both AC high frequency and DC straight polarity applications.

Built for professional fabrication environments, this torch combines durability with ergonomic design. The 12.5-foot standard cables provide sufficient reach for most shop applications while maintaining flexibility. The rigid head configuration eliminates wobble during precision work, making it ideal for critical joints and detailed fabrication tasks.

• Amperage Rating: 150 amp ACHF or DCSP @ 100% duty cycle
• Cooling Type: Gas-cooled for efficient heat dissipation
• Head Style: Rigid stainless steel construction
• Cable Length: 12.5 feet (3.8m) standard series
• Cable Configuration: 2-piece design
• Overall Length: 7-3/4 inches (19.6cm)
• Weight: 4-1/2 oz (127g)
• Series Compatibility: 3 Series head accessories

Compatible Consumables

• 3A4 — #4 Alumina Cup (1/4" 6.4mm)
• 3A5 — #5 Alumina Cup (5/16" 8.0mm)
• 3A6 — #6 Alumina Cup (3/8" 9.6mm)
• 3C40 — .040" (1.0mm) Collet
• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3CB40 — .040" (1.0mm) Collet Body
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 300S — Short Backcap

This torch accepts all 3 Series consumables and accessories, providing flexibility for various welding applications from thin sheet metal to structural fabrication. The CKC150 series is compatible with standard TIG welding power sources equipped with appropriate cable connections.
