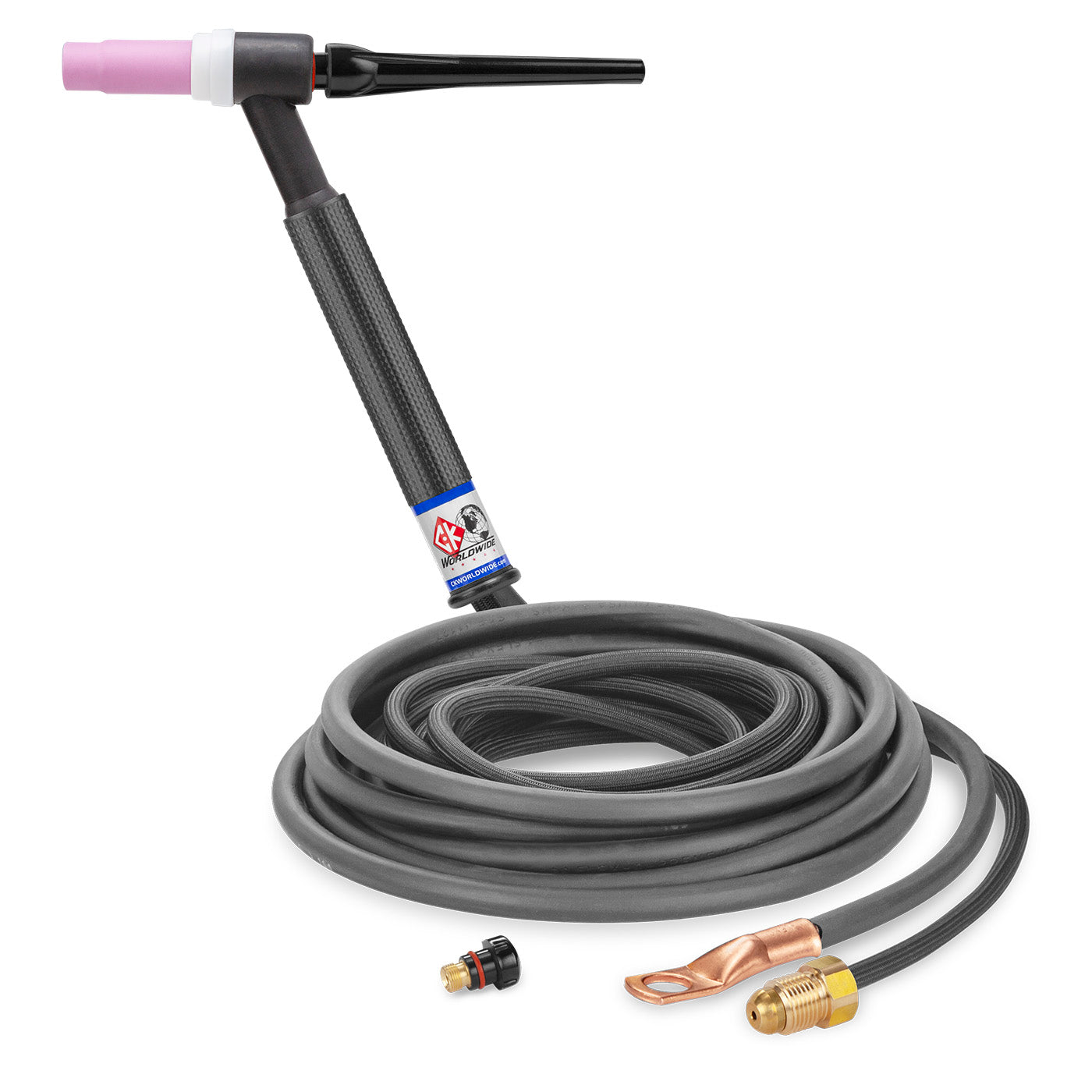

CK Worldwide CKC1512NSF - 150A Gas-Cooled TIG Torch, Rigid Head, 12.5' Superflex Cable

The CK CKC1512NSF delivers 150 amp AC/DC welding power at 100% duty cycle with a rigid stainless steel head for stable, precise TIG applications. This two-piece, gas-cooled torch features 12.5' SuperFlex cables for maximum flexibility in confined spaces without compromising durability.

Built with CK's proven 3 Series platform, this contractor-grade torch provides consistent arc performance for both AC aluminum and DC steel welding. The rigid head design eliminates flex during precise corner work, while the two-piece cable configuration allows for easy replacement and reduced downtime.

• Amperage Rating: 150 amp ACHF or DCSP @ 100% duty cycle
• Head Construction: Stainless steel rigid head with 3 Series accessories
• Cable Type: 12.5' SuperFlex two-piece configuration
• Cooling Method: Gas-cooled for reduced operating costs
• Weight: 4-1/2 oz (127gm)
• Overall Length: 7-3/4" (19.6cm)
• Valve Configuration: No valve (streamlined design)

Compatible Consumables

• 3A4 — #4 Alumina Cup (1/4" 6.4mm)
• 3A5 — #5 Alumina Cup (5/16" 8.0mm)
• 3A6 — #6 Alumina Cup (3/8" 9.6mm)
• 3C40 — .040" (1.0mm) Collet
• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3CB40 — .040" (1.0mm) Collet Body
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 300S — Short Backcap

This torch accepts all standard 3 Series consumables and accessories, making it compatible with existing shop inventory. Ideal for fabrication shops, maintenance facilities, and contractors requiring reliable performance in demanding production environments.
