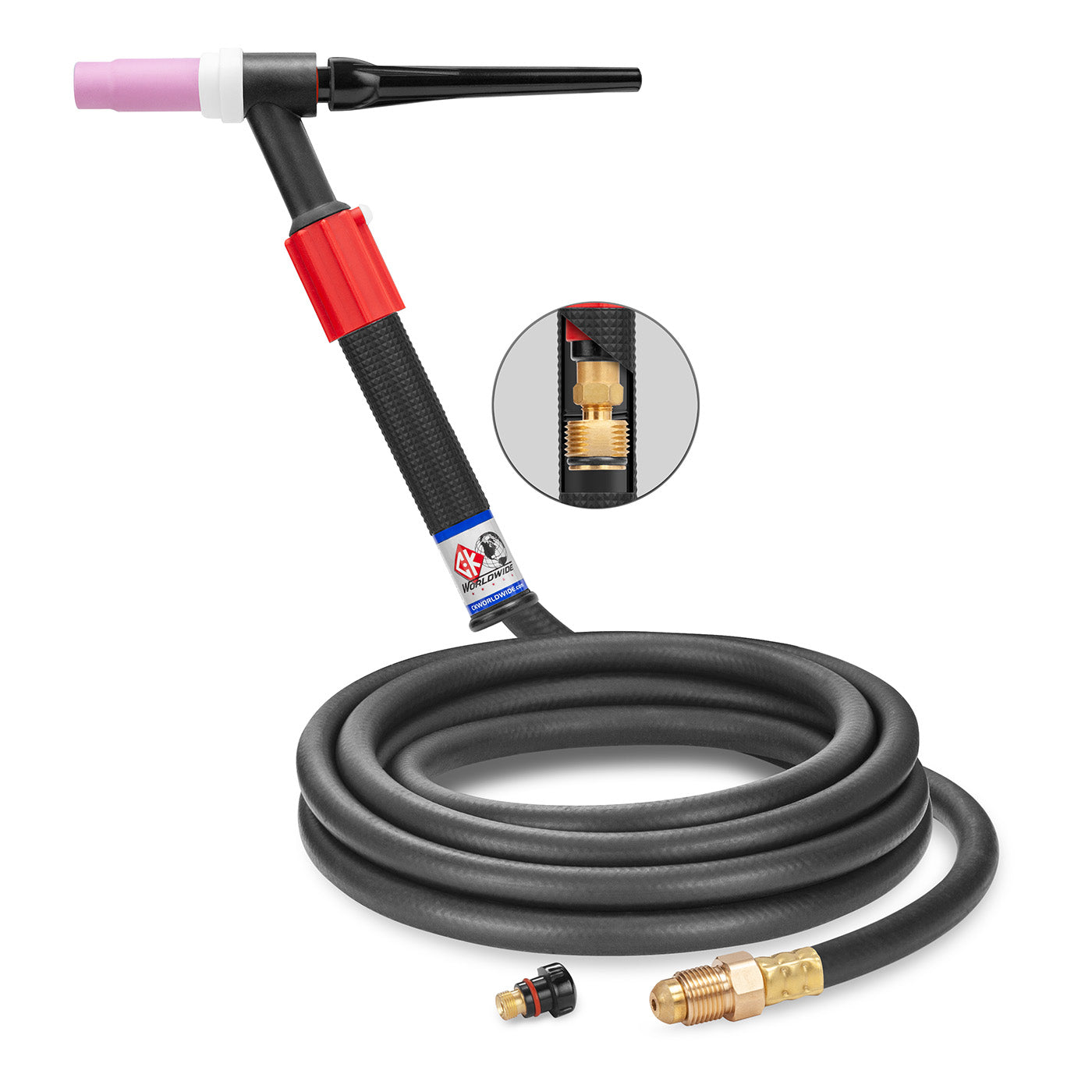

CK Worldwide CKC1512VH 150 Amp Rigid Head TIG Torch with Valve, Gas-Cooled, 12.5

The CK Worldwide CKC1512VH delivers reliable 150-amp TIG welding performance with the added convenience of an integrated handle valve for precise gas flow control. This gas-cooled torch features a rigid stainless steel head construction and operates at 100% duty cycle on both AC high frequency and DCSP applications.

Built with CK's signature stainless steel head design, this torch provides exceptional durability in demanding shop environments. The integrated twist gas valve eliminates the need for remote gas controls, giving welders direct command over shielding gas flow at the torch handle. Standard 12.5-foot cables offer sufficient reach for most welding stations while maintaining excellent flexibility and heat dissipation.

• Current Rating: 150 amp ACHF or DCSP @ 100% duty cycle
• Cooling Type: Gas-cooled for optimal heat dissipation
• Head Construction: Stainless steel rigid head
• Cable Length: 12.5 feet (3.8m) standard configuration
• Handle Features: Integrated twist gas valve
• Overall Length: 7-3/4 inches (19.6cm)
• Weight: 4-1/2 oz (127gm)
• Series Compatibility: 3 Series head accessories

Compatible Consumables

• 3C40 — .040" (1.0mm) Collet
• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3CB40 — .040" (1.0mm) Collet Body
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3A4 — #4 Alumina Cup
• 3A5 — #5 Alumina Cup
• 3A6 — #6 Alumina Cup
• 300S — Short Backcap

This torch pairs with 3 Series consumables and accessories, making it compatible with a wide range of tungsten sizes and cup configurations. The CKC1512VH is ideal for fabrication shops, maintenance facilities, and educational institutions requiring dependable TIG welding performance with integrated gas control.
