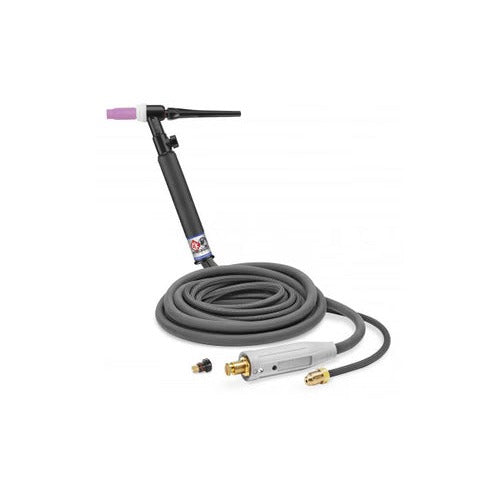

CK Worldwide CKCS26122RG TIG Torch - 300 Amp Gas Cooled, Rigid Head, 12.5' Cable

The CK26HD delivers 300 amp capacity at 60% duty cycle with gas cooling technology, eliminating the need for water cooling systems in heavy-duty TIG applications. This rigid-head torch combines the proven CK26 torch body with larger gauge power cables and a separate SuperFlex gas line for enhanced amperage performance.

Built for demanding shop environments, this torch features a rigid head design that provides stable arc control and precise electrode positioning. The 12.5-foot cable length offers excellent reach while maintaining optimal electrical performance. The streamlined valve-free design reduces complexity and potential failure points.

• 300 amp ACHF or DCSP at 60% duty cycle
• Gas-cooled design with MaxFlow technology
• Rigid head for stable, precise welding
• 12.5-foot standard cables with SuperFlex gas line
• 9.5-inch overall length, 7.5 oz weight
• Standard lug connector for universal compatibility
• Heavy-duty construction using larger gauge power cable

Compatible Consumables

• 3A4 — #4 (1/4") Alumina Cup
• 3A5 — #5 (5/16") Alumina Cup
• 3A6 — #6 (3/8") Alumina Cup
• 3C40 — .040" (1.0mm) Collet
• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3CB40 — .040" (1.0mm) Collet Body
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 300S — Short Back Cap

This torch utilizes the same proven 3 Series consumables as the standard CK26, ensuring easy parts availability and compatibility with existing inventory. Ideal for structural welding, pipe work, and heavy fabrication where portability and high amperage capacity are essential.
