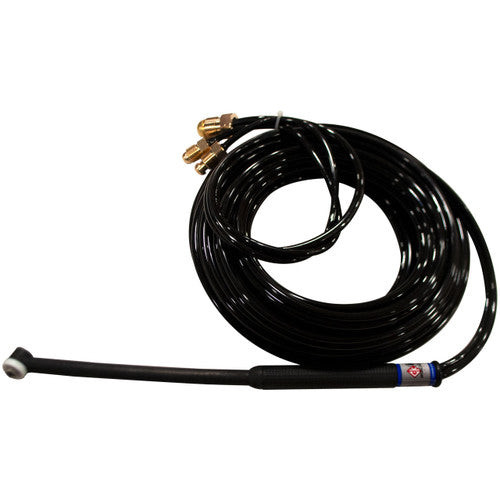

CK Worldwide CKXL1825 - 180 Amp TIG Torch, Gas-Cooled, X-Long Head, 25' Cable

This 180-amp rigid head TIG torch delivers professional-grade performance with 100% duty cycle reliability for demanding fabrication environments. Gas-cooled design provides efficient heat dissipation during extended welding sessions without the complexity of water cooling systems.

Built for precision TIG work, the rigid head configuration ensures stable arc control and consistent weld quality. The 25-foot cable length provides excellent reach for shop and field applications while maintaining proper electrical characteristics for optimal arc performance.

• Amperage Rating: 180 amps at 100% duty cycle
• Cooling Type: Gas-cooled for reliable heat management
• Head Style: Rigid for maximum stability and precision
• Cable Length: 25 feet standard 3-piece cable assembly
• Duty Cycle: 100% at rated amperage
• Cable Type: Standard series configuration
• Overall Length: 13 inches with 7-1/2 inch neck
• Weight: Lightweight design at 3 ounces

Compatible Consumables

• 2A5GS — #5 Alumina Cup
• 2A6GS — #6 Alumina Cup
• 2A7GS — #7 Alumina Cup
• 2A8GS — #8 Alumina Cup
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3CB18 — 1/8" Collet Body
• 4C116 — 1/16" Collet
• 4C332 — 3/32" Collet
• 4C18 — 1/8" Collet

This torch integrates seamlessly with standard TIG welding machines and accepts industry-standard consumables for easy maintenance and replacement. The valve-free design simplifies operation while the rigid head construction makes it ideal for precision work on aluminum, stainless steel, and exotic alloys.
