    Lincoln Electric Ranger® 305 LPG Engine Driven Welder (Kohler®) One-Pak

    Original price $12,074.00 - Original price $12,074.00
    Original price
    $12,074.00 - $12,074.00
    Current price $12,074.00

    This item is not stocked in our local warehouse, This item is Drop Shipped from the Manufacturer. Please call 913-952-7743 for exact delivery date.

    Request a quote
    SKU K3430-2

    Lincoln Electric Ranger® 305 LPG Engine Driven Welder (Kohler®) One-Pak K3430-2


    Choose the Ranger 305 LPG for those environments where gasoline and diesel emissions are not acceptable. Includes a liquid propane gas supply hose with coupler for easy connection to the liquid draw outlet of an LP-gas cylinder. The 10,000-watt peak single-phase AC generator powers motor starting, tools and inverter welders for extended range and process capability.

      • Top-of-the-line Kohler® overhead valve (OHV) 25 HP Command® LPG engine
      • Digital weld meters monitor actual welding output
      • Built-in “hot” start for easier starts and restrikes


    Multi-Process Welding
    · Excellent DC multi-process welding for general purpose stick, downhill pipe (stick), TIG, cored-wire and MIG (CO2 and mixed gas).
    · It's the only compact LPG welder in North America rated at 25V for 300 amps of stick or CV welding.
    · CV wire welding with up to 5/64 in. (2.0 mm) diameter electrodes.

    Digital Weld Meters
    · Digital weld meters for amps and volts makes it easy to precisely pre-set your procedures and monitor actual welding output.

    Superior Arc Performance
    · Lincoln Electric Chopper Technology® provides easy starts, a smooth arc, low spatter and excellent bead appearance.

    10,000 Watts Peak Single-Phase AC Generator Power
    · 10,000 watts peak for motor starting.
    · 9,000 watts continuous for high capacity needs such as a back-up generator, powering a Lincoln Electric Invertec® inverter welder. Also can be used for lights, a grinder or other power tools.
    · AC generator voltage is constant at 120V or 240V at any weld dial setting.

    Rugged Reliability
    · Welding and AC Generator Outputs rated at 104ºF (40ºC).

    25 HP Kohler® LPG Engine
    · LPG (Liquid Propane Gas) engine has plenty of horsepower.


      • Multi-Process Welding
      • Digital Weld Meters
      • Superior Arc Performance
      • 10,000 Watts Peak Single-Phase AC Generator Power
      • 25 HP Kohler LPG Engine

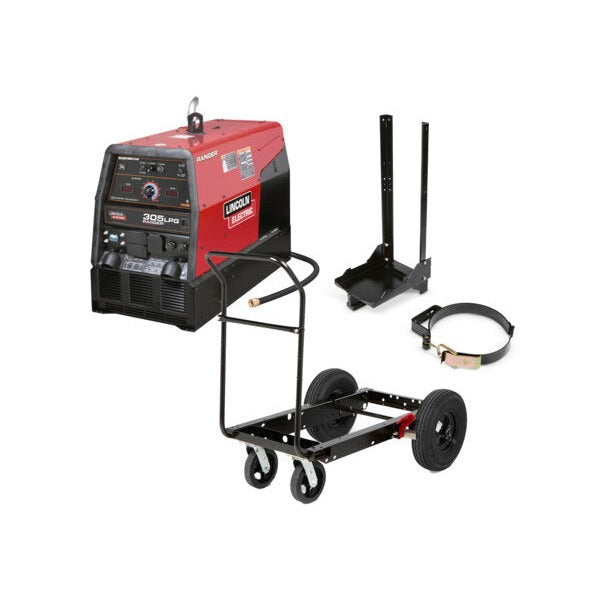

    The Ranger® 305 LPG One-Pak is a multi-process engine driven welder with a undercarriage, and LPG Tank Holder.
