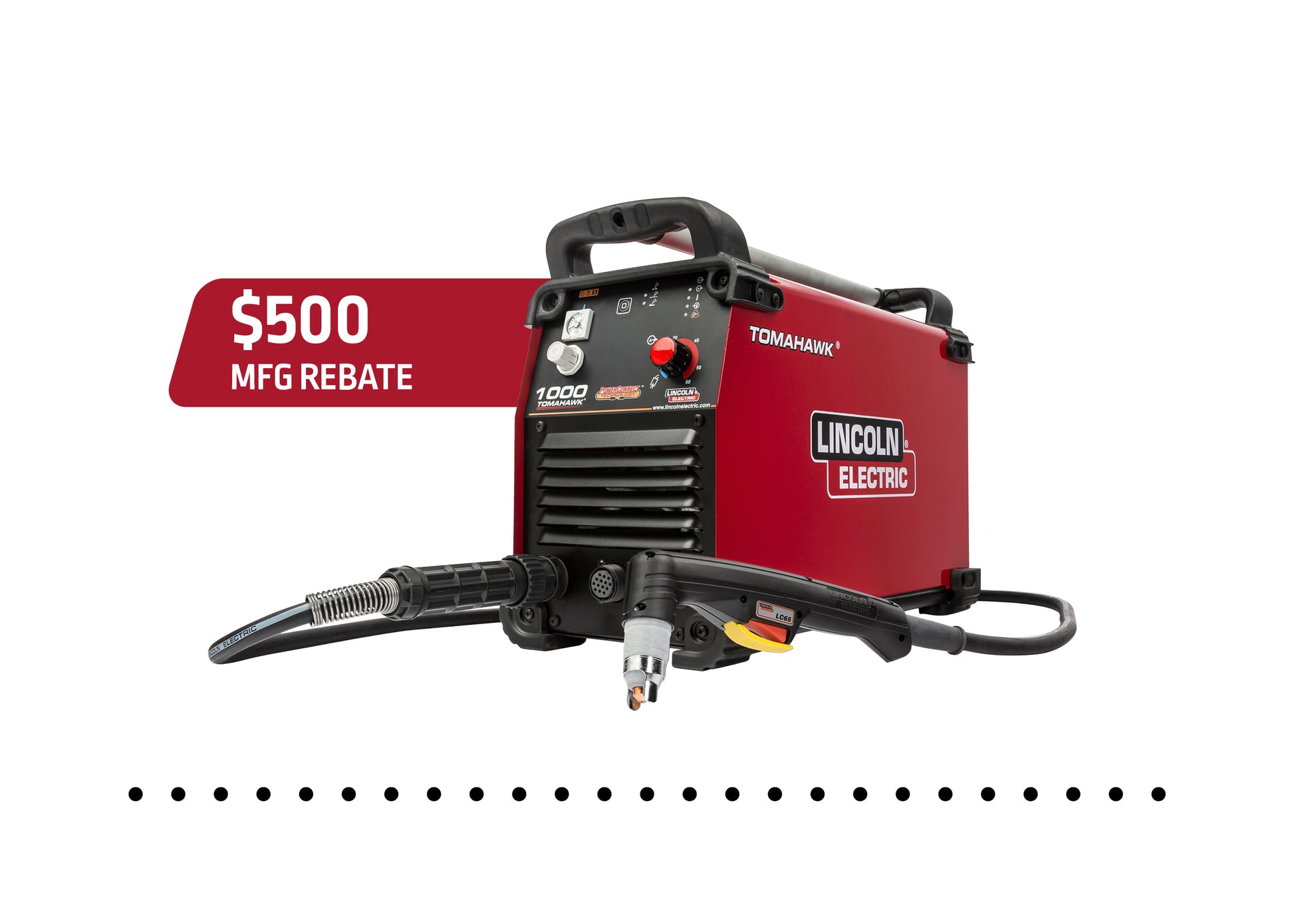

    Lincoln K2808-1 Tomahawk® 1000 Plasma Cutter with Hand Torch

    Original price $3,658.00 - Original price $3,658.00
    Original price
    $3,658.00
    $3,658.00 - $3,658.00
    Current price $3,658.00
    SKU K2808-1

    Lincoln K2808-1 Tomahawk® 1000 Plasma Cutter with Hand Torch



    The Tomahawk® 1000 plasma cutting system is ideal for plasma cutting and gouging materials including mild steel, brass, stainless steel, copper, and aluminum.

    Output

    Output

    Input

    Input

     REBATE



    $500 End User Rebate (US Only) - See Details Below - Offers valid for a limited time only, while supplies last

    DETAILS



    LIMITED-TIME OFFER (US Only)!

    Buy a Tomahawk 1000 Plasma Cutter and receive a $500 VISA gift card rebate.

    STACK & SAVE - Up to $200.  ADD ACCESSORIES & FILLER METALS FOR MORE SAVINGS. Click on the link below for more details.

    View other Buy Red Save Green Rebates
    Redeem Rebate



    Plasma Cutting for Production Capacity

    The Tomahawk 1000 plasma cutting system is portable enough to use on the jobsite and rugged enough to use on up to one inch material in a production environment. Hook up the compressed air, grab the torch and start cutting.



    Features

    • PowerConnect® Technology - Automatically senses and adjusts to input power for a range of 200 up to 600 volts, single or three phase, 50 or 60 hertz. Cutting output remains constant throughout the entire input voltage range.
    • Continuous Output Control - Focus the arc for different material thicknesses.
    • Touch Start - Reliable plasma arc initiation without high frequency.
    • Front Panel Purge Control - Makes it easy to set the air flow rate without initiating the plasma arc.
    • Cool Operation, Long Consumable Life - New electrode and nozzle design save you money in the long run.
    • Added Safety - Our Parts-in-Place - System detects correct installation of consumables and torch.
    • Engine Drive Compatible - Select a Lincoln Electric Ranger® or Vantage® to power your Tomahawk® in remote locations.
    • Optional Machine Torch - Available for use on CNC plasma cutting table.

    Disclaimers

     Warning -

    Cancer and Reproductive Harm -

    www.P65Warnings.ca.gov

    Specifications

    Product Weights & Dimensions

    Dimensions (H x W x D) 15.2 in x 8.5 in x 22.1 in (385 mm x 215 mm x 561 mm)
    Net Weight 45 lbs (20.4 kg)

    Machines

    Machines Processes Plasma Gouging
    Plasma Cutting

    Plasma Machines

    Torch Included Yes
    Gas Supply Air or Nitrogen
    Gas Pressure Required 87 - 109 psi (6.0 - 7.5 Bar)
    Recommended Cutting Capacity (Mild Steel) (In/ft) 3/4 in @19 ipm
    Recommended Cutting Capacity (Mild Steel) (mm/M) 19.01 mm @ 0.51 m/min
    Maximum Cutting Thickness (Mild Steel) (ln/Ft) 1 in @10 ipm
    Maximum Cutting Thickness (Mild Steel) (mm/M) 25.4 mm @ 0.30 m/min
    Maximum Severance (Mild Steel) (In/Ft) 1 1/4 in @ 5 ipm
    Maximum Severance (Mild Steel) (mm/M) 31.75 mm @ 0.13 m/min

    Basic Specification

    Output Range 20-60A
    Rated Output 40A@96V 100%, 60A@104V 50%

    Application

    Typical Application Construction
    Automotive
    Construction & Field Erection
    General Fabrication
    Heavy Fabrication
    Marine Fabrication & Repair
    Oil & Gas
    Shipbuilding
    Structural Fabrication

    Warranty

    Warranty 3 Year on Machine, 1 Year on Torch
