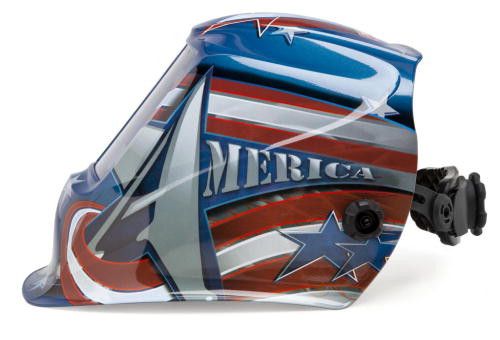

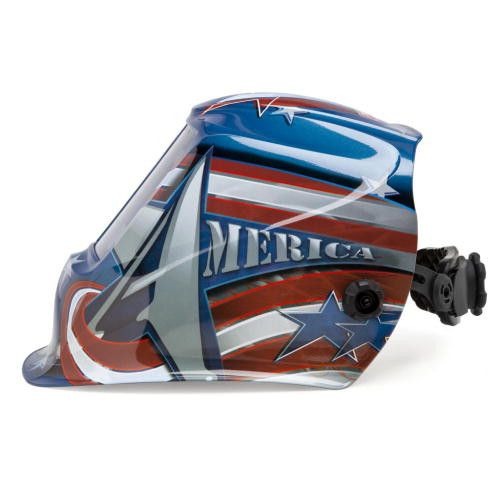

Lincoln K3175-4 Viking® 3350 All American® Welding Helmet
Lincoln K3175-4 Viking® 3350 All American® Welding Helmet
In stock
Lincoln K3175-4 Viking® 3350 All American® Welding Helmet
Product Description
Lincoln K3175-4 Viking® 3350 All American® Welding Helmet
The new and improved Viking 3350, their top-of-the line helmet series, is the ultimate blend of optics, comfort & versatility.
- Industry Leading Optics - 4C® Lens Technology, 1/1/1/1 Optical Clarity and extra large 12.5 sq. inch viewing area
- All Day Comfort - Innovative X6 Headgear distributes weight, reduces pressure and optimizes balance
- Increased Productivity - External low profile grind control
- Professional Versatility - Optimized performance for all welding/cutting processes & environments
- 3 year hassles free warranty
Features:
4C® LENS TECHNOLOGY
- Broadens the color range & hues which can be seen in both light and dark states
- This eliminates imperfections and color saturation to create the clearest view of the base material, arc & puddle
PERFECT 1/1/1/1 OPTICAL CLARITY
- This rating is determined by measuring blurriness, distortion, shade consistency and angle uniformity of the auto-darkening welding lens
EXTRA LARGE VIEWING AREA
- The 12.5 square inch auto darkening lens provides a large field of view to increase versatility and operator control
X6 HEADGEAR
LOW PROFILE EXTERNAL GRIND CONTROL
Specifications:
| LENS SWITCHING SPEED (SEC) | 1/25,000 |
| VARIABLE SHADE/CONTROL | 5-13 internal |
| BATTERY REPLACEMENT TYPE | 1 CR2450 Replaceable Battery |
| MAGNIFYING "CHEATER" CAPABLE LENS | Yes |
| GRIND MODE/SHADE CONTROL | 3.5 / External & Internal |
| LIGHT SENSITIVITY CONTROL | Continuous |
| DELAY CONTROL DARK TO LIGHT (SEC) | 0.1 - 1.0 Fully Adjustable |
| ARC SENSORS | 4 |
| TIG AMP RATING |
|
| CARTRIDGE SIZE | 4.5" x 5.25" (114 mm x 133 mm) |
| VIEW SIZE | 3.74" x 3.34" (95 mm x 85 mm) |
| TEMPERATURE RANGE | Operating
Storage
|
| WARRANTY | 3 Years |
Included:
- Helmet Bag
- Bandana
- 5 Outside Cover Lenses
- 2 Inside Cover Lenses
- Sticker Sheet
Expendable Parts:
| PRODUCT NUMBER | PRODUCT NAME |
| KP2898-1 | Lincoln VIKING™ 750S/2450/3350 Series Outside Cover Lens |
| KP3044-1 | Lincoln VIKING™ 3350 Series Inside Clear Cover Lens |
| KP3047-1 | Lincoln 1840/2450/3350 Halo Style Hard Hat Adapter |
| KP3486-1 | Lincoln VIKING® 1740/1840/2450/3350 Slotted Hard Hat Adapter |
| KP3045-4 | Lincoln Viking™ 3350 Series - ADF Cartridge Kit |
| KP4491-1 | Lincoln CR2450 Lithium Battery |
| KP4562-1 | Lincoln Viking™ 2450/3350 Grind Button Replacement |
| KP2930-1 | Lincoln Viking All Purpose Sweatband Package |
| KP4470-1 | Lincoln Viking™ X6 Headgear™ Kit |
| KP3908-1 | Lincoln Pivot Headgear |
| KP4100-1 | Lincoln Ratchet Style Headgear with Sweatband |
| KP3046-150 | Lincoln Cheater Lens 1.50 MAG |
| KP3046-175 | Lincoln Cheater Lens 1.75 MAG |
| KP3046-200 | Lincoln Cheater Lens 2.00 MAG |
| KP3046-225 | Lincoln Cheater Lens 2.25 MAG |
| KP3046-250 | Lincoln Cheater Lens 2.50 MAG |
| KP4561-1 | Lincoln Viking™ 2450/3350 4th Generation Matte Black Helmet Shell |
| KP4560-1 | Lincoln Viking™ 2450/3350 4th Generation Gloss Black Helmet Shell |
| KP3729-1 | Lincoln Split Leather w/ Press Fit Seal Helmet Bib |
| KP4541-1 | Lincoln Soft Cotton Back Pad for X6 Headgear™ |
