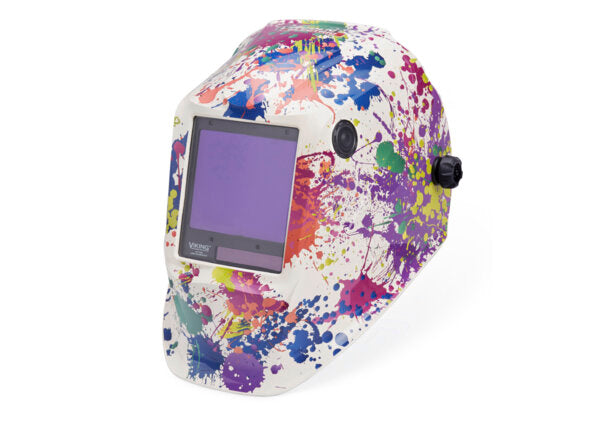

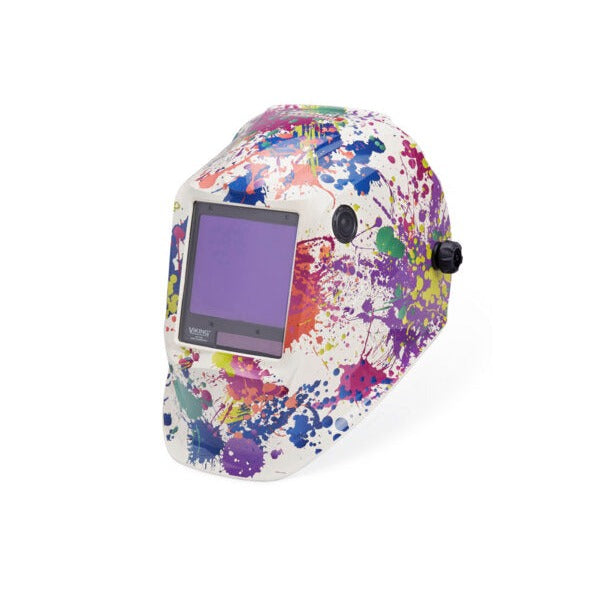

Lincoln K5134-4 VIKING™ 3350 Creative Spark™ Welding Helmet

Product Description

Lincoln K5134-4 VIKING™ 3350 Creative Spark™ Welding Helmet





The new and improved Viking 3350, their top-of-the line helmet series, is the ultimate blend of optics, comfort & versatility.



• Industry Leading Optics - 4C® Lens Technology, 1/1/1/1 Optical Clarity and extra large 12.5 sq. inch viewing area
• All Day Comfort - Innovative X6 Headgear distributes weight, reduces pressure and optimizes balance
• Increased Productivity - External low profile grind control
• Professional Versatility - Optimized performance for all welding/cutting processes & environments
• 3 year hassles free warranty



Features:





4C® LENS TECHNOLOGY

• Broadens the color range & hues which can be seen in both light and dark states
• This eliminates imperfections and color saturation to create the clearest view of the base material, arc & puddle



PERFECT 1/1/1/1 OPTICAL CLARITY

• This rating is determined by measuring blurriness, distortion, shade consistency and angle uniformity of the auto-darkening welding lens



EXTRA LARGE VIEWING AREA

• The 12.5 square inch auto darkening lens provides a large field of view to increase versatility and operator control



X6 HEADGEAR





LOW PROFILE EXTERNAL GRIND CONTROL





Specifications:

LENS SWITCHING SPEED (SEC)	1/25,000
VARIABLE SHADE/CONTROL	5-13 internal
BATTERY REPLACEMENT TYPE	1 CR2450 Replaceable Battery
MAGNIFYING "CHEATER" CAPABLE LENS	Yes
GRIND MODE/SHADE CONTROL	3.5 / External & Internal
LIGHT SENSITIVITY CONTROL	Continuous
DELAY CONTROL DARK TO LIGHT (SEC)	0.1 - 1.0 Fully Adjustable
ARC SENSORS	4
TIG AMP RATING	DC > 2 Amp AC > 2 Amp
CARTRIDGE SIZE	4.5" x 5.25" (114 mm x 133 mm)
VIEW SIZE	3.74" x 3.34" (95 mm x 85 mm)
TEMPERATURE RANGE	Operating -10°C - 55°C 14° F - 131° F Storage -20° C - 70° C -4° F - 158° F
WARRANTY	3 Years



Included:

• Helmet Bag
• Bandana
• 5 Outside Cover Lenses
• 2 Inside Cover Lenses
• Sticker Sheet



Expendable Parts:

PRODUCT NUMBER	PRODUCT NAME
KP2898-1	Lincoln VIKING™ 750S/2450/3350 Series Outside Cover Lens
KP3044-1	Lincoln VIKING™ 3350 Series Inside Clear Cover Lens
KP3047-1	Lincoln 1840/2450/3350 Halo Style Hard Hat Adapter
KP3486-1	Lincoln VIKING® 1740/1840/2450/3350 Slotted Hard Hat Adapter
KP3045-4	Lincoln Viking™ 3350 Series - ADF Cartridge Kit
KP4491-1	Lincoln CR2450 Lithium Battery
KP4562-1	Lincoln Viking™ 2450/3350 Grind Button Replacement
KP2930-1	Lincoln Viking All Purpose Sweatband Package
KP4470-1	Lincoln Viking™ X6 Headgear™ Kit
KP3908-1	Lincoln Pivot Headgear
KP4100-1	Lincoln Ratchet Style Headgear with Sweatband
KP3046-150	Lincoln Cheater Lens 1.50 MAG
KP3046-175	Lincoln Cheater Lens 1.75 MAG
KP3046-200	Lincoln Cheater Lens 2.00 MAG
KP3046-225	Lincoln Cheater Lens 2.25 MAG
KP3046-250	Lincoln Cheater Lens 2.50 MAG
KP4561-1	Lincoln Viking™ 2450/3350 4th Generation Matte Black Helmet Shell
KP4560-1	Lincoln Viking™ 2450/3350 4th Generation Gloss Black Helmet Shell
KP3729-1	Lincoln Split Leather w/ Press Fit Seal Helmet Bib
KP4541-1	Lincoln Soft Cotton Back Pad for X6 Headgear™
