Lincoln K4550-1 Viking™ 3250D FGS PAPR w/ Standard Battery (Welding Helmet)
Lincoln K4550-1 Viking™ 3250D FGS PAPR w/ Standard Battery (Welding Helmet)
In stock
Lincoln K4550-1 Viking™ 3250D FGS PAPR w/ Standard Battery
****Comes with FREE KP3937-1 Battery*****
VIKING 3250D FGS POWERED AIR PURIFYING RESPIRATOR
The NIOSH 42 CFR Part 84 approved loosing fitting positive pressure respirator purifies ambient air from the shop and delivers filtered, breathable air to operator. The top features include intelligent blower system with HEPA filter, integrated grind shield & side windows and an extra-large widescreen 12.5 sq. inch auto-darkening lens with our exclusive 4C® Lens technology.
Features & Benefits
INDUSTRY LEADING OPTICS
4C® LENS TECHNOLOGY
- Broadens the color range & hues which can be seen in both light and dark states
- This eliminates imperfections and color saturation to create the clearest view of the base material, arc and puddle
PERFECT 1/1/1/1 OPTICAL CLARITY
- This rating is determined by measuring blurriness, distortion, shade consistency and angle uniformity of the auto-darkening welding lens
EXTRA LARGE VIEWING AREA
- The 12.5 square inch auto darkening lens provides a large field of view to increase versatility and operator control
MAXIMIZING FIELD OF VIEW
The integrated clear grind shield and shade 5 side windows increase field of view in both the open and closed positions.
PRODUCITIVTY
- The integration of the clear grind shield can reduce setup, inspection and weld time
SAFETY
- The expanded field of vision in both the open and closed positions makes material inspection grinding and general movements less hazardous
INTELLIGENT BLOWER SYSTEM
SUPERIOR BATTERY LIFE
Specifications
Respiratory Specifications |
|
| Compliance Certification | NIOSH 42 CFR Part 84 |
| Classification | Loose Fitting Powered Air Purifying Respirator |
| Assigned Protection Factor(APF) | 25 |
| Filter Type | High Efficiency Particulate Air Filter (HEPA) |
| Air Flow |
|
| Air Flow Adjustment | Automatic and Manual |
| Battery Life |
|
| Battery Charge Time |
|
| Alerts | Audible & Vibratory Alarms for battery life and filter life |
| Size of Blower Assembly | 8 x 7.5 x 3 in (203 x 191 x 76 mm) |
| Belt Size | 29 to 52 in. (736 to 1321 mm) *Extension Available |
Welding Helmet Specifications |
|
|---|---|
| Auto-Darkening Viewing Area | 2.95 in x 4.25 (75 x 108 mm) |
| Optical Class | 1/1/1/1 (per EN 379) |
| Lens Switching Speed | 1/25,000 sec |
| TIG Amp Rating | < 2 Amp |
| Helmet Controls | Digital; Shade, Sensitivity and Delay |
| Variable Shades | Shade 5 to 13 |
| Arc Sensors | 4 |
| Helmet Battery Replacement Type | 2 CR2450 Replaceable Batteries |
| Helmet Compliance | ANSI Z87.1, CSA Z94.3, CE EN379, AS/NZS 1338.1 |
| Warranty |
|

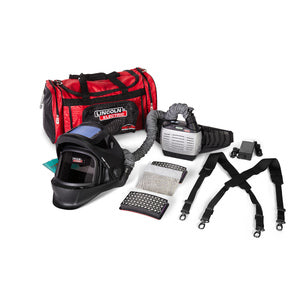

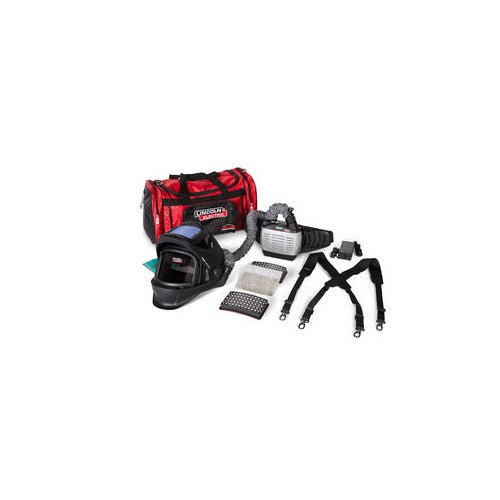

Included
- Viking 3250D FGS PAPR Welding Helmet
- VIKING PAPR Blower Unit
- 29-52 in. Padded Belt
- Hose with FR Cover
- Industrial Duffle Bag
- Instruction Manual
- 1 - Pre Filter
- 1 - Spark screen
- 1 - Standard Capacity Lithium Ion Battery
- 1 - 120V Battery Charger
- 2 - Shoulder Straps
- 2- HEPA Filters
- 7 - FGS Series Clear Cover Lenses
Expendable Parts
| PRODUCT NUMBER | PRODUCT NAME |
| KP3700-1 | Lincoln FGS 3250D Outside Cover Lens (5 Pack) |
| KP3701-1 | Lincoln FGS 3250D Inside Cover Lens (2 Pack) |
| KP3702-1 | Lincoln FGS 3250D Clear Anti-Fog Grind Shield |
| KP3424-2 | Lincoln PAPR Viking HE Filter Assembly (2 Pack) |
| KP3424-6 | Lincoln PAPR Viking HE Filter Assembly (6 Pack) |
| KP3935-1 | Lincoln PAPR Viking Pre-Filter (6 Pack) |
| KP3936-1 | Lincoln PAPR Viking Spark Screen |
| KP3937-1 | Lincoln PAPR Viking Battery Pack - Standard |
| KP3938-1 | Lincoln Viking PAPR Extended Battery |
| KP3932-1 | Lincoln PAPR Viking Battery Charger |
| KP3944-1 | Lincoln PAPR Viking Blower Assembly |
| KP5123-1 | Lincoln PAPR Viking Belt Assembly |
| KP5124-1 | Lincoln PAPR Viking Should Strap Assembly |
| KP3939-1 | Lincoln PAPR Viking Belt Extension |
| KP4473-1 | Lincoln FGS PAPR Headcovering w/ Hook and Loop Attachment |
| KP5122-1 | Lincoln PAPR Viking Hose Assembly |
| KP4474-1 | Lincoln FGS PAPR Welding Helmet Assembly |
| KP4471-1 | Lincoln FGS PAPR Pivot Headgear |
| KP2930-1 | Lincoln Viking All Purpose Sweatband Package |
| KP3703-3 | Lincoln FGS 3250D Series ADF Cartridge |
| KP3705-1 | Lincoln FGS 3250D Side Window Covers |
| KP4472-1 | Lincoln FGS PAPR Helmet Replacement Shell |
