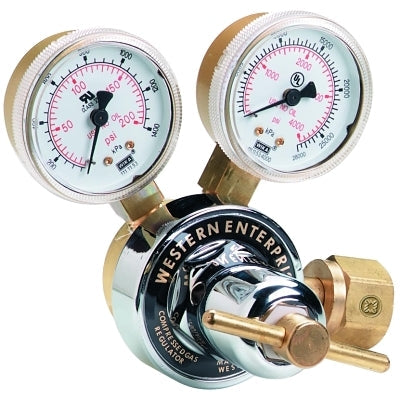

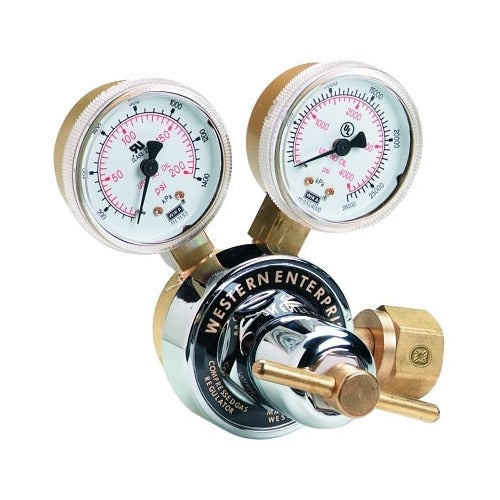

Western Enterprises RS Series Medium Duty Single Stage Air Regulator - CGA 346, 3000 PSI Inlet, 180 PSI Outlet

The Western Enterprises RS Series Medium Duty Single Stage Regulator delivers precise air pressure control for compressed gas applications, featuring a CGA 346 inlet connection and 3,000 psi maximum inlet pressure capacity. Built with a machined brass body and dual inlet filter system, this regulator extends service life while providing reliable pressure reduction for shop air systems.

This single-stage regulator incorporates a neoprene diaphragm and nickel chrome plated zinc bonnet for corrosion resistance in demanding industrial environments. The 2-inch gauge provides clear pressure readings, while the 1/4-inch NPT female outlet connection ensures compatibility with standard compressed air fittings and hoses.

• Body Material: Machined brass construction
• Inlet Connection: CGA 346
• Maximum Inlet Pressure: 3,000 psi
• Outlet Connection: 1/4" NPT female
• Maximum Outlet Pressure: 180 psi
• Flow Capacity: 500 SCFH maximum
• Gauge Size: 2 inches
• Diaphragm Material: Neoprene
• Gas Type: Air
• Dual inlet filter system for extended regulator life

The dual inlet filter system protects internal components from contamination, making this regulator ideal for compressed air applications in welding shops, fabrication facilities, and maintenance operations requiring consistent pressure delivery from high-pressure air cylinders.
