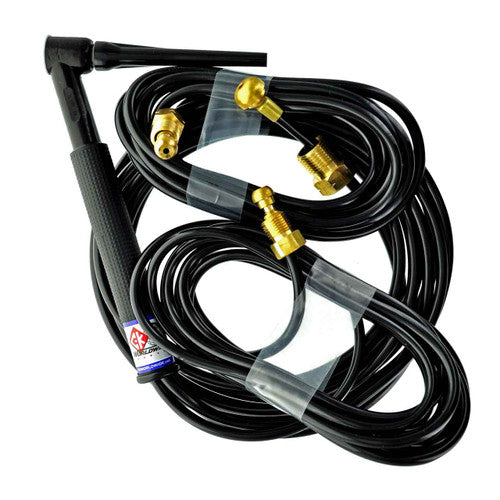

CK Worldwide TL18-12 350 Amp Rigid Head TIG Torch, Water-Cooled, 12.5' Standard Cables, Trim-Line

The CK TL18-12 Trim-Line TIG torch delivers professional-grade performance in a compact, lightweight design for precision welding applications. This water-cooled torch features a rigid head configuration and weighs just 5 oz with an 8" overall length, making it ideal for detailed work where maneuverability and control are essential.

Designed for demanding shop environments, this torch operates at 350 amp ACHF or DCSP at 100% duty cycle, providing consistent performance without thermal limitations. The Max Flow water-cooling technology ensures optimal heat dissipation during extended welding sessions, while the rigid head design offers superior stability for precise electrode positioning.

Key Specifications

• Amperage Rating: 350 amp ACHF or DCSP @ 100% duty cycle
• Head Style: Rigid
• Cooling: Water-cooled with Max Flow technology
• Cable Length: 12.5 feet (3.8m) standard cables
• Weight: 5 oz (141g)
• Overall Length: 8" (20.3cm)
• Series: 3 Series Head Accessories compatibility
• Handle: Trim-Line series for enhanced grip and control

Compatible Consumables

• 300S — Short Back Cap
• 300M — Medium Back Cap
• 300L — Long Back Cap
• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3C418 — 1/8" Collet
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3CB418 — 1/8" Collet Body
• 3A5 — #5 (5/16") Alumina Cup

This torch accommodates tungsten electrodes from 0.020" to 1/4" (0.5mm to 6.4mm) diameter and accepts all standard 3 Series consumables. The TL18-12 is compatible with CK accessory kits AK-2, AK-3, and SGL-KIT series for complete consumable solutions.
