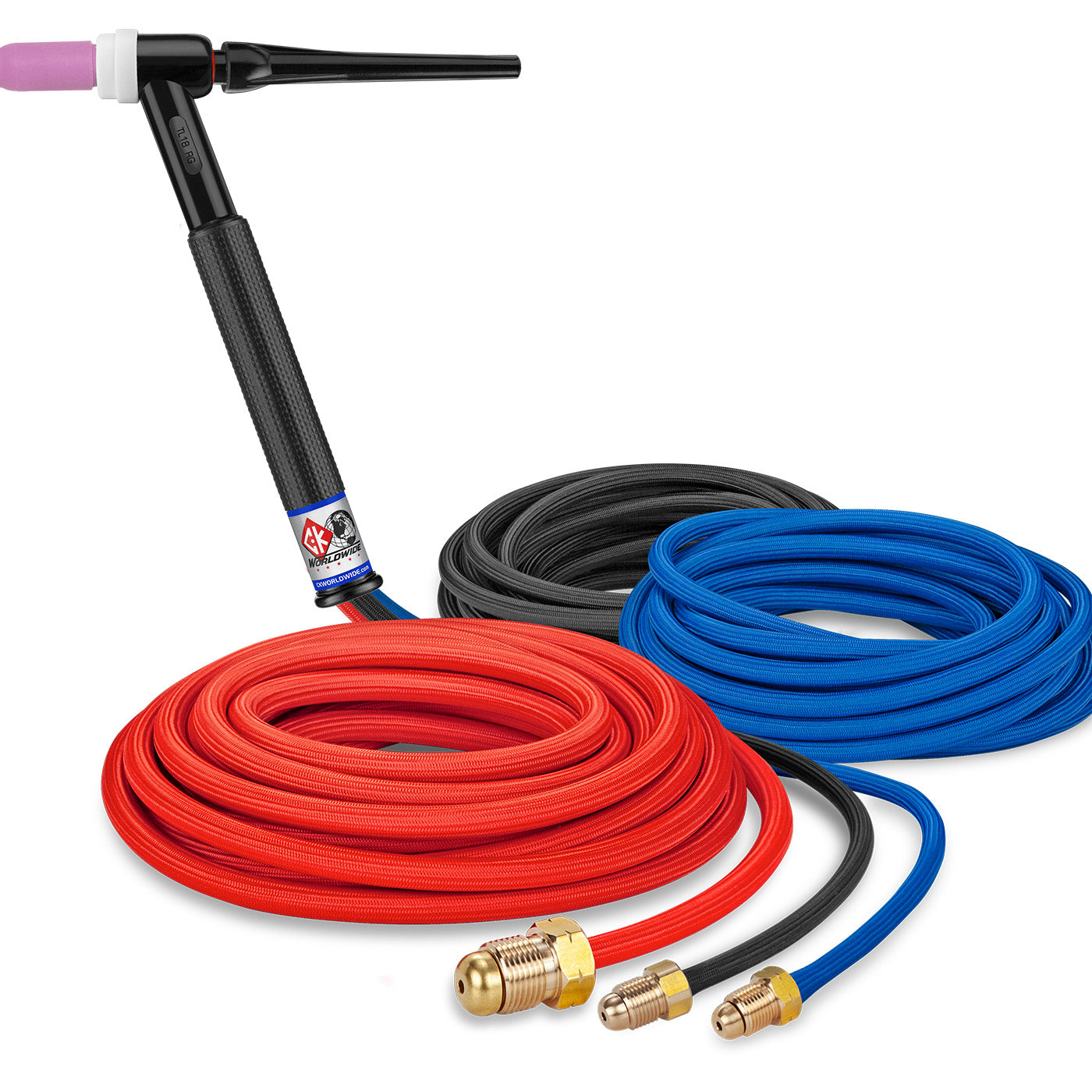

CK Worldwide TL18-25SF - 350 Amp Rigid Head TIG Torch, Water-Cooled, 25' Super-Flex Cables, Trim Line

The TL18-25SF delivers professional-grade TIG welding performance with 350 amp capacity at 100% duty cycle, making it the industry standard for demanding fabrication work. This water-cooled torch features a rigid head design for maximum stability and precision, combined with 25-foot Super-Flex cables that provide exceptional flexibility without compromising durability.

Built with CK's Max Flow cooling technology, this torch maintains optimal operating temperatures during extended welding sessions. The Trim-Line handle offers a slim, ergonomic grip that enhances control while reducing hand fatigue. At just 8 inches long and 5 ounces, the compact design allows for precise positioning in tight spaces without sacrificing power delivery.

• 350 amp ACHF or DCSP @ 100% duty cycle
• Water-cooled with Max Flow technology
• Rigid head for stable, precise welding
• 25-foot Super-Flex cables for maximum flexibility
• Trim-Line handle — slim grip design
• 8-inch length, 5-ounce weight
• 3 Series head accessories compatibility
• No valve — streamlined design

Compatible Consumables

• 3A4 — #4 Alumina Cup (1/4" 6.4mm)
• 3A5 — #5 Alumina Cup (5/16" 8.0mm)
• 3A6 — #6 Alumina Cup (3/8" 9.6mm)
• 3A7 — #7 Alumina Cup (7/16" 11.1mm)
• 3A8 — #8 Alumina Cup (1/2" 12.8mm)
• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3C418 — 1/8" (3.2mm) Collet
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body

This torch accepts tungsten electrodes from .020" to 1/4" (0.5mm to 6.4mm) and uses standard 3 Series consumables, making it compatible with existing shop inventory. Perfect for precision TIG applications in stainless steel, aluminum, and exotic alloy fabrication.
