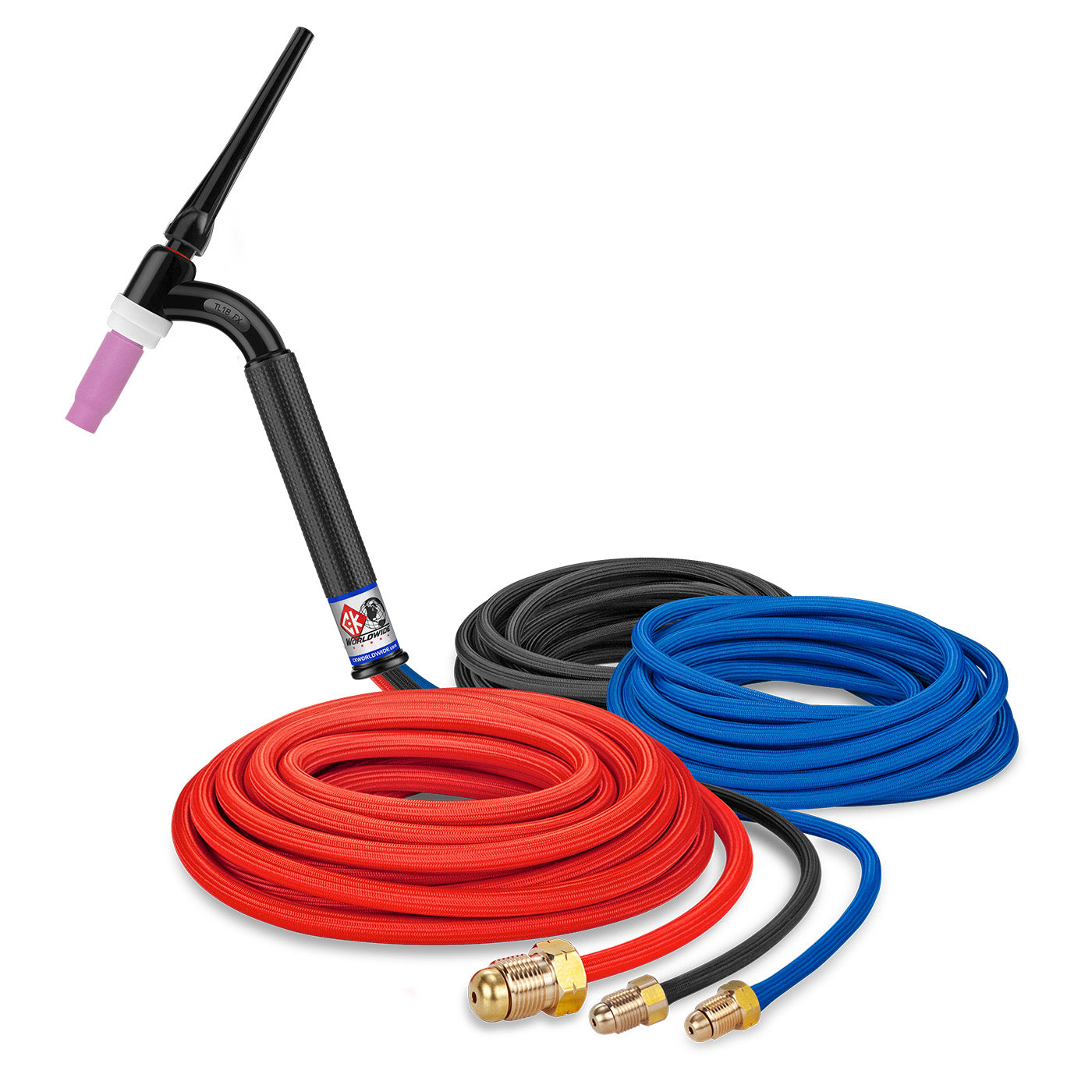

CK Worldwide TL18-25SF FX - 350 Amp Flex Head TIG Torch, Water-Cooled, 25' Super-Flex Cables, Trim Line

The TL18-25SF FX delivers professional-grade TIG welding performance with its 350 amp rating at 100% duty cycle and innovative flex-head design. This water-cooled torch features CK Worldwide's signature 40-degree flexible head positioning, 25-foot Superflex cables for maximum mobility, and streamlined Trim-Line construction without an integrated valve.

Built with CK's Max Flow cooling technology, this torch maintains optimal operating temperatures during extended welding sessions. The Superflex cable system provides exceptional flexibility while the Trim-Line handle offers a slim profile for enhanced control and maneuverability in tight spaces.

• Amperage Rating: 350 amp ACHF or DCSP @ 100% duty cycle
• Cooling System: Water-cooled with Max Flow technology
• Head Style: Flex head with 40-degree positioning
• Cable Length: 25 feet (7.6m) Superflex construction
• Overall Length: 8" (20.3cm)
• Weight: 5 oz (141g)
• Handle Type: Trim-Line series (no integrated valve)
• Thread Pattern: 3/8" x 32 for 3 Series accessories
• Tungsten Compatibility: .020" to 1/4" (0.5mm to 6.4mm)

Compatible Consumables

• 3A5 — #5 Alumina Cup
• 3A6 — #6 Alumina Cup
• 3A8 — #8 Alumina Cup
• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3C418 — 1/8" Collet
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3CB418 — 1/8" Collet Body
• 300L — Long Back Cap

This torch accepts all 3 Series consumables and accessories, making it compatible with a wide range of TIG welding applications from precision work to heavy fabrication. The water-cooled design with Superflex cables makes it ideal for production welding environments requiring extended duty cycles and operator mobility.
