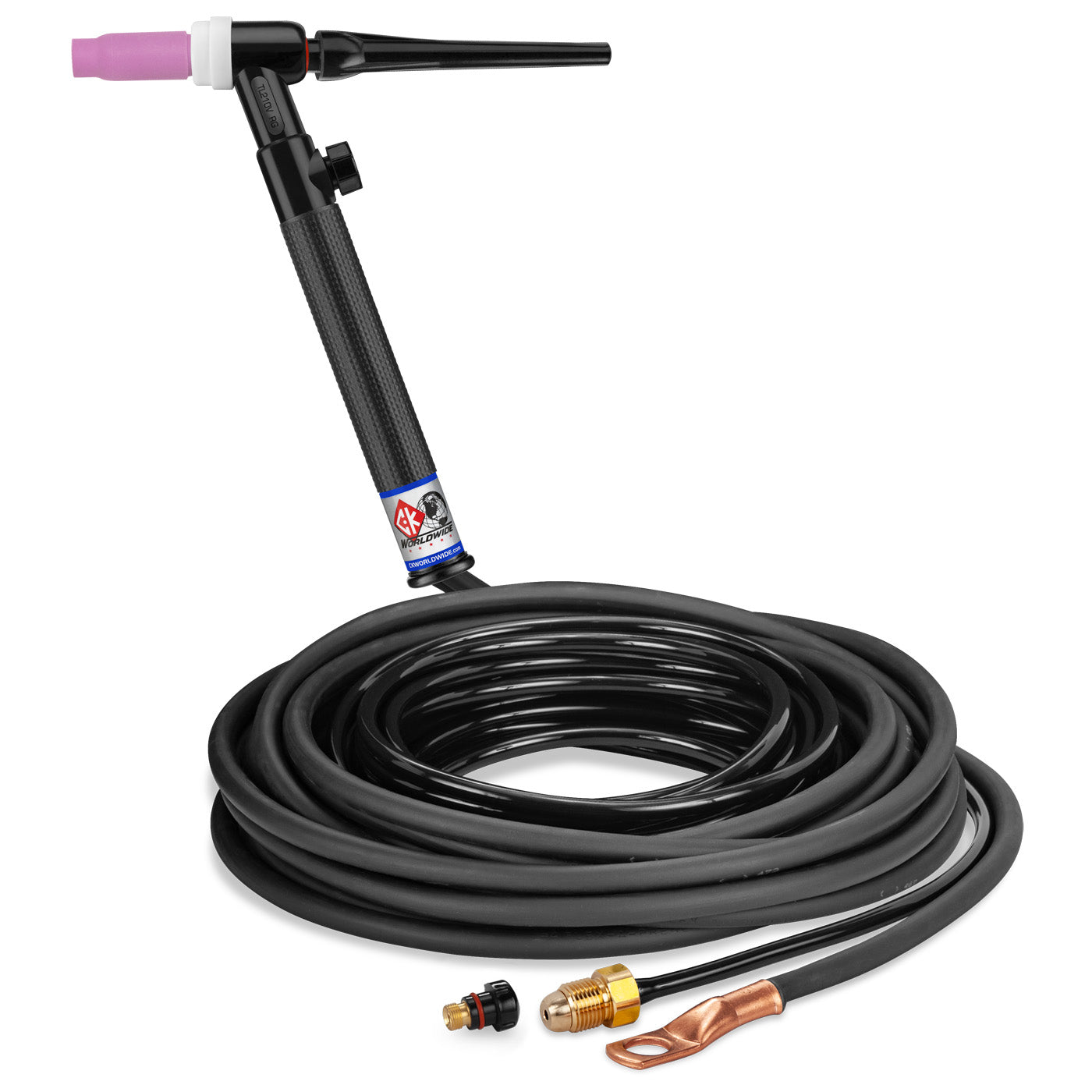

CK Worldwide TL2125VN RG - 200 Amp Rigid Head TIG Torch with Valve, Gas-Cooled, 12.5' Standard Cable

The TL2125VN RG delivers professional-grade TIG welding performance with 200 amp capacity at 100% duty cycle for demanding fabrication work. This gas-cooled torch features a rigid head design with integrated valve control and CK's signature Trim Line handle for enhanced comfort and precision during extended welding sessions.

Built for reliability in industrial environments, this torch combines CK's proven 3-series consumable system with standard cables that provide dependable power delivery. The valve-equipped handle allows for convenient gas flow control directly at the torch, reducing the need for remote controls and improving workflow efficiency.

• Amperage Rating: 200 amp ACHF or DCSP at 100% duty cycle
• Cooling Type: Gas-cooled for maximum heat dissipation
• Head Style: Rigid with integrated valve
• Cable Length: 12.5 feet with standard construction
• Handle Design: Trim Line ergonomic grip for enhanced control
• Duty Cycle: 100% continuous operation capability
• Thread Pattern: 3/8" x 32 for standard 3-series consumables

Compatible Consumables

• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3C418 — 1/8" (3.2mm) Collet
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3CB418 — 1/8" (3.2mm) Collet Body
• 3A5 — #5 (5/16" 8.0mm) Alumina Cup
• 3A6 — #6 (3/8" 9.6mm) Alumina Cup
• 3A8 — #8 (1/2" 12.8mm) Alumina Cup
• 300L — Long Backcap

This torch is compatible with standard welding power sources equipped with 7/8" x 14RH connections and works with the complete range of 3-series consumables for versatile material applications from thin gauge work to heavy structural welding.
