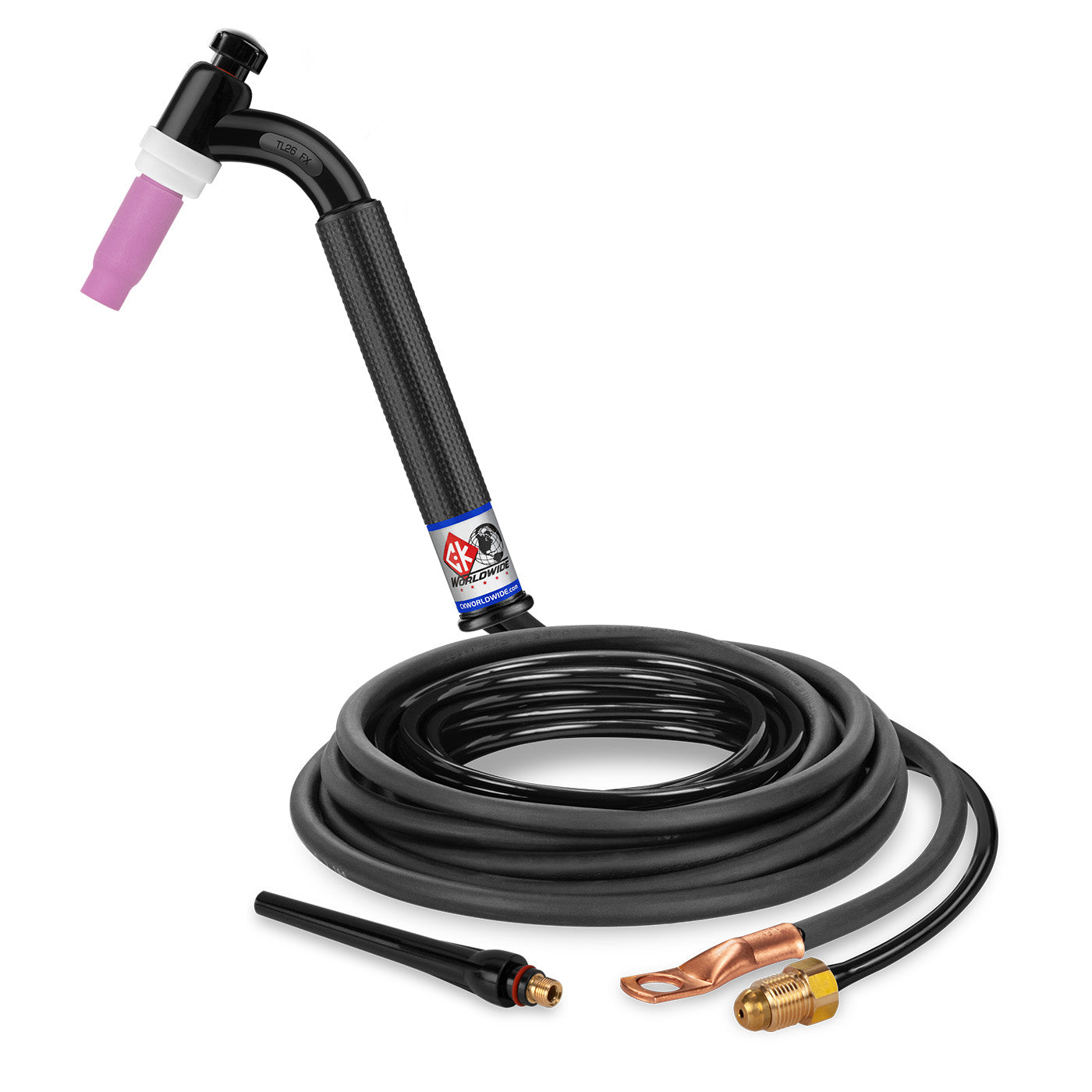

CK Worldwide TL26-12-2 FX TIG Torch - 200 Amp Gas-Cooled Flex Head, 12.5' Cable

The TL26-12-2 FX delivers professional TIG welding performance with CK Worldwide's signature flex head technology, providing 40 degrees of articulation in any direction for enhanced access in tight spaces. This 200 amp gas-cooled torch operates at 100% duty cycle on both AC high frequency and DC straight polarity applications.

Featuring a streamlined design without a valve, this torch utilizes standard 2-piece cables for reliable power delivery and shielding gas flow. The Trim-Line handle offers a slim profile that enhances control and reduces operator fatigue during extended welding sessions.

• Amperage Rating: 200 amp ACHF or DCSP @ 100% duty cycle
• Head Style: Flex (40-degree articulation)
• Cable Configuration: 2-piece, 12.5 ft. standard cables
• Cooling Type: Gas-cooled for maximum heat dissipation
• Handle Type: Trim-Line series with slim grip design
• Power Connection: 7/8" x 14RH thread pattern
• Overall Length: 8-1/8" (20.6cm)
• Weight: 5 oz (141gm)

Compatible Consumables

• 3A4 — #4 (1/4") Alumina Cup
• 3A5 — #5 (5/16") Alumina Cup
• 3A6 — #6 (3/8") Alumina Cup
• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3C418 — 1/8" Collet
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3CB418 — 1/8" Collet Body
• 300L — Long Back Cap

This torch uses 3 Series head accessories and is compatible with CK Worldwide's comprehensive line of consumables for precise tungsten electrode control and consistent arc performance across aluminum, steel, and stainless steel applications.
