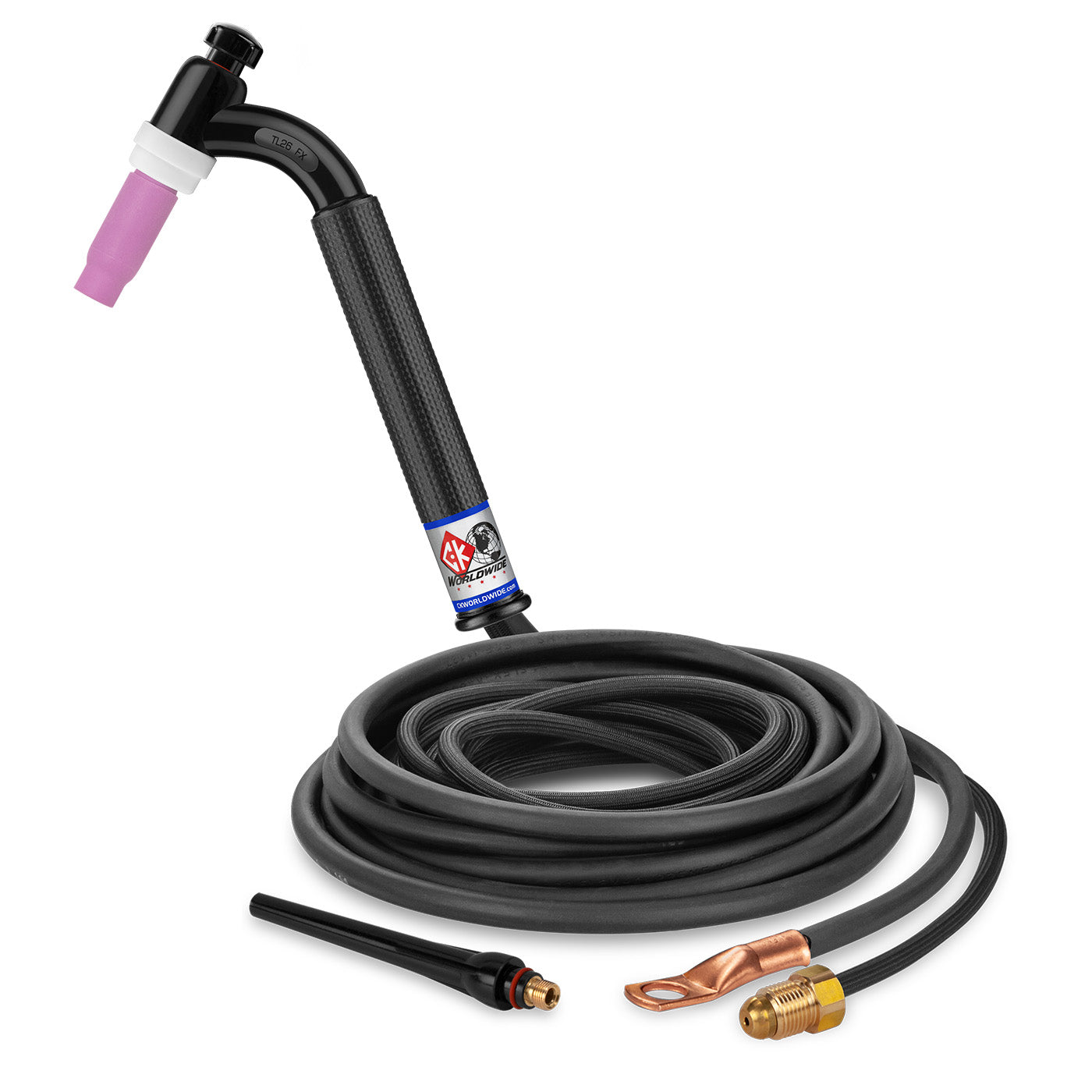

CK Worldwide TL26-12-2SF FX - 200 Amp Flex Head TIG Torch, Gas-Cooled, 12.5' Superflex Cables

The CK TL26-12-2SF FX delivers 200 amp ACHF or DCSP @ 100% duty cycle with CK's signature flex head technology, providing 40 degrees of articulation in any direction for superior access in tight welding positions. This gas-cooled TIG torch features 12.5-foot superflex cables and CK's streamlined Trim-Line handle design for enhanced control and comfort.

• 200 amp rating at 100% duty cycle for continuous operation
• Flex head provides 40° versatility in any direction
• Gas-cooled design for maximum heat dissipation
• 12.5-foot superflex cables for maximum flexibility
• 2-piece cable construction for easy replacement
• Trim-Line handle offers slim grip profile
• 7/8" x 14RH power cable connections
• 8-1/8" overall length, weighs 5 oz
• 3 Series head accessories compatibility
• No gas valve for streamlined operation

Compatible Consumables

• 3A4 — #4 Alumina Cup (1/4")
• 3A5 — #5 Alumina Cup (5/16")
• 3A6 — #6 Alumina Cup (3/8")
• 3A8 — #8 Alumina Cup (1/2")
• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 300L — Long Backcap
• 300S — Short Backcap

Ideal for precision TIG welding applications requiring torch maneuverability, this torch accommodates the full range of 3 Series consumables and tungsten electrodes from .040" to 1/8" diameter. The flex head design makes it particularly valuable for pipe welding, fabrication work, and accessing difficult joint configurations.
