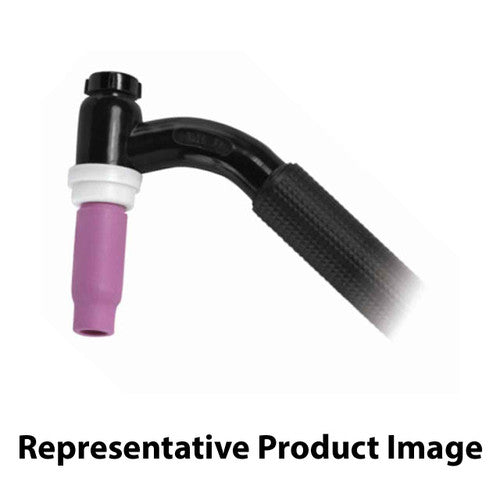

CK Worldwide TL26-12-R FX 200 Amp Flex Head TIG Torch, Gas-Cooled, 12.5' Cable

The TL26-12-R FX delivers professional TIG welding performance with CK Worldwide's signature flex head design, providing 40 degrees of articulation in any direction for enhanced access in tight welding positions.

This gas-cooled torch features a streamlined design without a valve, reducing bulk while maintaining the reliability demanded in production environments. The 200 amp rating at 100% duty cycle on both AC high frequency and DC straight polarity ensures consistent performance throughout extended welding sessions.

• 200 amp capacity — ACHF or DCSP at 100% duty cycle
• Flex head design — 40-degree articulation in any direction
• Gas-cooled operation — Optimal heat dissipation for sustained use
• 12.5-foot cable length — Standard single-piece configuration
• Trim-Line handle — Slim grip profile for enhanced control
• 3 Series head accessories — Wide selection of consumables available
• 7/8" x 14RH power connections — Industry-standard threading
• Compact dimensions — 8-1/8" overall length, 5 oz weight

Compatible Consumables

• 3A4 — #4 (1/4") Alumina Cup
• 3A5 — #5 (5/16") Alumina Cup
• 3A6 — #6 (3/8") Alumina Cup
• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3C418 — 1/8" Collet
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3CB418 — 1/8" Collet Body
• 300L — Long Back Cap

Designed for professional welders requiring precision control in confined spaces, this torch accepts the full range of 3 Series consumables and accessories. The flex head capability makes it ideal for pipe welding, structural fabrication, and repair applications where torch positioning is critical.
