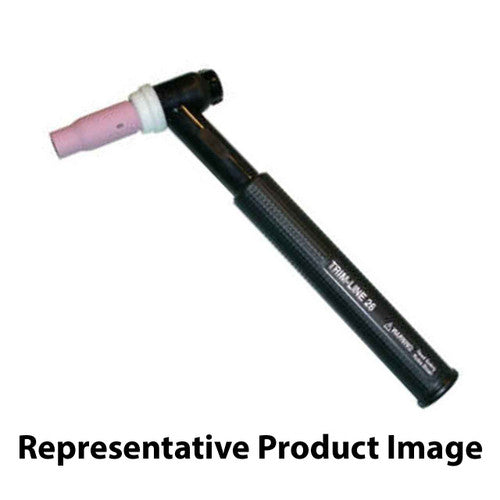

CK Worldwide TL26-12-R RG 200 Amp Gas-Cooled TIG Torch with Rigid Head, 12.5' Cable

The TL26-12-R RG delivers reliable 200-amp performance in a rigid-head configuration designed for precision TIG welding applications. This gas-cooled torch features CK Worldwide's Trim-Line handle design for enhanced control and operator comfort during extended welding sessions.

Built for demanding shop environments, this torch operates at 200 amp ACHF or DCSP @ 100% duty cycle, ensuring consistent performance without overheating concerns. The rigid head design provides superior arc stability and precise electrode positioning, while the 12.5-foot standard cable offers adequate reach for most workstation setups.

• Amperage Rating: 200 amp ACHF or DCSP @ 100% duty cycle
• Cooling Type: Gas-cooled for reliable heat dissipation
• Head Style: Rigid for maximum stability and precision
• Cable Length: 12.5 feet (3.8m) standard configuration
• Handle Design: Trim-Line series with slim grip profile
• Power Connection: 7/8" x 14RH threads
• Weight: 5 oz (141gm)
• Overall Length: 8-1/8" (20.6cm)

Compatible Consumables

• 3A4 — #4 (1/4") Alumina Cup
• 3A5 — #5 (5/16") Alumina Cup
• 3A6 — #6 (3/8") Alumina Cup
• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 300L — Long Backcap
• 300S — Short Backcap
• 3GL116 — 1/16" Gas Lens

This torch is compatible with 3 Series accessories and works with standard CK Worldwide consumables. The streamlined design without an integrated valve makes it ideal for welders who prefer machine-controlled gas flow or remote amperage control setups.
