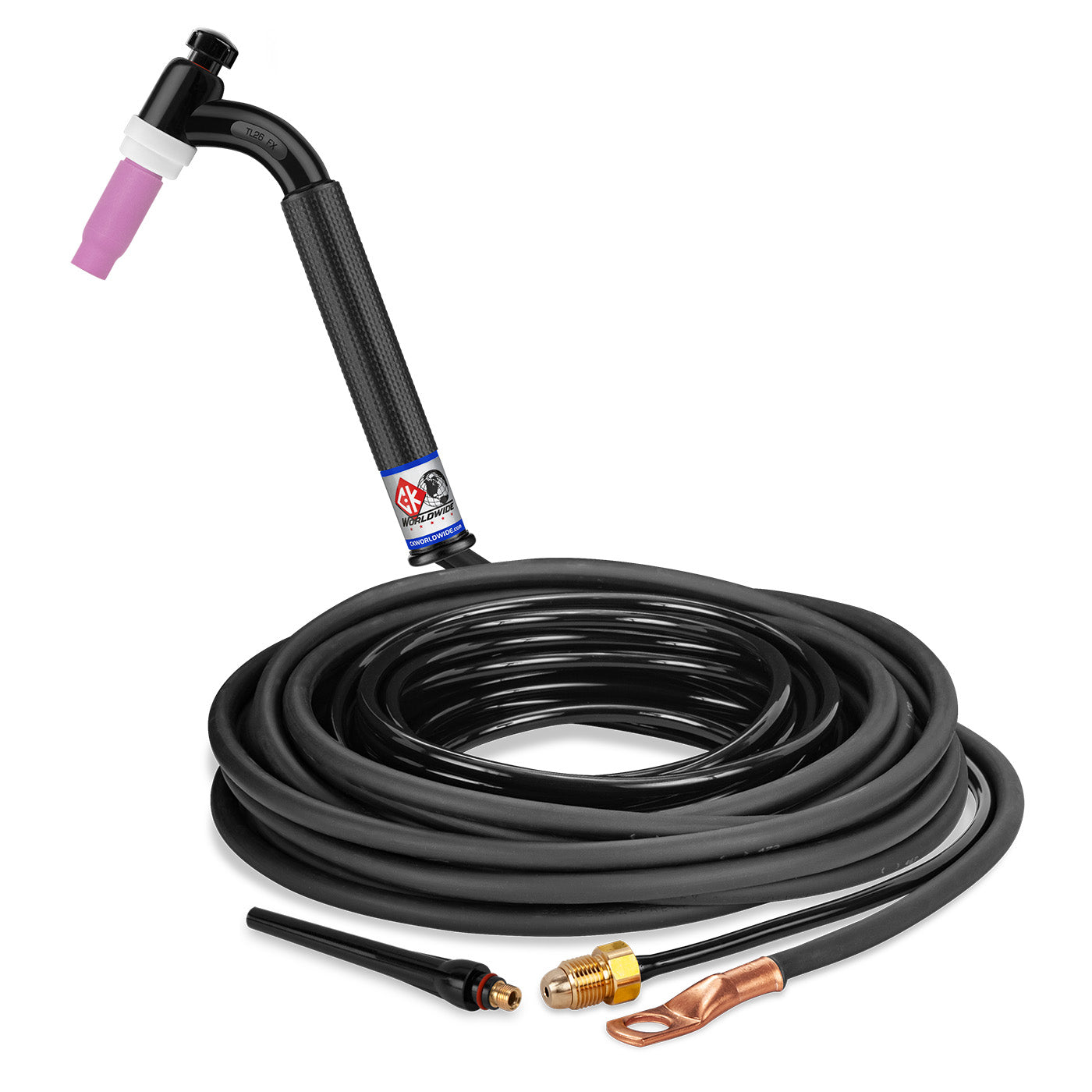

CK Worldwide TL26-25-2 FX - 200 Amp Flex Head TIG Torch, Gas-Cooled, 25' 2-Piece Cables, Trim-Line

The CK Worldwide TL26-25-2 FX delivers professional-grade TIG welding performance with its signature flex head design that articulates 40 degrees in any direction for maximum accessibility in tight spaces. This 200 amp ACHF or DCSP @ 100% duty cycle torch features gas cooling for efficient heat dissipation and comes equipped with 25-foot standard cables in a convenient 2-piece configuration.

Built for demanding fabrication environments, this Trim-Line series torch combines precision control with enhanced maneuverability. The streamlined design eliminates the valve for a cleaner workspace experience, while the ergonomic Trimline handle provides superior grip control for extended welding sessions.

• 200 amp ACHF or DCSP @ 100% duty cycle rating
• 40-degree flex head articulation for optimal positioning
• Gas-cooled design for maximum heat dissipation
• 25-foot standard cables in 2-piece configuration
• 8-1/8" overall length with 5 oz weight
• 7/8" x 14RH power cable connections
• 3 Series head accessories compatibility
• Trim-Line series ergonomic handle design

Compatible Consumables

• 3A4 — #4 Alumina Cup
• 3A5 — #5 Alumina Cup
• 3A6 — #6 Alumina Cup
• 3CB40 — .040" Collet Body
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3C40 — .040" Collet
• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 300L — Long Backcap

This torch is compatible with all 3 Series consumables and accessories, making it ideal for professional welders working on steel, stainless steel, and aluminum applications requiring precise control and maximum joint access.
