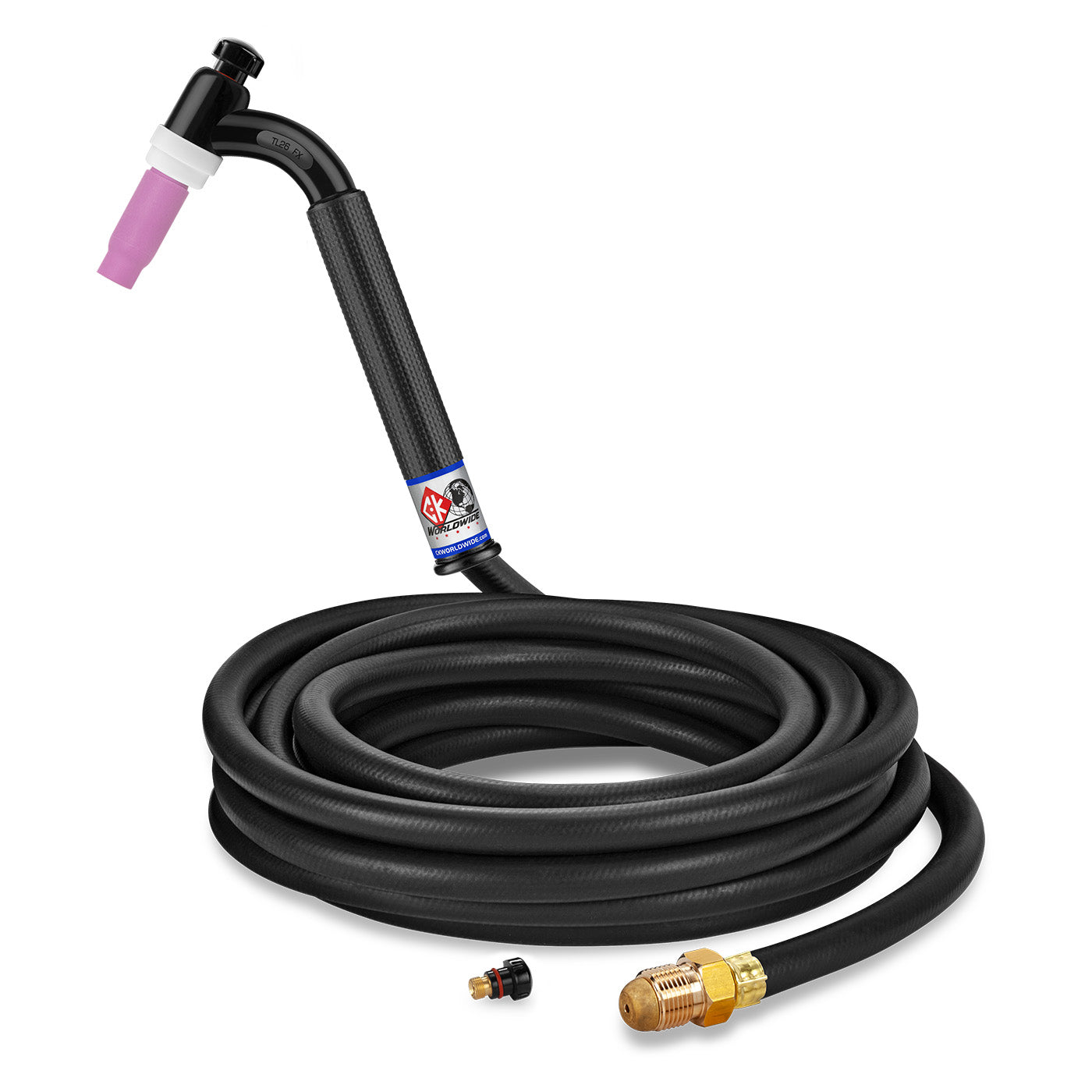

CK Worldwide TL26-25-R FX 200 Amp Flex Head TIG Torch, Gas-Cooled, 25' Cable

The TL26-25-R FX delivers professional TIG welding performance with CK Worldwide's signature flex head design, providing 40 degrees of articulation in any direction for superior access in tight spaces. This 200 amp gas-cooled torch operates at 100% duty cycle on both AC high frequency and DC straight polarity applications.

Built with standard 25-foot cables and featuring the streamlined Trim-Line handle design, this torch offers enhanced control and maneuverability without the bulk of an integrated valve. The flex head construction maintains excellent durability while allowing welders to position the torch head precisely where needed, making it ideal for complex fabrication work and confined area welding.

• 200 amp rating — ACHF or DCSP at 100% duty cycle
• Flex head design — 40° articulation in any direction
• Gas-cooled — Optimized for maximum heat dissipation
• 25-foot standard cables — Single-piece construction
• Trim-Line handle — Slim grip profile for enhanced control
• No valve — Streamlined design reduces weight and complexity
• 3 Series head accessories — Compatible with full range of consumables
• 7/8" x 14RH power connections

Compatible Consumables

• 3A4 — #4 Alumina Cup
• 3A5 — #5 Alumina Cup
• 3A6 — #6 Alumina Cup
• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 300L — Long Back Cap
• 300S — Short Back Cap
• 3GL116 — 1/16" Gas Lens

This torch accepts the complete range of 3 Series consumables and is compatible with TL26 series accessories. The flex head design makes it particularly valuable for pipe welding, structural work, and applications requiring precise torch positioning in challenging orientations.
