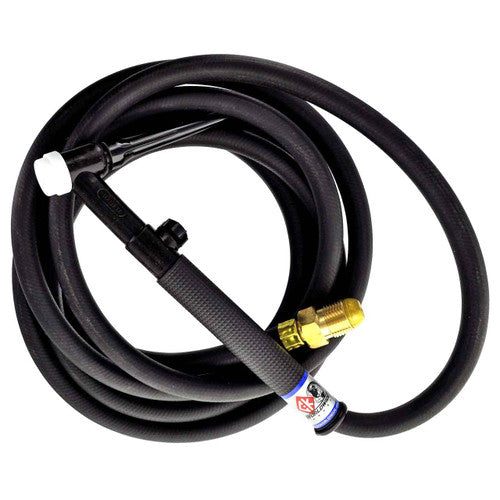

CK Worldwide TL26V-12-R FX 200 Amp Flex Head TIG Torch with Valve, Gas-Cooled, 12.5' Cable

The TL26V-12-R FX combines CK Worldwide's proven Trim-Line series with a flexible head design and integrated gas valve for maximum welding versatility. This gas-cooled torch delivers 200 amp capacity at 100% duty cycle for demanding fabrication work.

Built with CK's signature flex head technology, this torch provides 40 degrees of articulation in any direction, allowing welders to reach challenging joint positions without compromising ergonomics. The integrated valve on the handle enables precise gas flow control directly at your fingertips, while the slim Trim-Line handle design reduces hand fatigue during extended welding sessions.

• 200 amp ACHF or DCSP @ 100% duty cycle
• Flex head with 40-degree range of motion
• Integrated gas valve on handle
• Gas-cooled design for optimal heat dissipation
• 12.5 ft standard cable length
• 3 Series head accessories compatibility
• 7/8" x 14RH power cable connections
• 8-1/8" (20.6cm) overall length
• 5 oz (141gm) weight

Compatible Consumables

• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3C418 — 1/8" Collet
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3CB418 — 1/8" Collet Body
• 3A5 — #5 Alumina Cup
• 3A6 — #6 Alumina Cup
• 3A8 — #8 Alumina Cup
• 300L — Long Backcap

This torch is designed for professional welders working on precision TIG applications where joint access and gas control are critical. Compatible with CK17, CK18, CK26, TL18, and TL26 series torches using 3 Series consumables.
