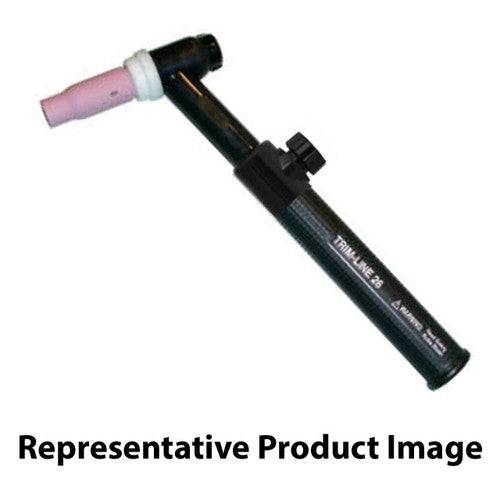

CK Worldwide TL26V-12-R RG 200 Amp Gas-Cooled TIG Torch with Valve, 12.5' Cable

The CK TL26V-12-R RG delivers professional-grade TIG welding performance with 200 amp capacity at 100% duty cycle for demanding fabrication work. This gas-cooled torch features a rigid head design with integrated valve control for precise gas flow adjustment directly at the handle.

Built on CK's proven Trim-Line platform, this torch combines a slim ergonomic grip with reliable 12.5-foot standard cables and 7/8" x 14RH power connections. The rigid head configuration ensures stable arc control for precision welding applications, while the integrated valve eliminates the need for remote gas flow controls.

• Amperage Rating: 200 amp ACHF or DCSP at 100% duty cycle
• Cooling Type: Gas-cooled for heat dissipation
• Head Style: Rigid with integrated valve
• Cable Length: 12.5 feet (3.8m)
• Cable Type: 1-piece standard construction
• Handle: Trim-Line slim profile design
• Power Connection: 7/8" x 14RH thread pattern
• Series Compatibility: 3 Series head accessories
• Weight: 5 oz (141gm) torch head
• Overall Length: 8-1/8" (20.6cm)

Compatible Consumables

• 3A4 — #4 (1/4") Alumina Cup
• 3A5 — #5 (5/16") Alumina Cup
• 3A6 — #6 (3/8") Alumina Cup
• 3CB40 — .040" (1.0mm) Collet Body
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3C40 — .040" (1.0mm) Collet
• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 300L — Long Backcap

This torch accepts all standard 3 Series consumables and accessories, making it compatible with existing TIG welding setups. The 12.5-foot cable length provides excellent mobility for shop and field applications while maintaining consistent performance across AC high frequency and DC straight polarity welding processes.
