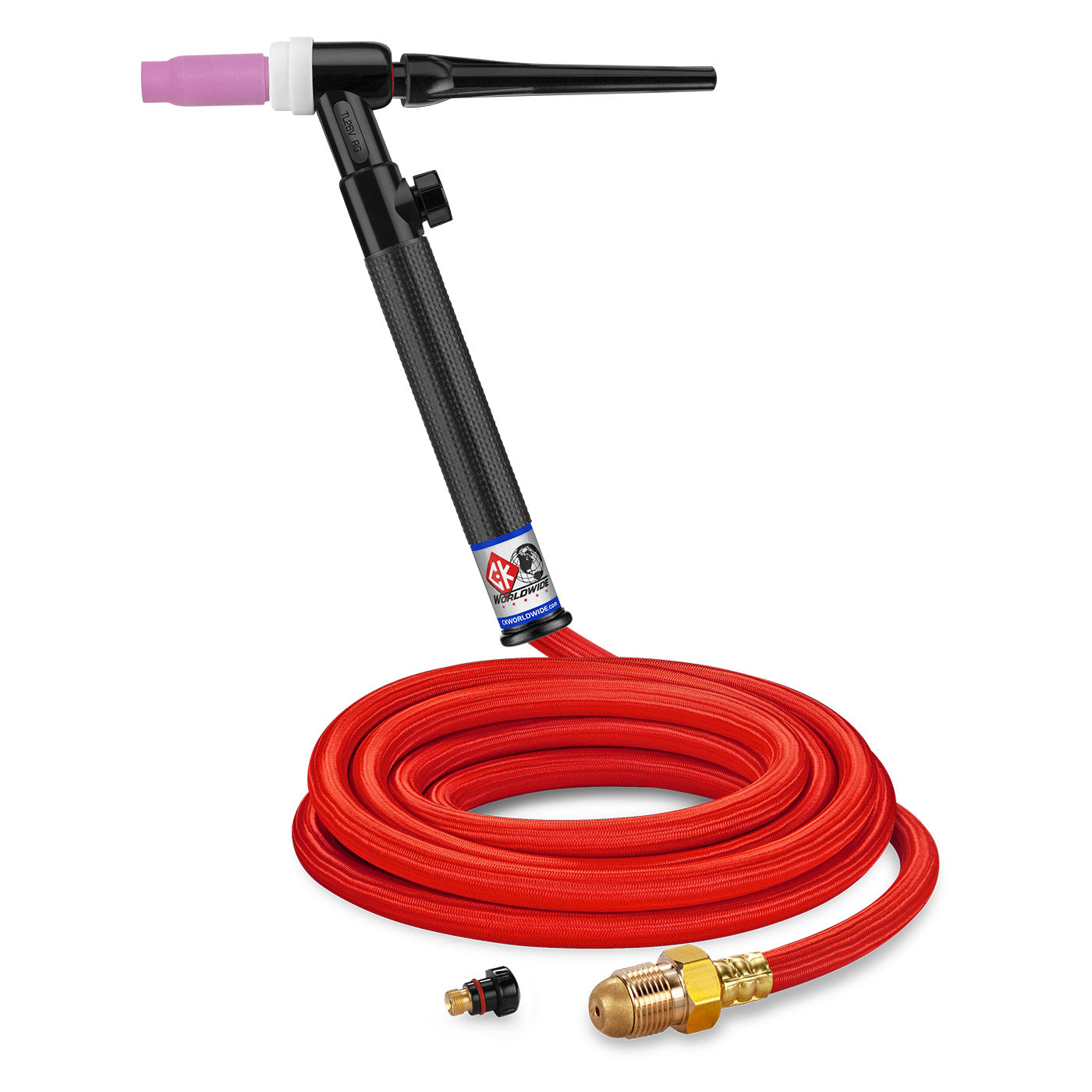

CK Worldwide TL26V-12-RSF FX - 200 Amp Flex Head TIG Torch with Valve, Gas-Cooled, 12.5' SuperFlex, Trim-Line

The CK Worldwide TL26V-12-RSF FX delivers professional-grade TIG welding performance with its 200 amp capacity at 100% duty cycle and distinctive flex head design that articulates 40 degrees in any direction for superior access in tight welding positions.

This gas-cooled torch features an integrated valve on the handle for precise gas flow control, eliminating the need for remote gas controls. The Superflex cable construction provides maximum flexibility while maintaining durability in demanding shop environments. The Trim-Line ergonomic handle offers a slim grip profile that reduces fatigue during extended welding sessions.

• Amperage Rating: 200 amp ACHF or DCSP at 100% duty cycle
• Head Style: Flex head with 40-degree articulation plus integrated valve
• Cable Length: 12.5 feet
• Cable Type: Superflex for enhanced flexibility
• Cooling: Gas-cooled for maximum heat dissipation
• Handle: Trim-Line slim grip design
• Power Connection: 7/8" x 14RH thread pattern
• Weight: 5 oz (141gm) excluding cable
• Overall Length: 8-1/8" (20.6cm)

Compatible Consumables

• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3C418 — 1/8" Collet
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3CB418 — 1/8" Collet Body
• 3A5 — #5 Alumina Cup
• 3A6 — #6 Alumina Cup
• 3A8 — #8 Alumina Cup
• 300L — Long Back Cap

Compatible with 3 Series head accessories and designed for CK17, CK18, and CK26 torch series. The flex head capability makes this torch ideal for orbital welding applications, pipe welding, and fabrication work requiring precise torch positioning in confined spaces.
