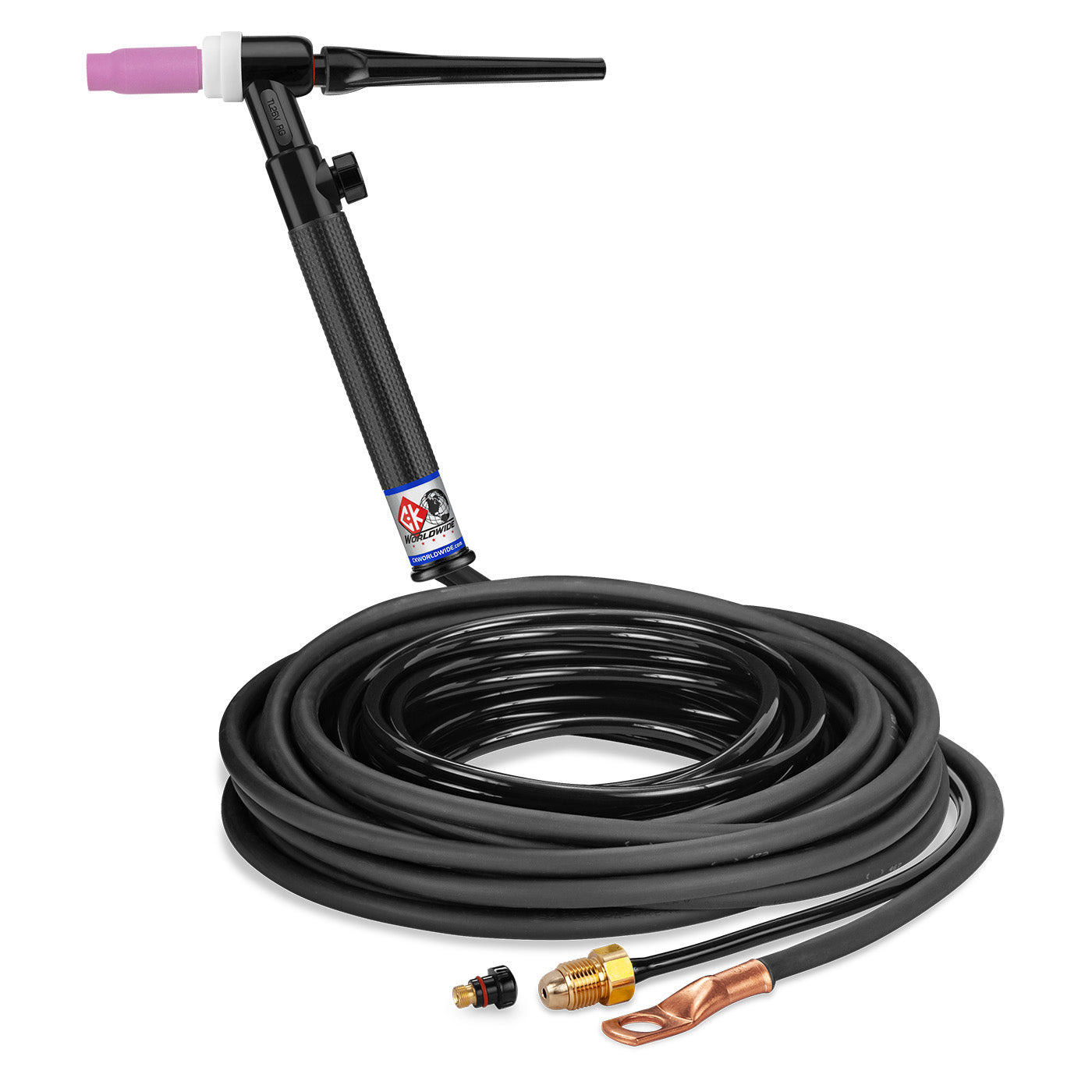

CK Worldwide TL26V-25-2 RG 200 Amp Rigid Head TIG Torch with Valve, Gas-Cooled, 25' Cable

The TL26V-25-2 RG delivers professional-grade TIG welding performance with 200 amp capacity at 100% duty cycle on AC high frequency or DC straight polarity applications. This gas-cooled torch features a rigid head design with integrated valve control for precise gas flow management directly at the handle.

Built with CK's Trim-Line ergonomics, this torch provides superior control and reduced hand fatigue during extended welding sessions. The 25-foot standard cable configuration offers excellent reach for shop and field applications while maintaining reliable power transmission through 7/8" x 14RH power cable connections.

• 200 amp ACHF or DCSP @ 100% duty cycle rating
• Gas-cooled design for efficient heat dissipation
• Rigid head with valve for stable arc control and gas flow management
• 25-foot standard cables for extended reach
• Trim-Line handle with slim grip design
• 8-1/8" (20.6cm) overall length
• 5 oz (141gm) weight for reduced operator fatigue
• 3 Series head accessories compatibility

Compatible Consumables

• 3C40 — .040" (1.0mm) Collet
• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3CB40 — .040" (1.0mm) Collet Body
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3A5 — #5 (5/16" 8.0mm) Alumina Cup
• 3A6 — #6 (3/8" 9.6mm) Alumina Cup
• 300S — Short Backcap
• 300L — Long Backcap

This torch accepts standard 3 Series consumables and accessories, making it compatible with existing shop inventory. Ideal for precision TIG welding on steel, stainless steel, and aluminum applications where arc stability and operator comfort are essential.
