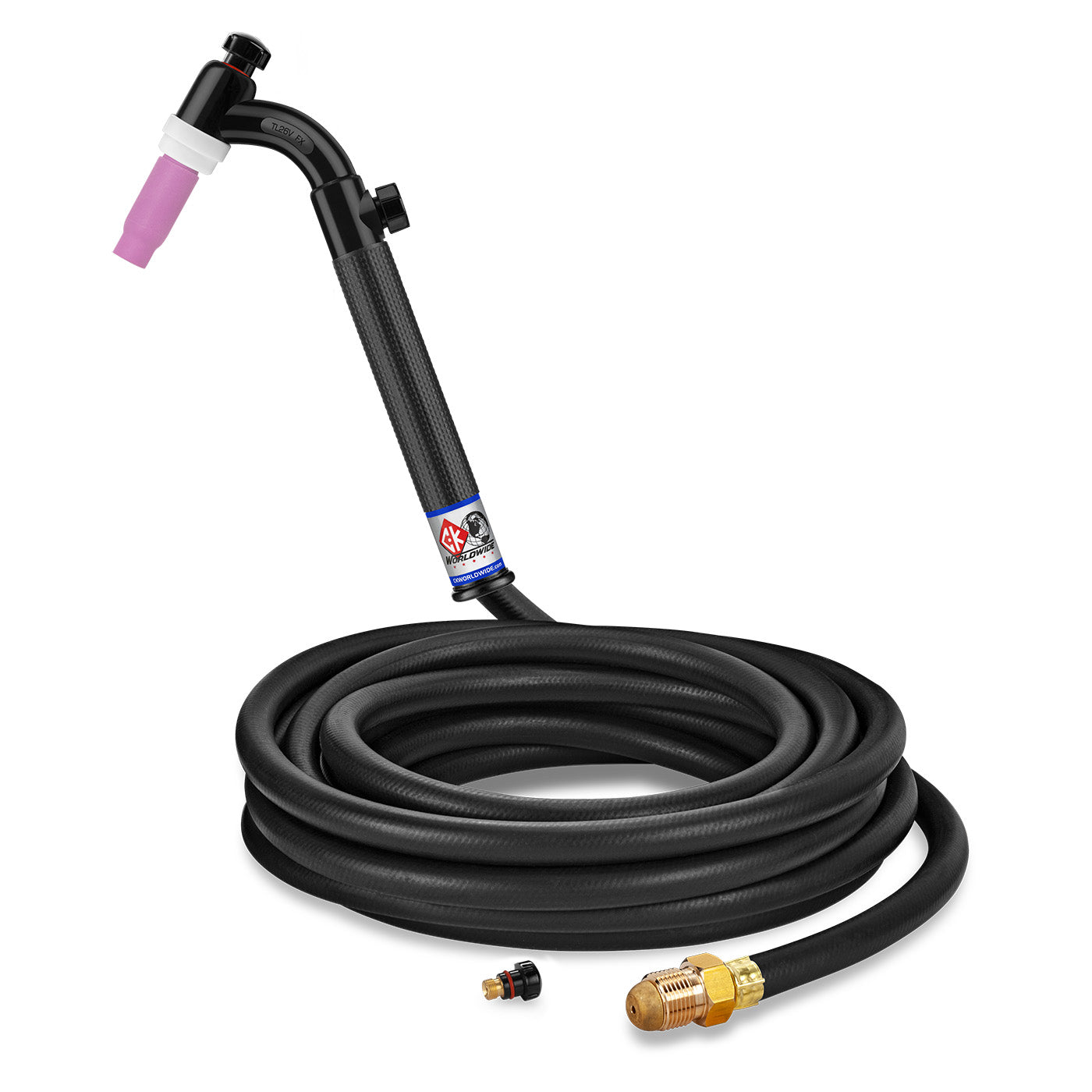

CK Worldwide TL26V-25-R FX 200 Amp Flex Head TIG Torch with Valve, Gas-Cooled, 25' Cable

The CK TL26V-25-R FX delivers professional-grade TIG welding performance with CK Worldwide's signature flex head technology and integrated valve control. This gas-cooled torch provides 200 amp capacity at 100% duty cycle for demanding fabrication work, while the flex head allows 40 degrees of articulation in any direction for superior access in tight welding positions.

The integrated valve on the handle provides immediate gas flow control at your fingertips, eliminating the need to reach back to your welding machine. Built with CK's Trim-Line ergonomic handle design, this torch offers enhanced control and reduced operator fatigue during extended welding sessions.

• Amperage Rating: 200 amp ACHF or DCSP @ 100% duty cycle
• Cooling Type: Gas-cooled for maximum heat dissipation
• Head Style: Flex head with 40-degree articulation plus integrated valve
• Cable Length: 25 feet with standard 1-piece cable configuration
• Handle: Trim-Line series ergonomic grip
• Connection: 7/8" x 14RH power cable connections
• Overall Length: 8-1/8" (20.6cm)
• Weight: 5 oz (141gm)
• Compatibility: 3 Series head accessories

Compatible Consumables

• 3A4 — #4 Alumina Cup
• 3A5 — #5 Alumina Cup
• 3A6 — #6 Alumina Cup
• 3C40 — .040" Collet
• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3CB40 — .040" Collet Body
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 300L — Long Backcap

Ideal for precision TIG welding applications requiring both flexibility and valve control, this torch excels in aerospace, automotive, and general fabrication work where access and gas flow control are critical.
