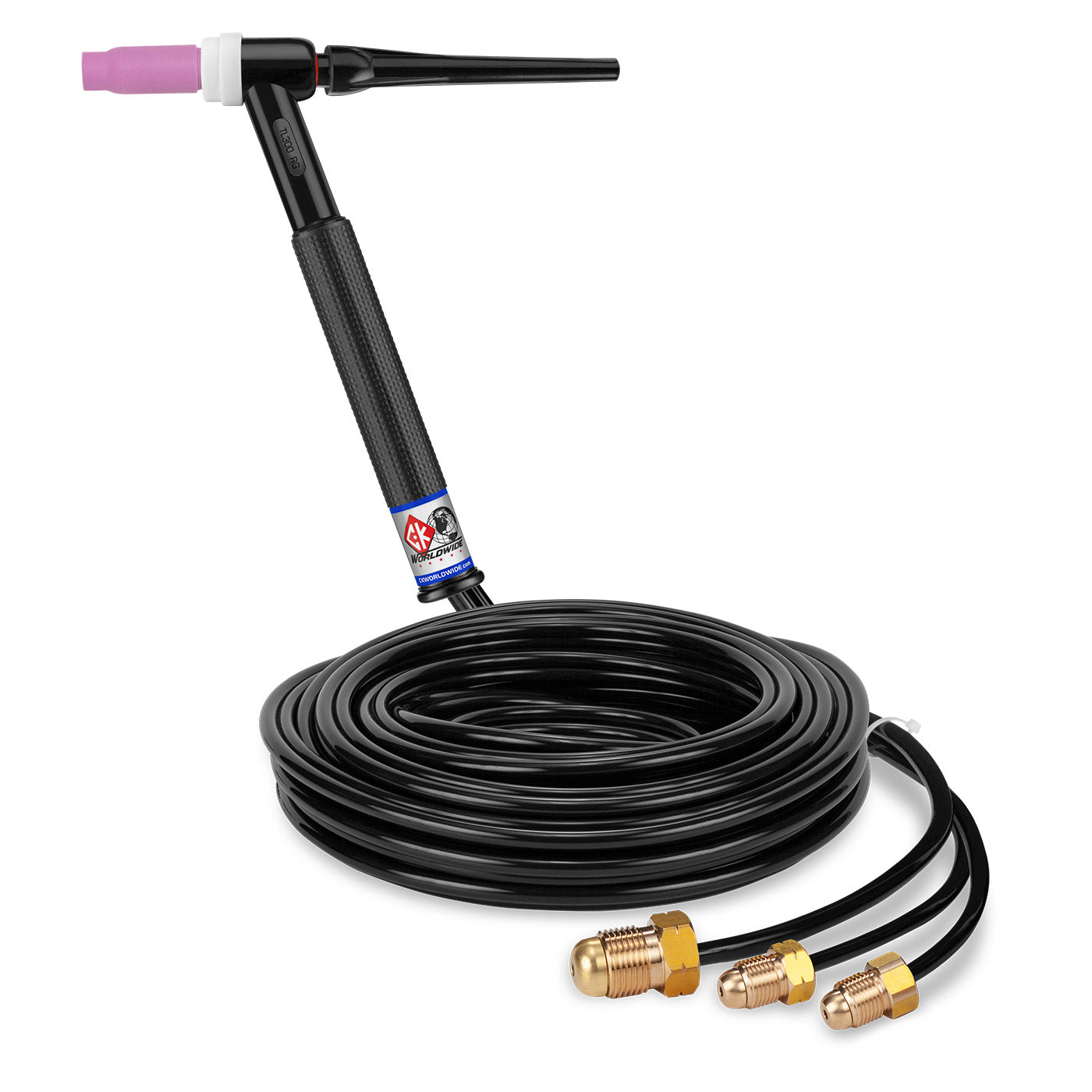

CK Worldwide TL325 350 Amp Water-Cooled TIG Torch, Rigid Head, 25' Trim-Line

The TL325 delivers 350 amp capacity at 100% duty cycle with water-cooled reliability for demanding TIG welding applications. This rigid head torch features CK's Trim-Line handle design for enhanced control and reduced operator fatigue during extended welding sessions.

Engineered for professional welders who demand consistent performance, this torch combines proven Max Flow cooling technology with standard 25-foot cables. The rigid head construction ensures stable arc positioning and precise bead placement, while the streamlined valve-free design simplifies operation and maintenance.

• 350 amp capacity — ACHF or DCSP at 100% duty cycle
• Water-cooled system — Max Flow technology for extended operating times
• Rigid head design — Superior arc stability and control
• 25-foot standard cables — 3-piece cable configuration
• Trim-Line handle — Ergonomic slim-grip design
• 8-inch overall length — Compact profile for tight spaces
• 5 oz weight — Balanced feel reduces operator fatigue

Compatible Consumables

• 300S — Short Back Cap
• 300M — Medium Back Cap
• 300L — Long Back Cap
• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3A5 — #5 Alumina Cup
• 3A6 — #6 Alumina Cup
• 3GL116 — 1/16" Gas Lens

Compatible with 3 Series consumables and accessories, this torch accommodates tungsten electrodes from 0.020" to 1/4" diameter. Ideal for fabrication shops, manufacturing facilities, and field welding operations requiring reliable high-amperage TIG welding capability.
