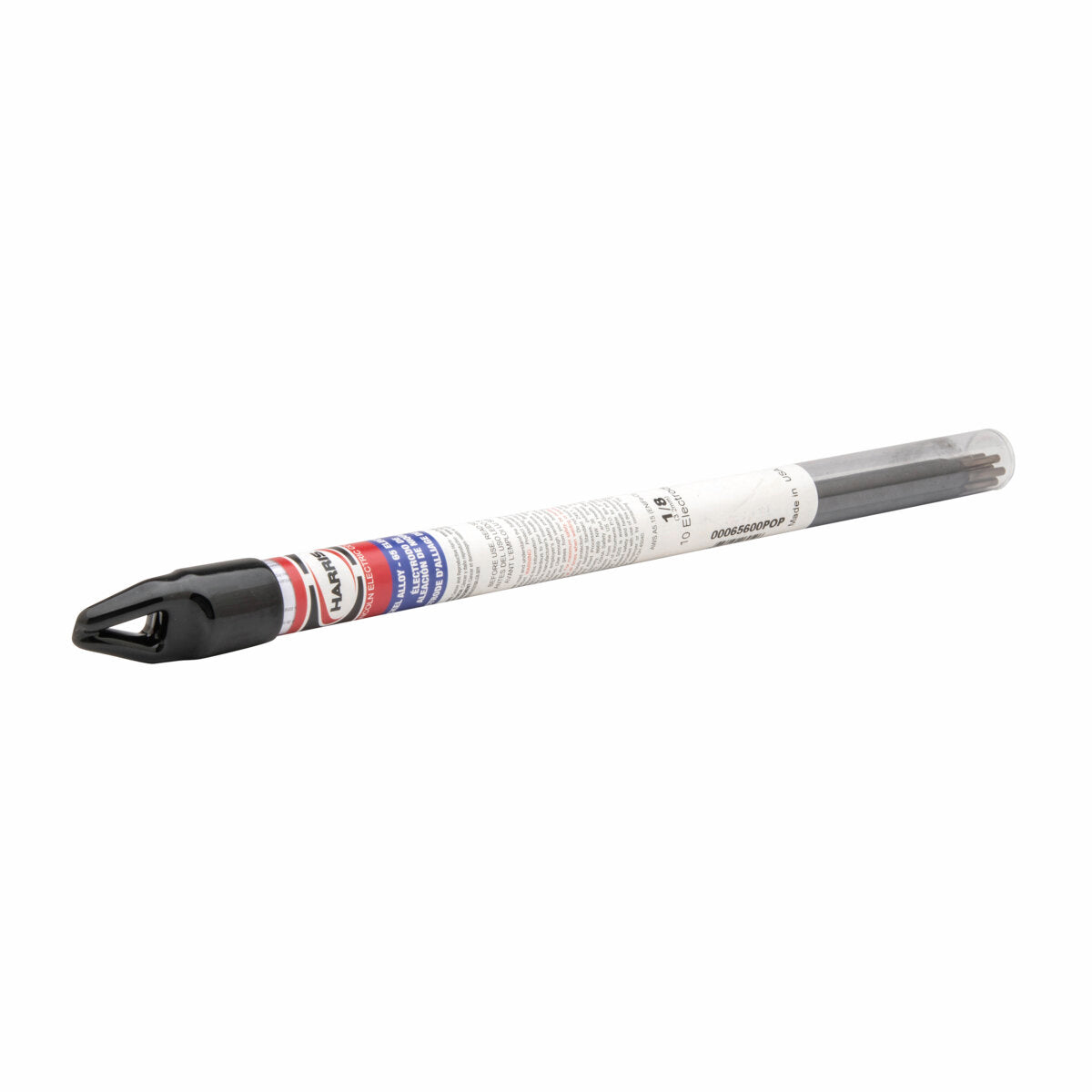

Harris® Alloy 65 Nickel-Iron Stick (SMAW) Electrode

Harris® 65 nickel iron electrode is a premium nickel-iron alloy electrode (AC-DC). For gray and alloyed cast iron. Harris® 65 is for the repair of all types of cast iron. It yields dense, strong, yet totally machinable deposits. It is ideal for the repair of meehanite, nickel-resistant, ductile iron and for the joining of cast iron to steel. Typical applications embody the repair of castings, housings, gear teeth, motor, machine bases, etc.

• Harris® Alloy 65 nickel iron stick (SMAW) electrode 1/8 x 14 in. x 4 ea. tube/box POP
• Harris® 65 nickel iron electrode is a premium nickel-iron alloy electrode (AC-DC). For gray and alloyed cast iron. Harris® 65 is for the repair of all types of cast iron. It yields dense, strong, yet totally machinable deposits. It is ideal for the repair of meehanite, nickel-resistant, ductile iron and for the joining of cast iron to steel. Typical applications embody the repair of castings, housings, gear teeth, motor, machine bases, etc.
• Premium nickel-iron electrode for welding gray and alloyed cast iron
• Spatter-free, high-density, ductile deposits
• This premium cast alloy is ideal for repair of all types of cast iron, meehanite, nickel-resistant, ductile iron, and joining cast iron to steel
• Good machinability
• Close color match to nickel
• First choice for ductility
• First choice for thick sections, but alternate choice for thin sections
• Good corrosion resistance
• All position welding
• Typical applications include repairs of all types of castings, housings, gear teeth, motor blocks and machine bases, etc.
• Harris® Alloy 65 nickel iron Stick (SMAW) electrode 1/8 x 14 in. x 4 ea. tube/box POP
• 1 Year
• Harris® 65
• Harris
• StickSMAW

• Alloy Type: CastIron
• Chemical Composition: Carbon 3.00-3.50%;Manganese 0.60-0.75%;Silicon 2.75-3.00%;Sulfur 0.10 % max.;Phosphorus 0.50-0.75%;Nickel 85% min.;Copper 2.5%;Aluminum 1.0;Others 1.0%
• Classification: Manufactured to Harris Products Group's internal engineering standards
• Color: Good color match to cast iron
• Diameter: 1/8 in (3.2 mm)
• Elongation: 22% min. (mechanical properties as welded)
• Material: Nickel Iron
• NSF Compliant: No
• RoHS Compliant: No
• Size: 4 ea. tube
• Tensile Strength (PSI): Up to 120,000 (mechanical properties as welded)
• Typical Application: Welding gray and alloyed cast iron;Repairing all types of cast iron;Welding cast iron to steel;Repair of castings, housings, gear teeth, motors, machine bases, etc.
• Yield Strength (PSI): Up to 85,000 (mechanical properties as welded)

What's Included: Harris® Alloy 65 nickel iron Stick (SMAW) electrode 1/8 x 14 in. x 4 ea. tube/box POP

Model Name: Harris® 65
