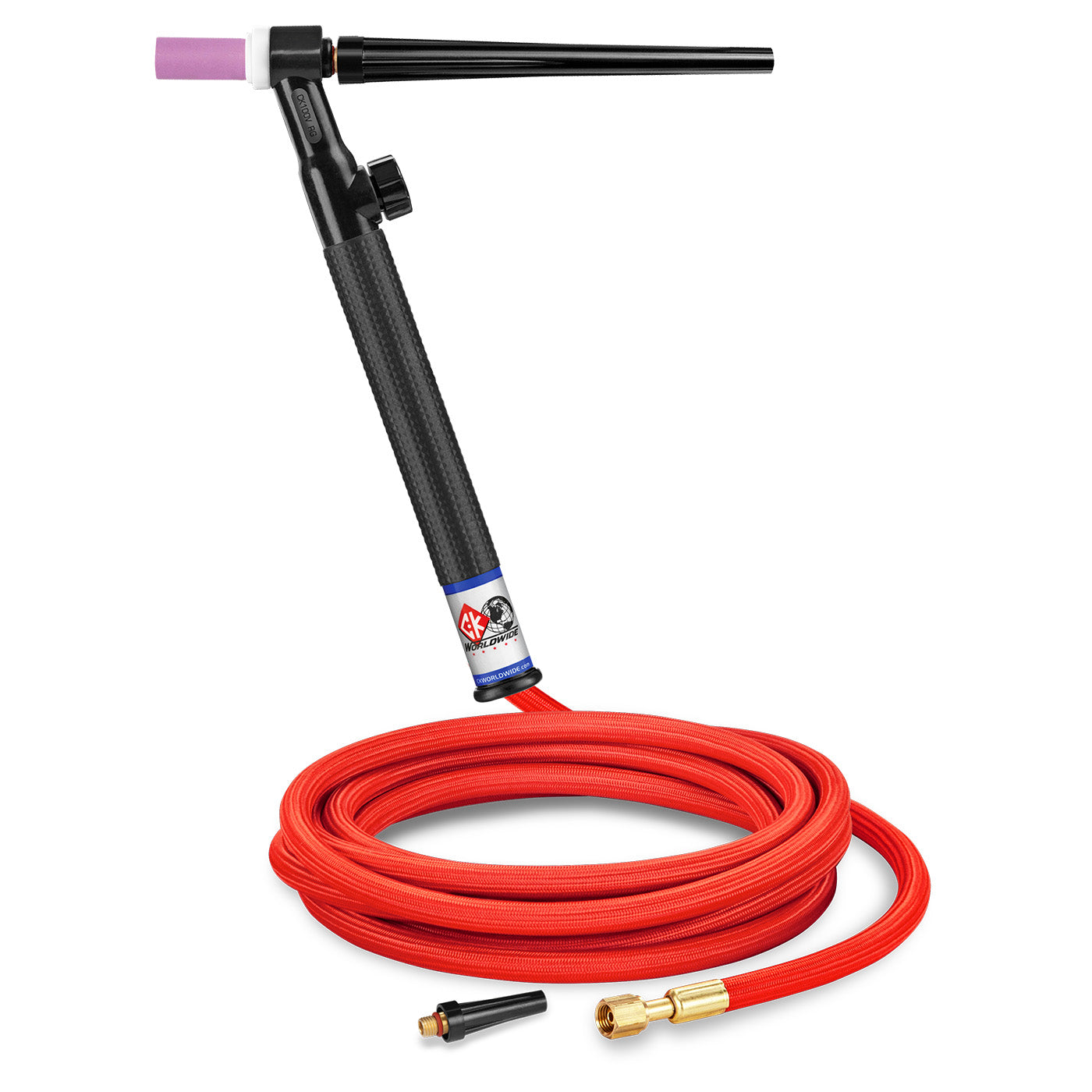

CK Worldwide CK112VHSF 125 Amp Gas-Cooled TIG Torch with Valve, Rigid Head, 12.5' SuperFlex Cable

The CK112VHSF delivers reliable 125-amp TIG welding performance with an integral gas valve for precise gas flow control during production welding. This gas-cooled torch features a rigid head design that eliminates deflection for consistent bead profiles on flat and angled joints.

Built for continuous operation at 125 amp @ 100% duty cycle, the CK112VHSF handles demanding fabrication schedules without thermal derating. The 12.5-foot SuperFlex cable provides exceptional flexibility and kink resistance in tight workspaces, while the gas-cooled design eliminates water cooling system maintenance requirements.

• 125 Amp @ 100% duty cycle — rated for continuous operation without thermal derating
• Rigid head design — minimizes deflection and improves weld bead consistency on flat and angled joints
• Integral gas valve — operator-mounted flow control on the handle eliminates the need for foot pedal gas adjustment
• Gas-cooled — no water cooling lines to maintain
• 12.5' SuperFlex cable — enhanced flexibility and durability for production environments

Compatible Consumables

• 2C40 — .040" (1.0mm) Collet
• 2C116 — 1/16" (1.6mm) Collet
• 2CB40 — .040" (1.0mm) Collet Body
• 2CB116 — 1/16" (1.6mm) Collet Body
• 2A4 — #4 (1/4" 6.4mm) Alumina Cup
• 2A5 — #5 (5/16" 8.0mm) Alumina Cup
• 2A6 — #6 (3/8" 9.6mm) Alumina Cup
• 200L — Long Backcap
• T0407GC2 — .040" (1.0mm) x 7" 2% Ceriated Tungsten
• T1167GC2 — 1/16" (1.6mm) x 7" 2% Ceriated Tungsten

The CK112VHSF is compatible with standard 2 Series consumables and works with AWS A5.12 tungsten electrodes. The integral valve design makes it ideal for applications requiring frequent gas flow adjustments without foot pedal operation.
