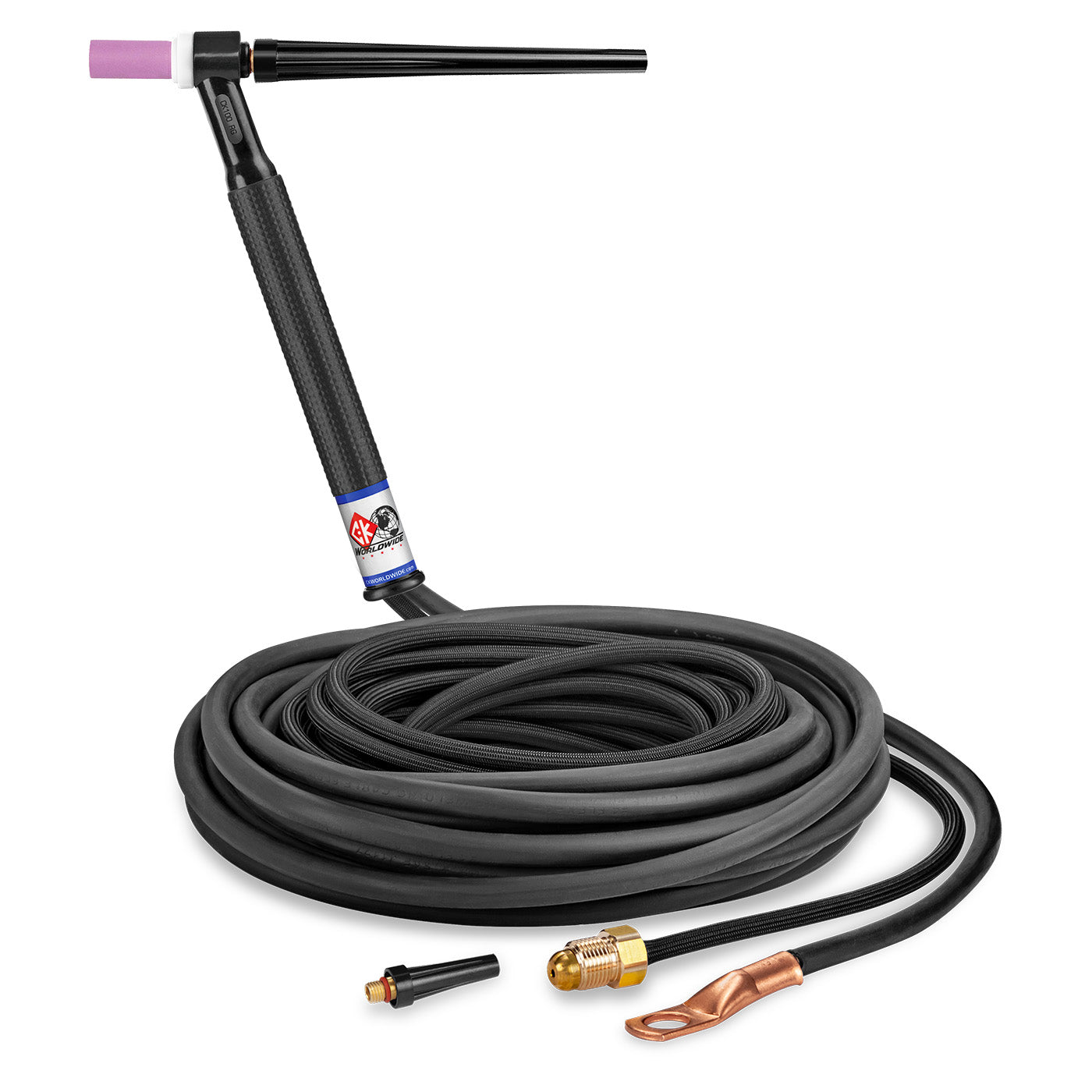

CK Worldwide CK125NSF 125 Amp Gas-Cooled TIG Torch, Rigid Head, 25' Superflex Cable

The CK125NSF delivers 125 amps at 100% duty cycle in a rigid-head design built for precision and consistency in production TIG work. Gas-cooled construction maximizes heat dissipation during extended welding sessions, while the rigid head ensures stable electrode positioning for tight welds and critical applications.

• 125 amp output at 100% duty cycle — run all day without thermal shutdown
• Rigid head design — maintains precise torch angle and arc stability
• Gas-cooled — superior heat management for high-production environments
• 25' Superflex cables — flexible movement around the workpiece

Compatible Consumables

• 2C40 — .040" (1.0mm) Collet
• 2C116 — 1/16" (1.6mm) Collet
• 2CB40 — .040" (1.0mm) Collet Body
• 2CB116 — 1/16" (1.6mm) Collet Body
• 2A4 — #4 (1/4" 6.4mm) Alumina Cup
• 2A5 — #5 (5/16" 8.0mm) Alumina Cup
• 2A6 — #6 (3/8" 9.6mm) Alumina Cup
• 200L — Long Backcap
• T0407GC2 — .040" (1.0mm) x 7" 2% Ceriated Tungsten
• T1167GC2 — 1/16" (1.6mm) x 7" 2% Ceriated Tungsten

Ideal for fabrication shops, production welding, and maintenance applications where consistent arc stability and thermal management are critical. Compatible with most standard TIG welding machines using gas-cooled torch connections.
