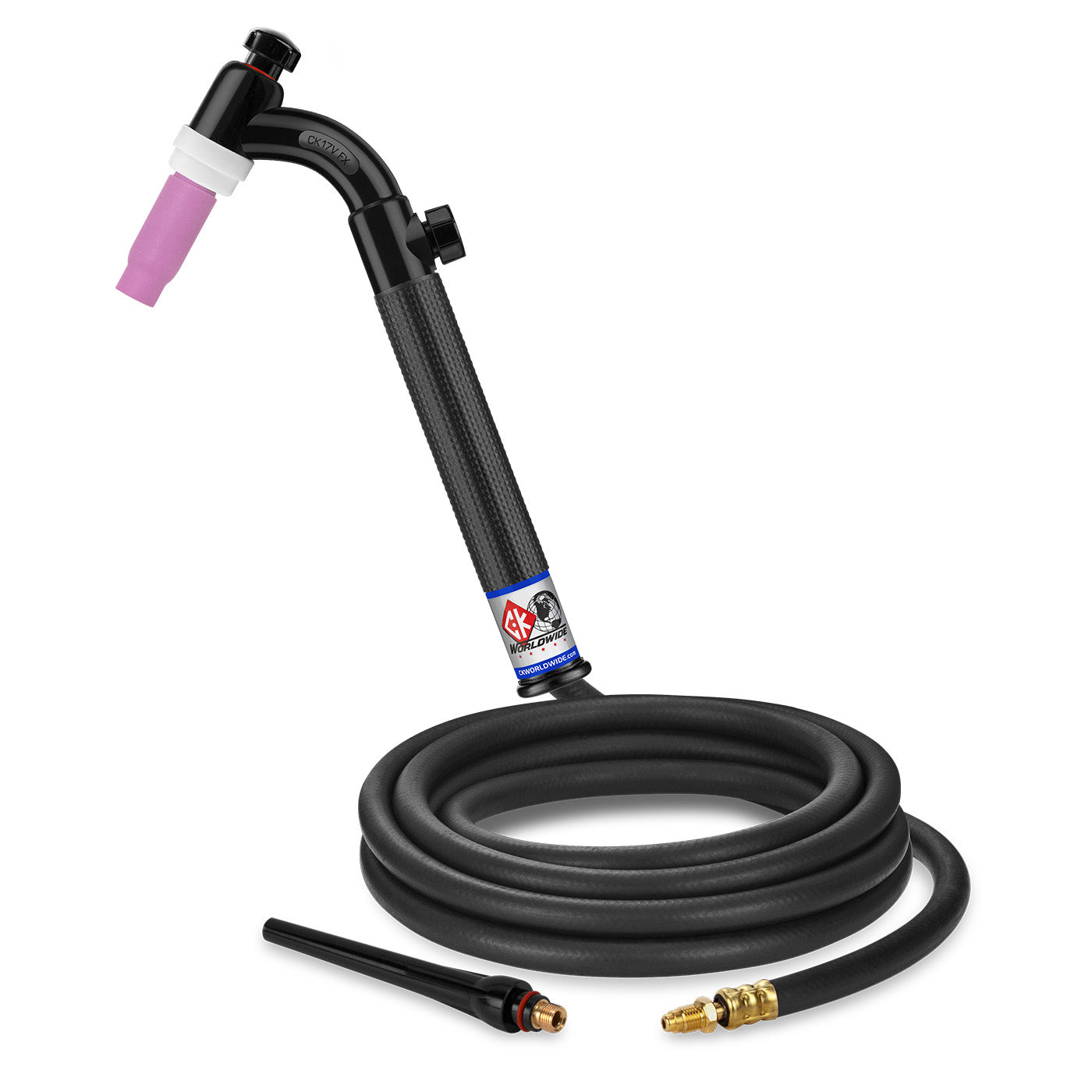

CK Worldwide CK17V-12-R FX 150 Amp Flex Head TIG Torch with Valve

The CK17V-12-R FX combines CK Worldwide's proven 150 amp capacity with advanced flex head technology and integrated valve control, delivering professional-grade precision for demanding TIG applications. This gas-cooled torch features 40-degree articulation in any direction and handle-mounted gas flow control for enhanced technique and accessibility.

• 150 amp rating — ACHF or DCSP at 100% duty cycle
• Flex head design — 40° articulation for enhanced access and positioning
• Built-in gas valve — Handle-mounted flow control for improved technique
• Gas-cooled operation — Optimized heat dissipation for extended welding sessions
• 12.5 ft cable length — One-piece construction for durability
• 3/8" x 32 thread pattern — Standard 3 Series consumable compatibility
• 8-3/4" overall length — Compact profile at 5 oz weight

Compatible Consumables

• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3C418 — 1/8" Collet
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3CB418 — 1/8" Collet Body
• 3A5 — #5 Alumina Cup
• 3A6 — #6 Alumina Cup
• 3A8 — #8 Alumina Cup
• 300S — Short Backcap

Built for professional welders and fabricators requiring precise gas control and enhanced maneuverability in tight spaces. The integrated valve eliminates the need for remote gas control while the flex head technology provides superior joint access compared to rigid torch designs.
