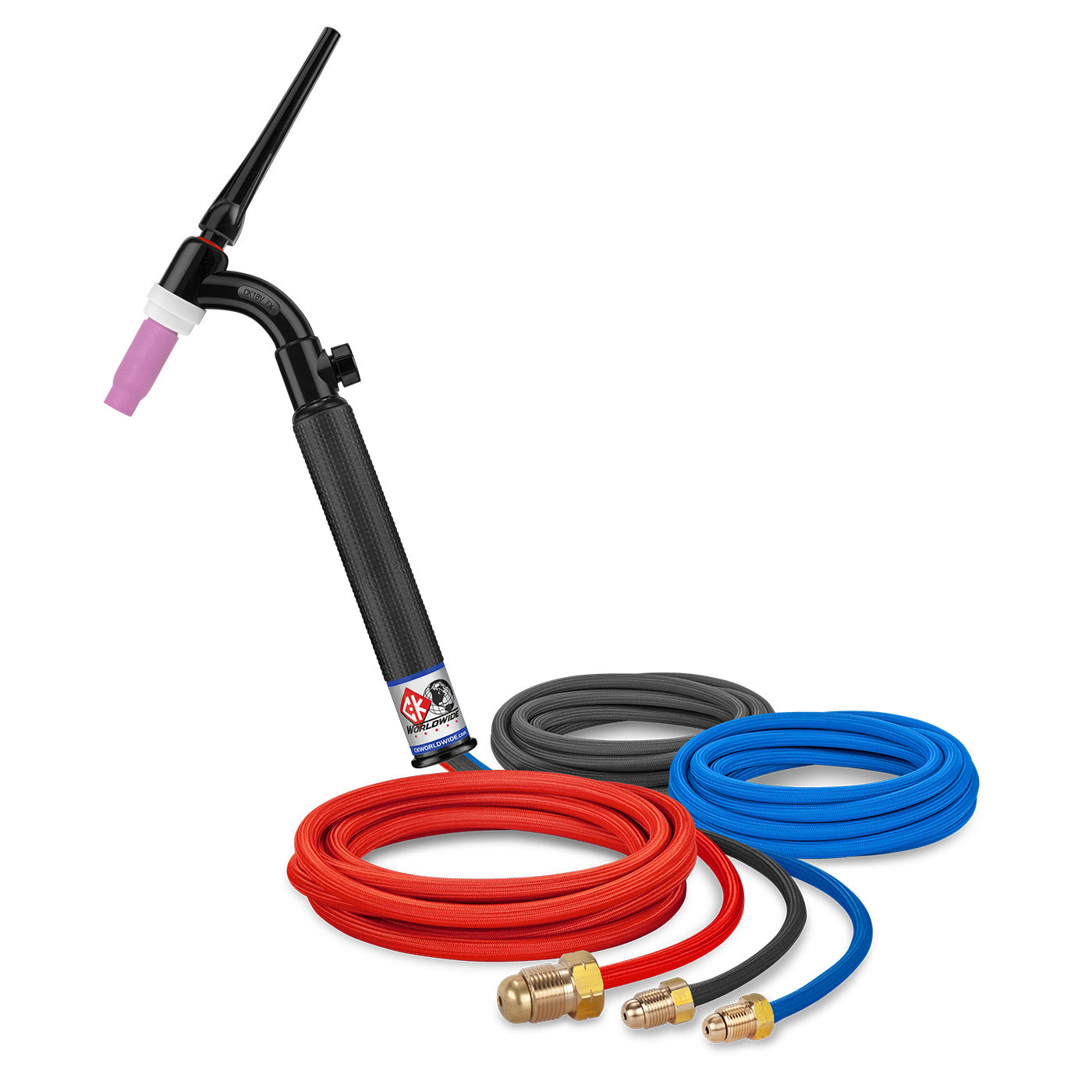

CK Worldwide CK18V-12SF FX 350 Amp Flex Head TIG Torch with Valve, Water-Cooled, 12.5

The CK18V-12SF FX delivers professional-grade TIG welding performance with 350 amp capacity at 100% duty cycle, featuring CK Worldwide's signature flex head design that articulates 40 degrees in any direction for superior joint access. This water-cooled torch combines an integral gas valve for precise flow control with Max Flow cooling technology and SuperFlex cables for enhanced operator comfort during extended welding sessions.

Engineered for demanding industrial applications, the CK18V flex head torch provides the maneuverability needed for complex fabrication work while maintaining the thermal management required for continuous high-amperage welding. The 3-piece cable assembly features SuperFlex construction for reduced weight and improved flexibility.

Key Specifications

• Amperage Rating: 350 amp AC high frequency or DC straight polarity at 100% duty cycle
• Flex Head Design: 40-degree articulation in all directions
• Cable Length: 12.5 feet (3.8m)
• Cable Type: 3-piece SuperFlex assembly
• Cooling Method: Water-cooled with Max Flow technology
• Gas Control: Integral valve for precise flow adjustment
• Overall Length: 9-1/2" (24.1cm)
• Weight: 6.5 oz (184gm)

Compatible Consumables

• 300S — Short Backcap
• 300L — Long Backcap
• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3C418 — 1/8" (3.2mm) Collet
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3CB418 — 1/8" (3.2mm) Collet Body
• 3A5 — #5 (5/16" 8.0mm) Alumina Cup
• 3A6 — #6 (3/8" 9.6mm) Alumina Cup

Compatible with CK Worldwide's complete line of 3 Series consumables and accessories, this torch integrates seamlessly with professional TIG welding systems requiring maximum flexibility and thermal capacity for critical fabrication work.
