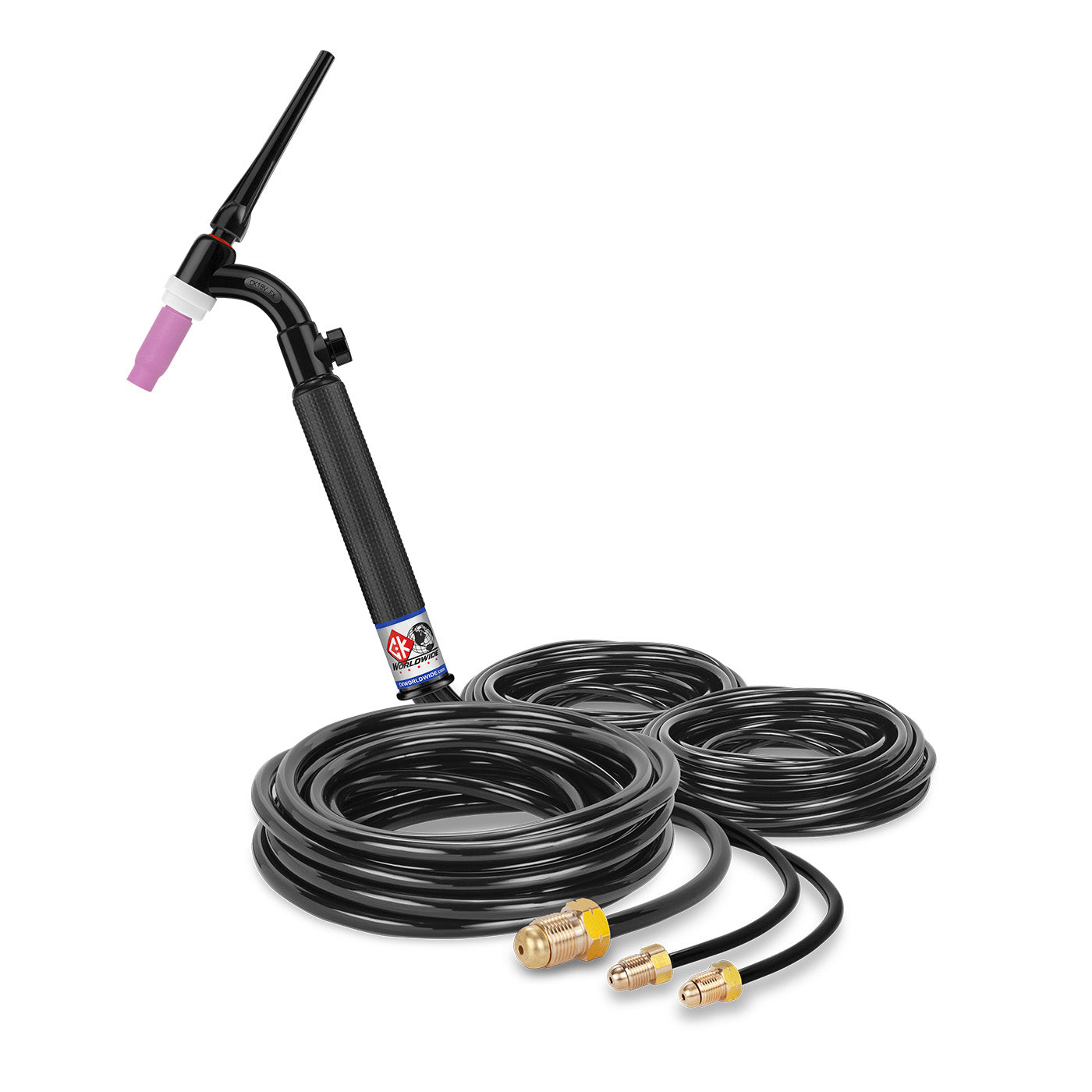

CK Worldwide CK18V-25-R FX 350 Amp Flex Head TIG Torch with Valve, Water-Cooled, 25 Foot

The CK18V-25-R FX delivers 350 amps at 100% duty cycle with CK Worldwide's signature flex head technology, providing 40 degrees of positioning versatility in any direction for enhanced access in tight welding joints. This water-cooled torch features integrated valve control for precise gas flow adjustment and 25-foot standard cables for excellent shop coverage.

• 350 amp rating at 100% duty cycle for continuous heavy-duty operation
• Flex head design with 40-degree articulation for superior torch positioning
• Integrated valve control on handle for precise gas flow adjustment
• Water-cooled construction with Max Flow technology for extended operation
• 25-foot standard cables provide excellent reach for most shop applications
• 3-piece cable design for flexibility and serviceability
• 9-1/2" overall length with 6.5 oz torch weight

Compatible Consumables

• 300S — Short Backcap
• 300L — Long Backcap
• 3C040 — .040" Collet
• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3CB040 — .040" Collet Body
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3A4 — #4 Alumina Cup
• 3A5 — #5 Alumina Cup

Compatible with AWS Class ACHF and DCSP power sources, this torch excels in demanding production environments requiring precise arc control and extended operating periods. The flex head design makes it ideal for complex fabrications where standard rigid torches cannot reach.
