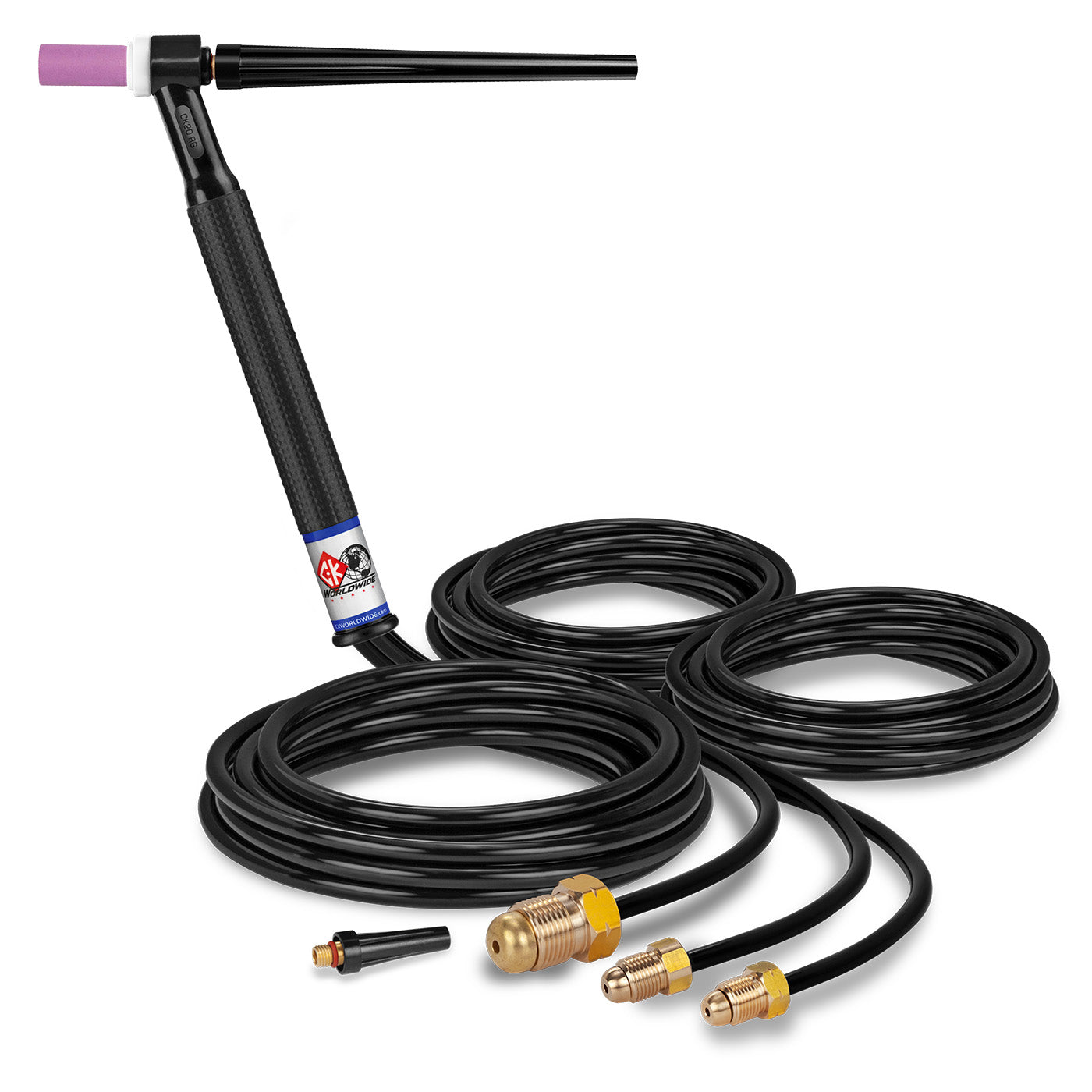

CK Worldwide CK20-12 250 Amp Rigid Head TIG Torch, Water-Cooled, 12.5' Cables

The CK Worldwide CK20-12 delivers 250 amp performance at 100% duty cycle with water cooling technology that maintains optimal operating temperatures during extended welding sessions. This rigid head torch provides the stability and precision needed for critical TIG applications where consistent arc control is essential.

Designed for AC high frequency or DC straight polarity welding, this professional-grade torch features Max Flow technology for superior heat management and a 12.5-foot standard cable length that provides generous reach for shop applications. The rigid head construction eliminates flex and movement, making it ideal for precision work requiring exact tungsten positioning.

• 250 amp rating at 100% duty cycle for continuous operation
• Water-cooled design with Max Flow technology for efficient heat dissipation
• Rigid head construction for maximum stability and arc control
• 12.5-foot cable length provides excellent reach and flexibility
• AC/DC compatibility for aluminum and steel applications
• 7.5-inch neck length with 3 oz balanced weight
• 3-piece cable design for durability and serviceability

Compatible Consumables

• 2A4 — #4 Alumina Cup
• 2A5 — #5 Alumina Cup
• 2A6 — #6 Alumina Cup
• 2A7 — #7 Alumina Cup
• 2A8 — #8 Alumina Cup
• 2C116 — 1/16" Collet
• 2C332 — 3/32" Collet
• 2CB116 — 1/16" Collet Body
• 2CB332 — 3/32" Collet Body
• 200L — Long Back Cap

Compatible with all CK 2 Series consumables and accessories, this torch is also known as the CK25 and CK200 models. The CK20-12 is engineered for fabrication shops, maintenance facilities, and production environments where consistent, high-amperage TIG welding performance is required.
