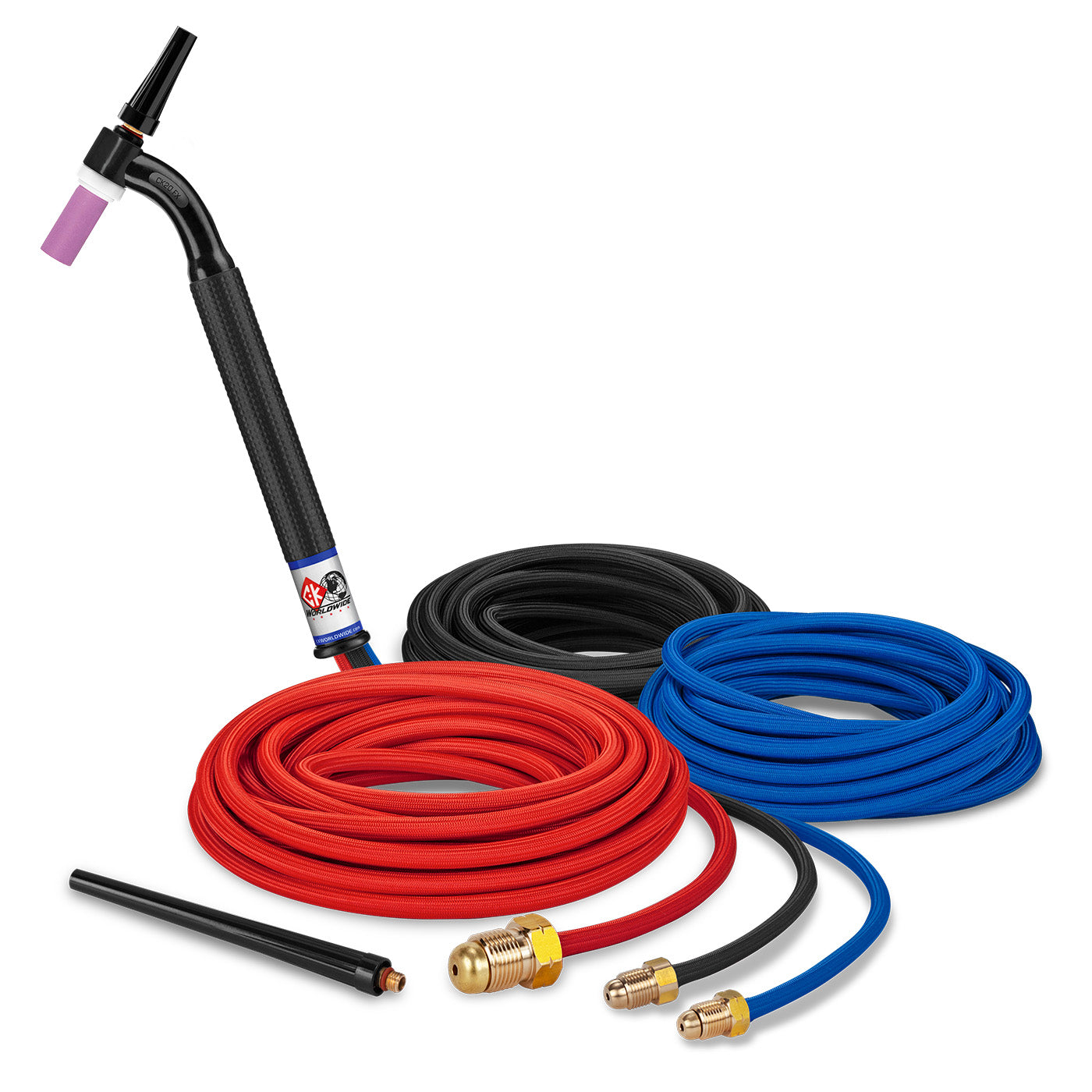

CK20-25 FX - CK Worldwide 250 Amp Flex Head TIG Torch, Water-Cooled, 25' Cable

The CK20-25 FX delivers precision TIG welding with a flexible head design that pivots 40 degrees in any direction, making it ideal for accessing tight joints and complex geometries in professional fabrication shops. This water-cooled torch handles 250 amperes at 100% duty cycle on both AC high frequency and DC straight polarity applications.

Built with CK Worldwide's Max Flow technology, the CK20-25 FX provides superior cooling performance for extended welding sessions on steel, stainless steel, and aluminum. The 25-foot cable length offers excellent reach for larger work areas while maintaining optimal power delivery and cooling flow.

• Flex head technology — 40-degree articulation for enhanced joint access
• 250 amp capacity at 100% duty cycle (ACHF or DCSP)
• Water-cooled design with Max Flow technology for extended operation
• 25-foot standard cable length for versatility in larger work areas
• 7-1/2" neck length with 3 oz weight for balanced handling
• 2 Series head accessories compatibility for cost-effective consumable replacement
• Three-piece cable construction for durability and flexibility

Compatible Consumables

• 2A4 — #4 (1/4") Alumina Cup
• 2A5 — #5 (5/16") Alumina Cup
• 2A6 — #6 (3/8") Alumina Cup
• 2A7 — #7 (7/16") Alumina Cup
• 2A8 — #8 (1/2") Alumina Cup
• 2C040 — .040" (1.0mm) Collet
• 2C116 — 1/16" (1.6mm) Collet
• 2C332 — 3/32" (2.4mm) Collet
• 2CB116 — 1/16" (1.6mm) Collet Body
• 200L — Long Back Cap

Perfect for production welding environments requiring precise control in confined spaces, the CK20-25 FX accepts all standard 2 Series consumables and accessories. The flexible head design eliminates the need for repositioning workpieces when welding complex assemblies or tight corner joints.
