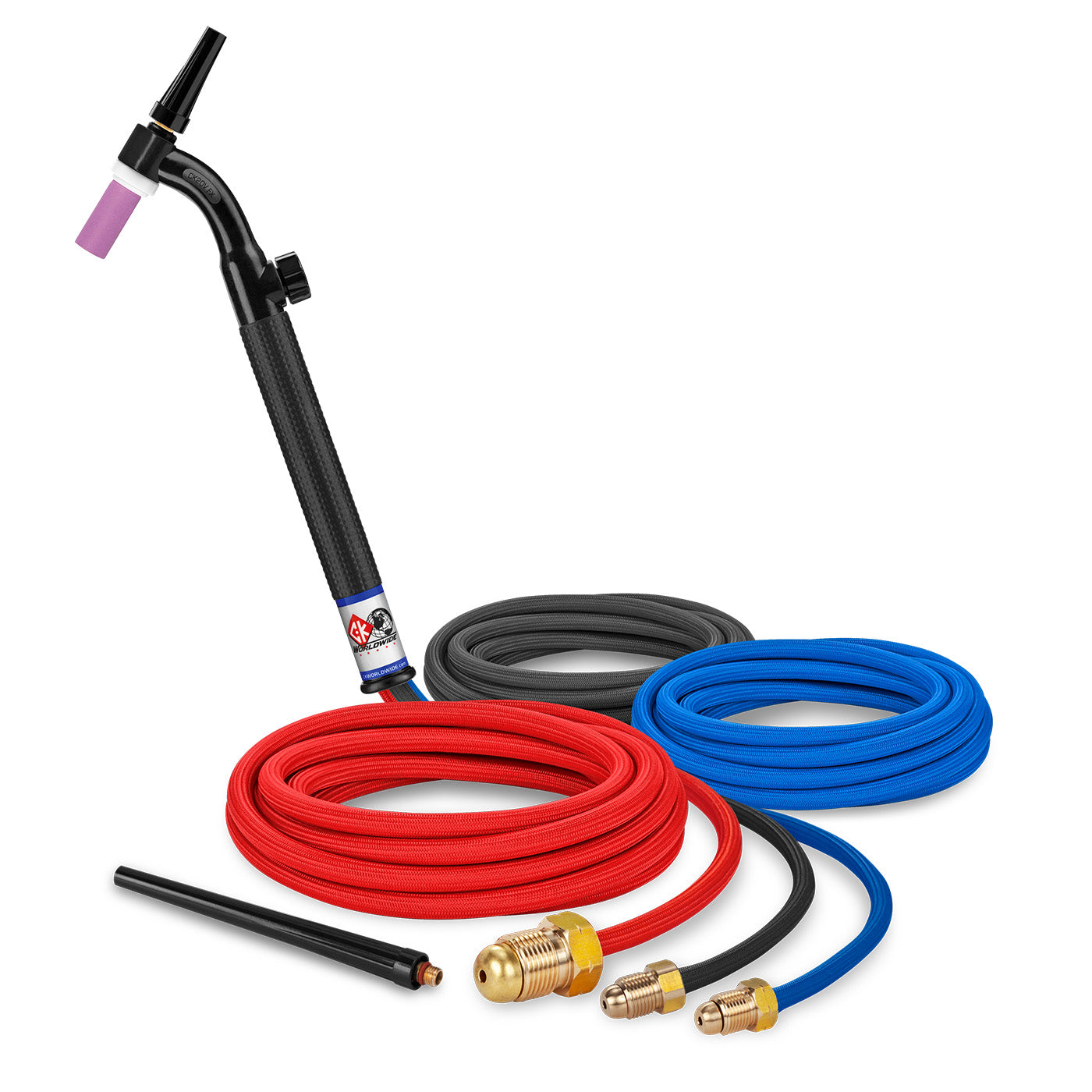

CK Worldwide CK20V-12SF FX - 250 Amp Flex Head TIG Torch with Valve, Water-Cooled, 12.5' SuperFlex Cable

The CK20V-12SF FX delivers precision TIG welding performance with 250 amp ACHF or DCSP capacity at 100% duty cycle, featuring CK Worldwide's signature flex head design that provides 40 degrees of positioning versatility in any direction for accessing tight welding spaces.

This water-cooled torch combines Max Flow technology for superior heat dissipation with integrated gas flow valve for on-handle control. The 12.5-foot SuperFlex cable construction enhances maneuverability without sacrificing durability, while the 3-piece cable design provides optimal reach for most welding applications. The flex head weighs just 3 oz (85gm) with a compact 7-1/2" (19.0cm) overall length.

• 250 amp ACHF or DCSP at 100% duty cycle
• Flex head design — 40-degree positioning in any direction
• Water-cooled with Max Flow technology
• Integrated gas valve for on-handle flow control
• SuperFlex cables — 12.5' length, 3-piece construction
• Lightweight head — 3 oz (85gm)
• 2 Series head accessories compatible
• 7-1/2" overall length for compact operation

Compatible Consumables

• 200L — Long Backcap
• 2C40 — .040" (1.0mm) Collet
• 2C116 — 1/16" (1.6mm) Collet
• 2CB40 — .040" (1.0mm) Collet Body
• 2CB116 — 1/16" (1.6mm) Collet Body
• 2A4 — #4 (1/4" 6.4mm) Alumina Cup
• 2A5 — #5 (5/16" 8.0mm) Alumina Cup
• 2A6 — #6 (3/8" 9.6mm) Alumina Cup
• T0407GC2 — .040" x 7" 2% Ceriated Tungsten
• T1167GC2 — 1/16" x 7" 2% Ceriated Tungsten

Compatible with CK20 and CK20V series accessories and ideal for precision welding applications requiring flexible positioning capabilities. Works with standard 2 Series consumables and replacement parts for maximum versatility in professional welding environments.
