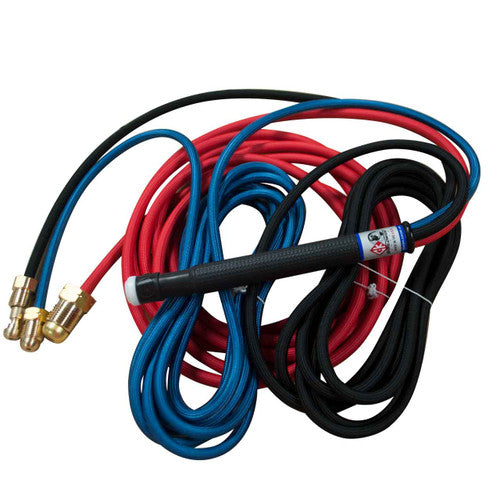

CK Worldwide CK20P-12SF 250 Amp Water-Cooled Pencil TIG Torch, 12.5' SuperFlex Cable

The CK Worldwide CK20P-12SF delivers precise TIG welding control with its rigid pencil-style head design, optimized for detailed work in confined spaces. This water-cooled torch handles 250 amps AC/DC at 100% duty cycle while maintaining exceptional maneuverability through its 12.5' SuperFlex cable assembly.

• 250 amp rating — AC high frequency or DC straight polarity at 100% duty cycle
• Water-cooled design — Features Max Flow technology for extended operation
• Rigid pencil head — 7.5" overall length provides precision control and access
• SuperFlex cables — 12.5' length with enhanced flexibility for demanding applications
• 3-piece cable assembly — Modular design for serviceability
• Lightweight construction — 3 oz torch head reduces operator fatigue
• 2 Series compatibility — Uses standard 2 Series consumables and accessories

Compatible Consumables

• 200L — Long Backcap
• 2C40 — .040" (1.0mm) Collet
• 2C116 — 1/16" (1.6mm) Collet
• 2CB40 — .040" (1.0mm) Collet Body
• 2CB116 — 1/16" (1.6mm) Collet Body
• 2A4 — #4 (1/4" 6.4mm) Alumina Cup
• 2A5 — #5 (5/16" 8.0mm) Alumina Cup
• 2A6 — #6 (3/8" 9.6mm) Alumina Cup
• T0407GC2 — .040" (1.0mm) x 7" 2% Ceriated Tungsten
• T1167GC2 — 1/16" (1.6mm) x 7" 2% Ceriated Tungsten

The CK20P-12SF pencil torch excels in precision TIG applications requiring tight access angles and detailed control. Compatible with CK 2 Series torch accessories and ideal for aerospace, fabrication, and maintenance welding where precision and accessibility are critical.
