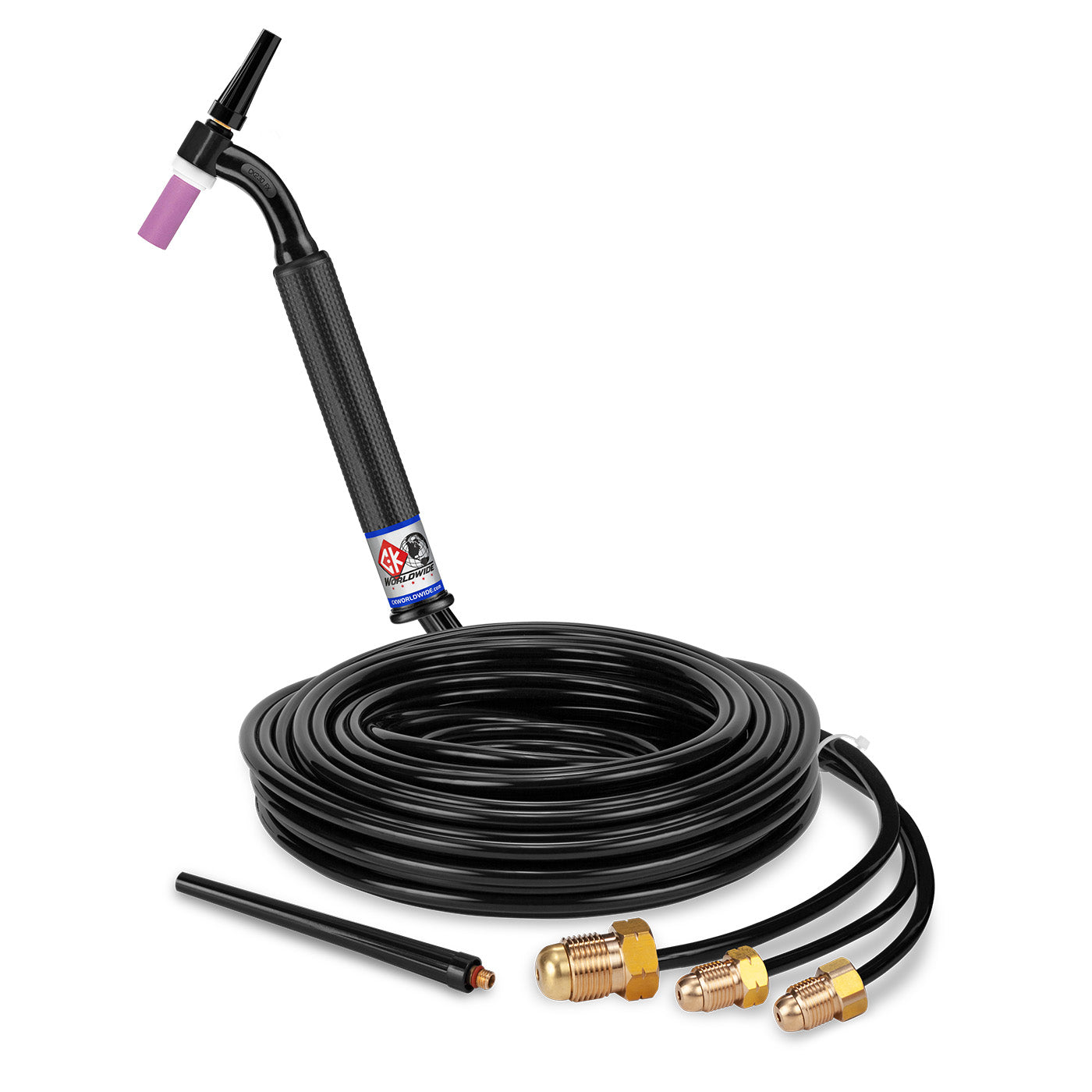

CK Worldwide CK2325 FX - 300 Amp Water-Cooled Flex Head TIG Torch, 25' Cable

The CK2325 FX delivers professional-grade TIG welding performance with CK Worldwide's signature flex head design, providing 40 degrees of articulation in any direction for superior access in confined spaces and awkward joint angles.

Built for demanding fabrication environments, this heavy-duty torch operates at 300 amp ACHF or DCSP @ 100% duty cycle with Max Flow water cooling technology. The streamlined design eliminates the gas valve to reduce weight and valve interference, weighing just 3-3/4 oz (106g) while maintaining an overall length of 8-1/4" (20.9cm).

• 300 amp capacity at 100% duty cycle (ACHF or DCSP)
• Water-cooled with Max Flow cooling technology
• 25-foot standard cables for extended reach
• Flex head design with 40° articulation in any direction
• 3-piece cable construction for maximum flexibility
• Valve-free design reduces weight and eliminates interference
• 8-1/4" overall length, 3-3/4 oz weight
• 2 Series head accessories compatibility

Compatible Consumables

• 200L — Long Backcap
• 2C40 — .040" (1.0mm) Collet
• 2C116 — 1/16" (1.6mm) Collet
• 2CB40 — .040" (1.0mm) Collet Body
• 2CB116 — 1/16" (1.6mm) Collet Body
• 2A4 — #4 (1/4" 6.4mm) Alumina Cup
• 2A5 — #5 (5/16" 8.0mm) Alumina Cup
• 2A6 — #6 (3/8" 9.6mm) Alumina Cup
• T0407GC2 — .040" x 7" 2% Ceriated Tungsten
• T1167GC2 — 1/16" x 7" 2% Ceriated Tungsten

This torch is compatible with CK's 2 Series head accessories and consumables, making it ideal for heavy-duty fabrication work requiring precise control in tight spaces. The water-cooled design ensures consistent performance during extended welding sessions on thick materials.
