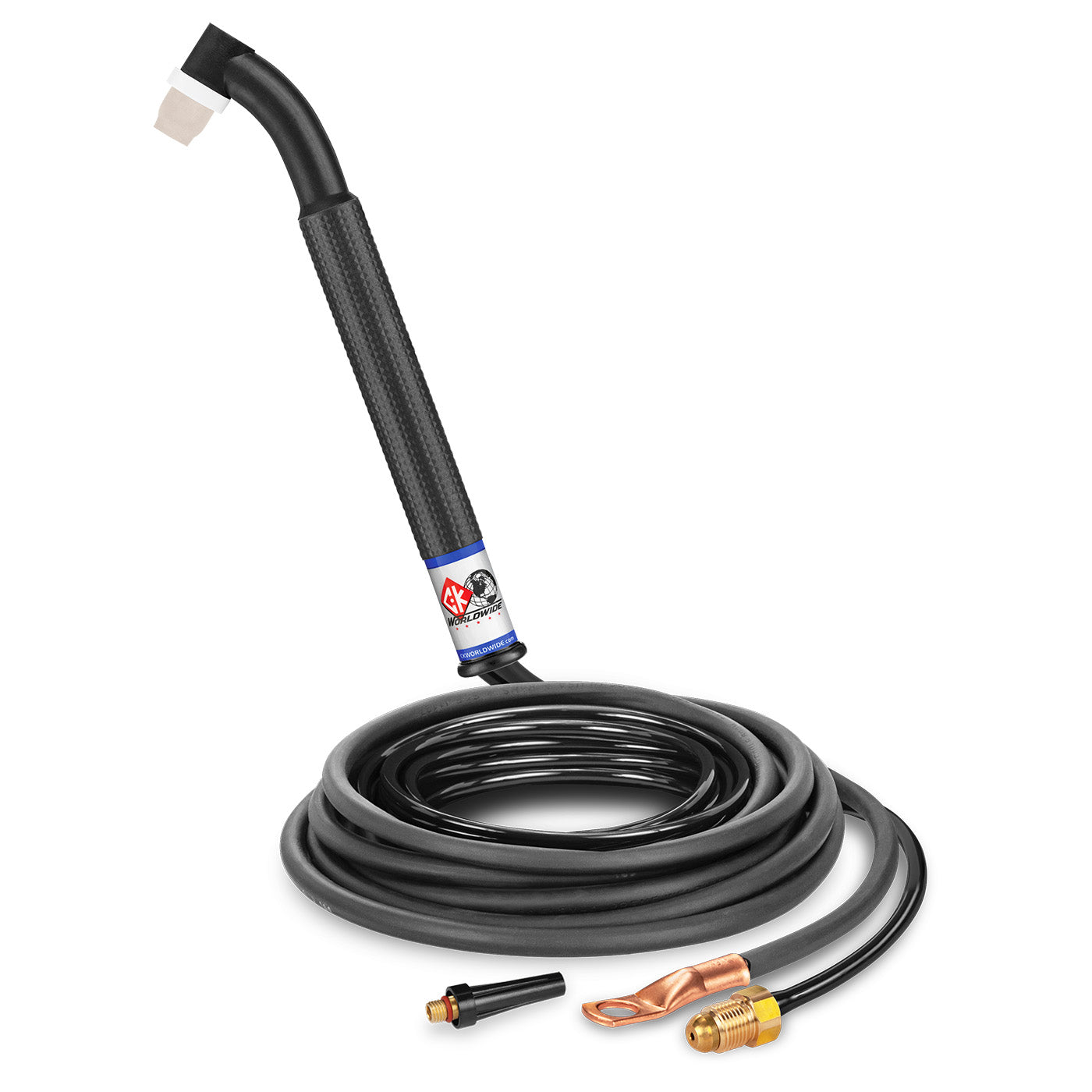

CK Worldwide CK24-12-2 FX 90 Amp Flex Head TIG Torch, Gas-Cooled, 12.5

The CK Worldwide CK24-12-2 FX delivers professional-grade TIG welding performance with 90 amp capacity at 100% duty cycle and signature flex head technology that provides 40 degrees of directional versatility for improved joint access in tight welding positions.

This gas-cooled torch features streamlined operation without a built-in valve, making it ideal for welders who prefer external gas control. The flex head design reduces operator fatigue during extended welding sessions while maintaining precise arc control. At just 2-1/4 oz (64gm), this torch offers excellent maneuverability for precision work in confined spaces.

• 90 amp capacity at 100% duty cycle (ACHF or DCSP)
• Flex head design with 40-degree articulation for enhanced access
• 12.5 ft (3.8m) standard cable length with 1-piece construction
• Gas-cooled operation eliminates coolant system complexity
• 8-1/4" (20.9cm) overall length for optimal balance
• Lightweight 2-1/4 oz (64gm) design reduces hand fatigue
• Compatible with 8 Series head accessories and consumables
• Standard thread pattern for universal compatibility

Compatible Consumables

• 8C40 — .040" (1.0mm) Collet
• 8C116 — 1/16" (1.6mm) Collet
• 8CB40 — .040" (1.0mm) Collet Body
• 8CB116 — 1/16" (1.6mm) Collet Body
• 8A4 — #4 (1/4" 6.4mm) Alumina Cup
• 8A5 — #5 (5/16" 8.0mm) Alumina Cup
• 8A6 — #6 (3/8" 9.6mm) Alumina Cup
• 2GL40 — .040" (1.0mm) Gas Lens
• 2GL116 — 1/16" (1.6mm) Gas Lens
• 80THS — Torch Heatshield

Ideal for fabrication work, maintenance welding, and applications requiring precise arc placement in restricted areas. The CK24-12-2 FX uses standard 8 Series consumables and is compatible with most TIG welding power sources featuring standard torch connections.
