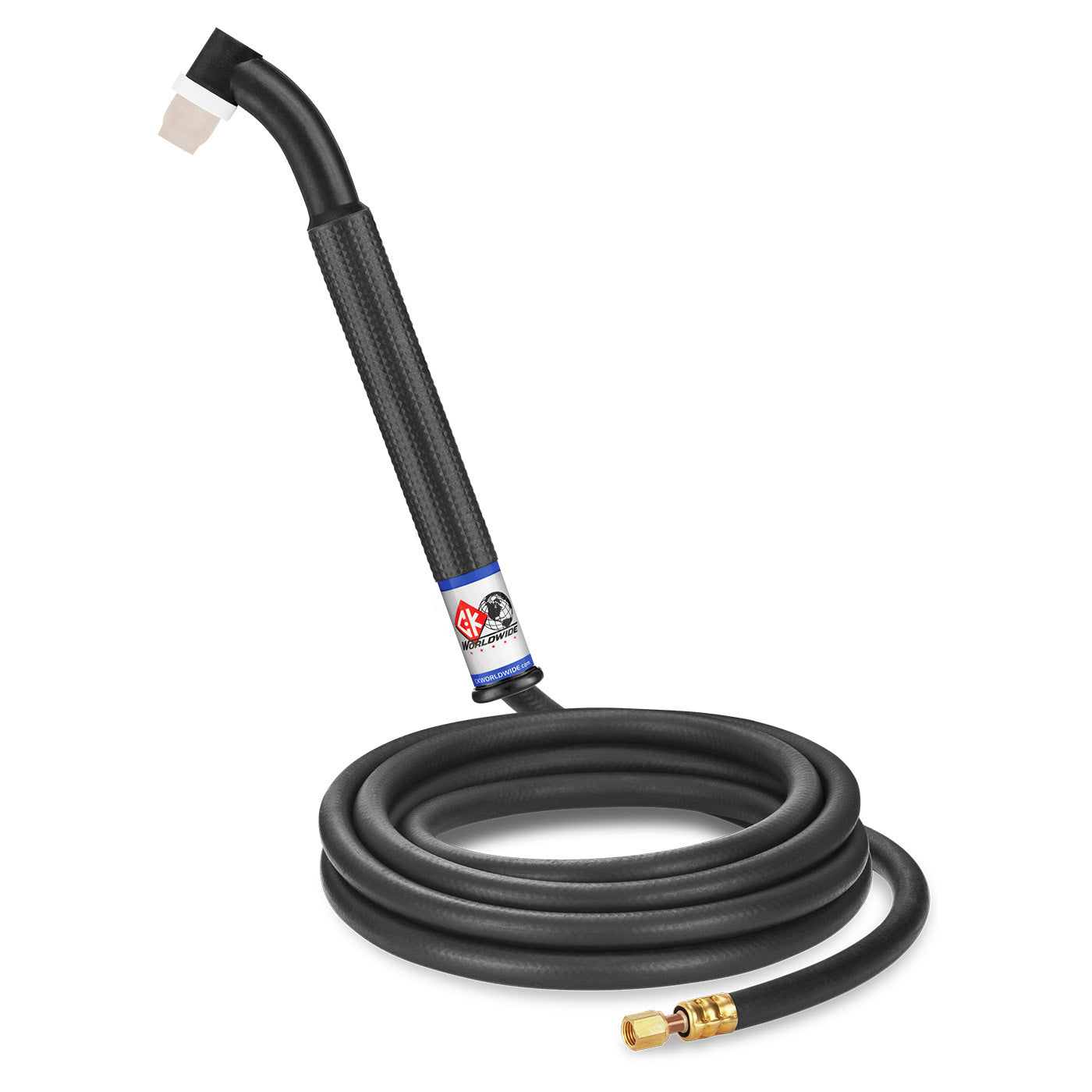

CK Worldwide CK24-12-R FX - 90 Amp Flex Head TIG Torch, Gas-Cooled, 12.5

The CK24-12-R FX delivers 90-amp capacity with CK Worldwide's signature flex head technology, allowing up to 40 degrees of articulation in any direction for precise torch positioning in tight spaces. This gas-cooled torch operates at 100% duty cycle on both AC and DC current, making it ideal for continuous production welding on aluminum, stainless steel, and carbon steel.

Built for demanding shop environments, this torch combines the maneuverability of a flex head with the reliability of gas cooling. The 12.5-foot cable length provides excellent reach while maintaining portability, and the robust construction ensures consistent performance in high-amperage applications.

• Current Rating: 90 amp AC/DC at 100% duty cycle
• Head Style: Flex head with 40-degree articulation
• Cooling: Gas-cooled for maximum portability
• Cable Length: 12.5 feet (3.8m) standard cables
• Overall Length: 8-1/4" (20.9cm)
• Weight: 2-1/4 oz (64gm)
• Thread Pattern: 3/8" x 32
• Compatibility: Uses 8 Series consumables

Compatible Consumables

• 8C40 — .040" (1.0mm) Collet
• 8C116 — 1/16" (1.6mm) Collet
• 8C332 — 3/32" (2.4mm) Collet
• 8CB40 — .040" (1.0mm) Collet Body
• 8CB116 — 1/16" (1.6mm) Collet Body
• 8CB332 — 3/32" (2.4mm) Collet Body
• 8A4 — #4 (1/4" 6.4mm) Alumina Cup
• 8A5 — #5 (5/16" 8.0mm) Alumina Cup
• 8A6 — #6 (3/8" 9.6mm) Alumina Cup
• 8GL332 — 3/32" (2.4mm) Gas Lens

The CK24-12-R FX works with standard 8 Series consumables and accessories, ensuring easy parts availability and compatibility with existing shop inventory. Perfect for fabricators who need precise torch control in confined welding spaces without sacrificing amperage capacity.
