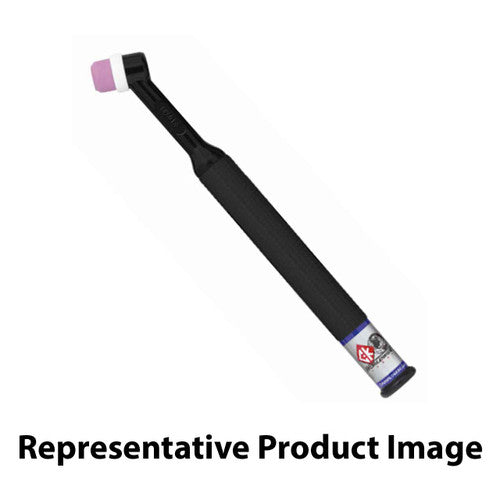

CK Worldwide CK24-12SF-CD 80 Amp Rigid TIG Torch - Gas Cooled, 12.5' SuperFlex Cable

The CK24-12SF-CD delivers 80-amp GTAW performance in a compact cut-down profile engineered for confined space welding applications. This gas-cooled rigid head torch maintains 100% duty cycle operation with premium Superflex cables that provide exceptional flexibility while retaining the stability needed for precision TIG work.

Built on CK Worldwide's proven 8 Series platform, this torch features a rigid head design that eliminates flex-induced arc wandering during critical welds. The gas-cooled system efficiently dissipates heat through optimized airflow, eliminating the complexity and maintenance requirements of water cooling systems. The cut-down profile reduces overall torch length while maintaining full amperage capacity.

• Amperage Rating: 80 amp AC/DC at 100% duty cycle
• Cable Length: 12.5 feet (3.8m) Superflex construction
• Head Style: Rigid cut-down profile
• Cooling: Gas-cooled design
• Weight: 2.25 oz (64g) torch head
• Overall Length: 8.25 inches (20.9cm)
• Thread Pattern: 3/8" x 32 standard
• Cable Type: One-piece Superflex with integrated connections

Compatible Consumables

• 8C116 — 1/16" Collet
• 8C332 — 3/32" Collet
• 8CB116 — 1/16" Collet Body
• 8CB332 — 3/32" Collet Body
• 8A4 — #4 Alumina Cup
• 8A5 — #5 Alumina Cup
• 8A6 — #6 Alumina Cup
• 8GL116 — 1/16" Gas Lens
• 8GL332 — 3/32" Gas Lens
• 80THS — Standard Heatshield

Compatible with all standard 8 Series consumables and accessories, this torch integrates seamlessly with existing CK welding systems. The cut-down design makes it ideal for automotive repair, maintenance welding in tight machinery spaces, and precision fabrication work where access is limited.
