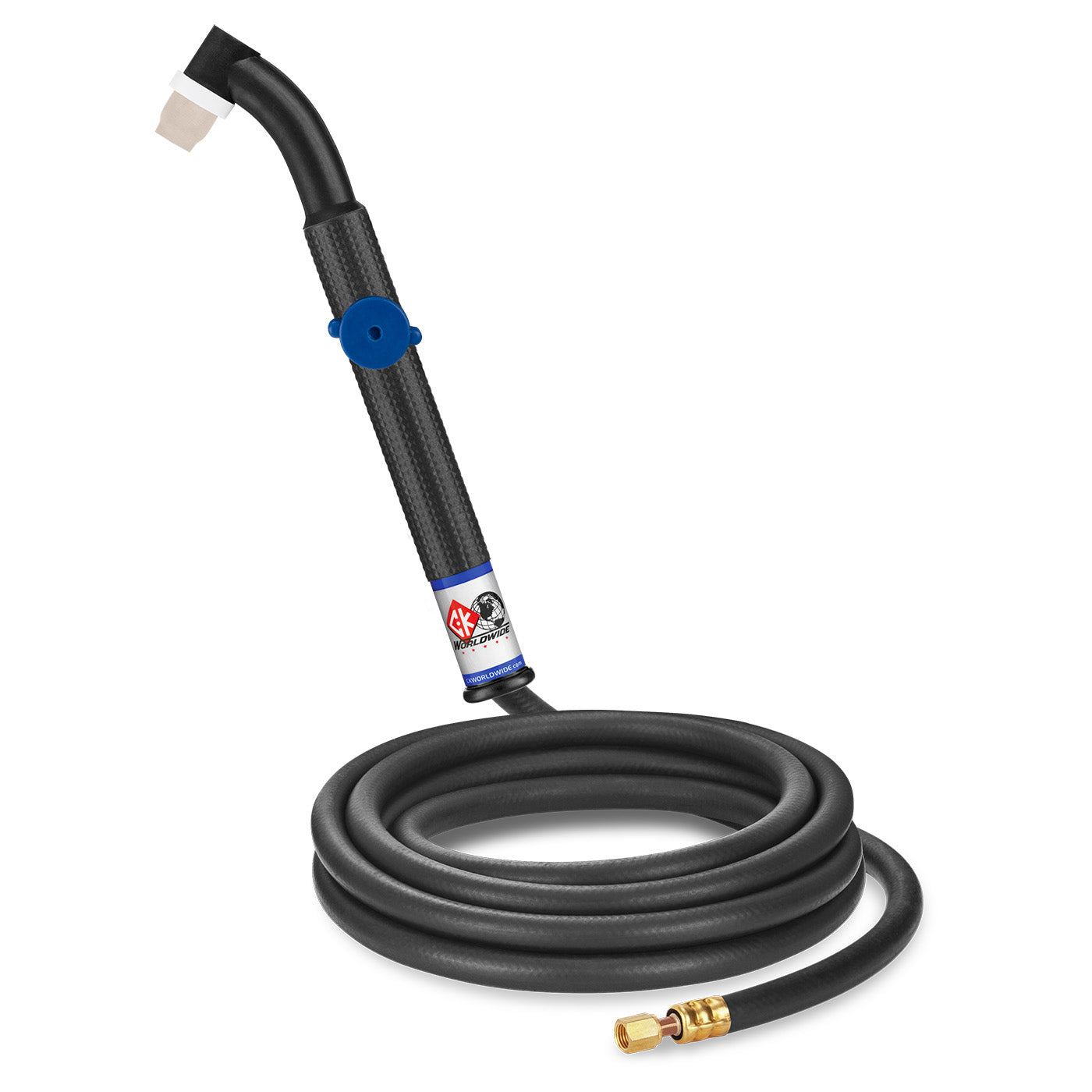

CK Worldwide CK24V-12-R FX 90 Amp Flex Head TIG Torch with Valve, Gas-Cooled, 12.5

The CK24V-12-R FX delivers precision TIG welding with 90-amp capacity at 100% duty cycle, featuring an integrated gas valve and flexible head design that articulates 40 degrees in any direction. Built for demanding shop environments, this gas-cooled torch provides enhanced operator control through valve-controlled gas flow and superior access in tight spaces.

• 90-amp capacity at 100% duty cycle on AC or DCSP
• Flex head design provides 40-degree articulation in any direction
• Integrated gas valve on handle for precise flow control
• Gas-cooled construction for maximum heat dissipation
• 12.5-foot standard cable with one-piece configuration
• Super-Flex cable option available for enhanced flexibility
• Compatible with 2 Series consumables for wide parts availability
• Lightweight design at 2-1/4 oz (64gm) for reduced operator fatigue

Compatible Consumables

• 200L — Long Back Cap
• 2C40 — .040" (1.0mm) Collet
• 2C116 — 1/16" (1.6mm) Collet
• 2CB40 — .040" (1.0mm) Collet Body
• 2CB116 — 1/16" (1.6mm) Collet Body
• 2A4 — #4 (1/4" 6.4mm) Alumina Cup
• 2A5 — #5 (5/16" 8.0mm) Alumina Cup
• 2A6 — #6 (3/8" 9.6mm) Alumina Cup
• 24HVF — Valved Flex Handle
• 100VK — Replacement Valve Kit

This torch uses the same consumables as CK80 and CK90 models, ensuring consistent parts inventory across your shop. The flex head design excels in aerospace fabrication, pipe welding, and other applications requiring precise torch positioning in confined spaces.
